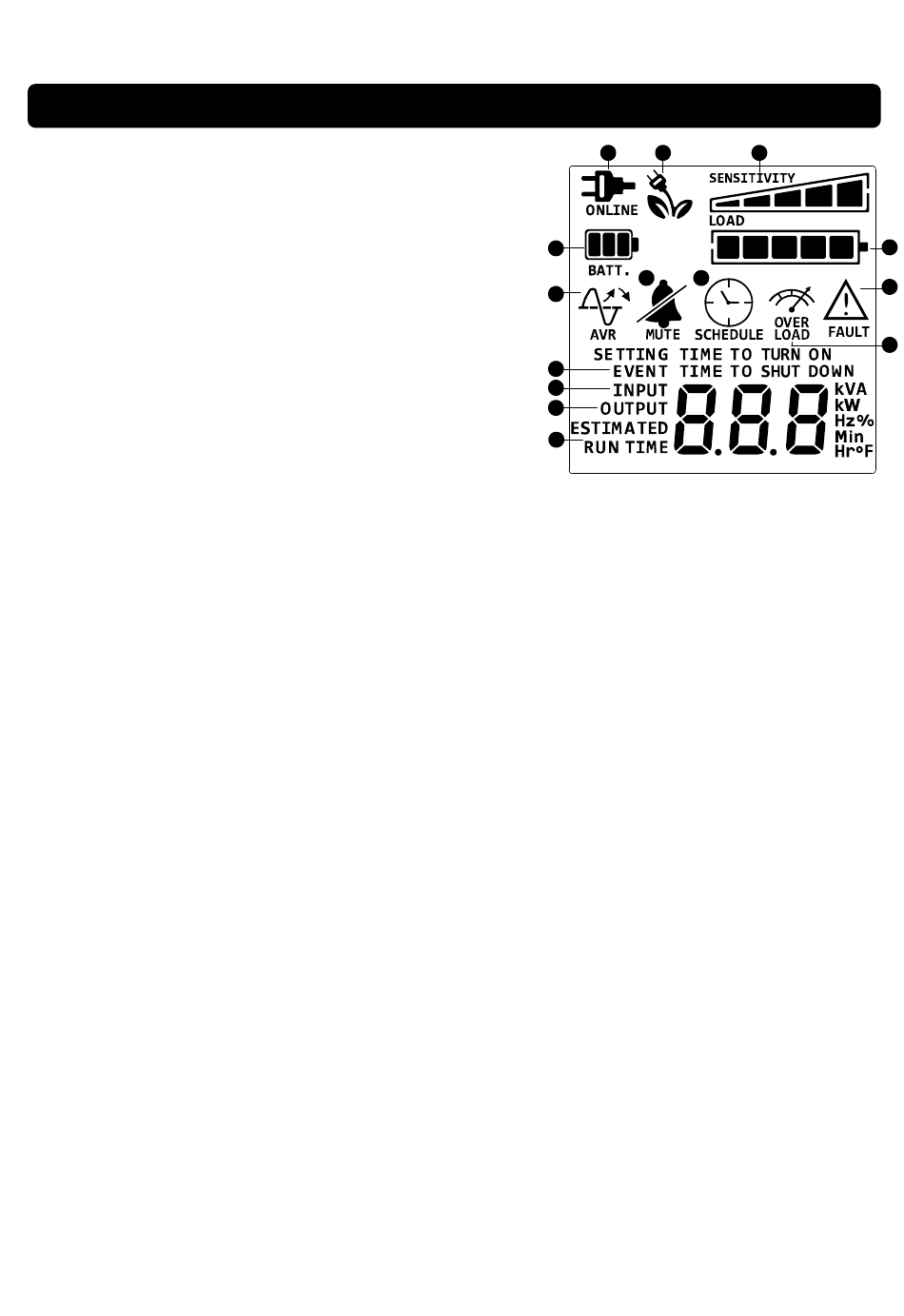

DEFINITIONS FOR ILLUMINATED LCD INDICATORS
1. ONLINE: The UPS is supplying utility power to connected
equipment.
2. BATTERY: During a severe brownout or blackout, this
icon appears and an alarm sounds (two short beeps
followed by a pause) to indicate the UPS is operating
from its internal batteries. During a prolonged brownout
or blackout, the alarm will beep rapidly every 1/2 second
(and the BATT.CAPACITY meter shows one 20%
capacity segment shaded. The capacity depends on how
much load added and the runtime left.) to indicate the
UPS's batteries are nearly out of power. You should
save files and turn off your equipment immediately or
allow the software to shut the system down.
3. Energy-Saving: The UPS in energy-saving bypass
mode. When the utility power is normal and the battery is
fully charged, the UPS will go into energy-saving bypass mode automatically. See "CyberPower
GreenPower UPSTM Technology" section for more information.
4. LOAD capacity / Sensitivity setup: This meter displays the approximate output load level (in 20%
increments) of the UPS battery outlets. It can also be sensitivity setup meter if you are in Setup
mode. It is to control the sensitivity of the UPS to switch to Battery Mode by selecting UPS
shutdown voltage range. When the sensitivity is increased, the UPS will switch to Battery Mode
with less input power variation.
5. BATTERY capacity: This meter displays the approximate charge level (in 20% increments) of the
UPS's internal battery. During a blackout or severe brownout, the UPS switches to battery power,
the BATTERY icon appears, and the charge level decreases.
6. FAULT: This icon appears if there is a problem with the UPS. Press the POWER button to turn off
the UPS.
F01: Battery Mode or AC/Utility Power Mode Overload fault (Shut off non-essential equipment. If
this solves the overload problem, the UPS will transfer to normal operation.)
F02: Battery Output Short fault (The connected equipment may have problems, please remove
them and check again.)
F03: Charger Fault (Contact CyberPower Systems for support.)
F04: Internal Fault (Contact CyberPower Systems for support.)
F05: Fan Abnormal (Contact CyberPower Systems for support.)
7. OVER LOAD: This icon appears and an alarm sounds to indicate the battery-supplied outlets are
overloaded. To clear the overload, unplug some of your equipment from the battery-supplied
outlets until the icon turns off and the alarm stops.
8. SCHEDULE: Users can setup the schedule to turn on and shut down the computer and UPS
through PowerPanel® Personal Edition software. The LCD display will show how much time is left
before the UPS will turn back on or shut down.
9. ESTIMATED RUNTIME: This displays the run time estimate of the UPS with current battery
capacity and load.
10. OUTPUT meter: This meter measure, in real time, the AC voltage that the UPS system is providing
to the computer, such as normal AC line mode, AVR mode, and battery backup mode. (Note: The
OUTPUT meter shows the status of the battery backup outlets in terms of load, frequency, and
voltage.)
