KWC MURANO Montage- Und Serviceanleitung Seite 3

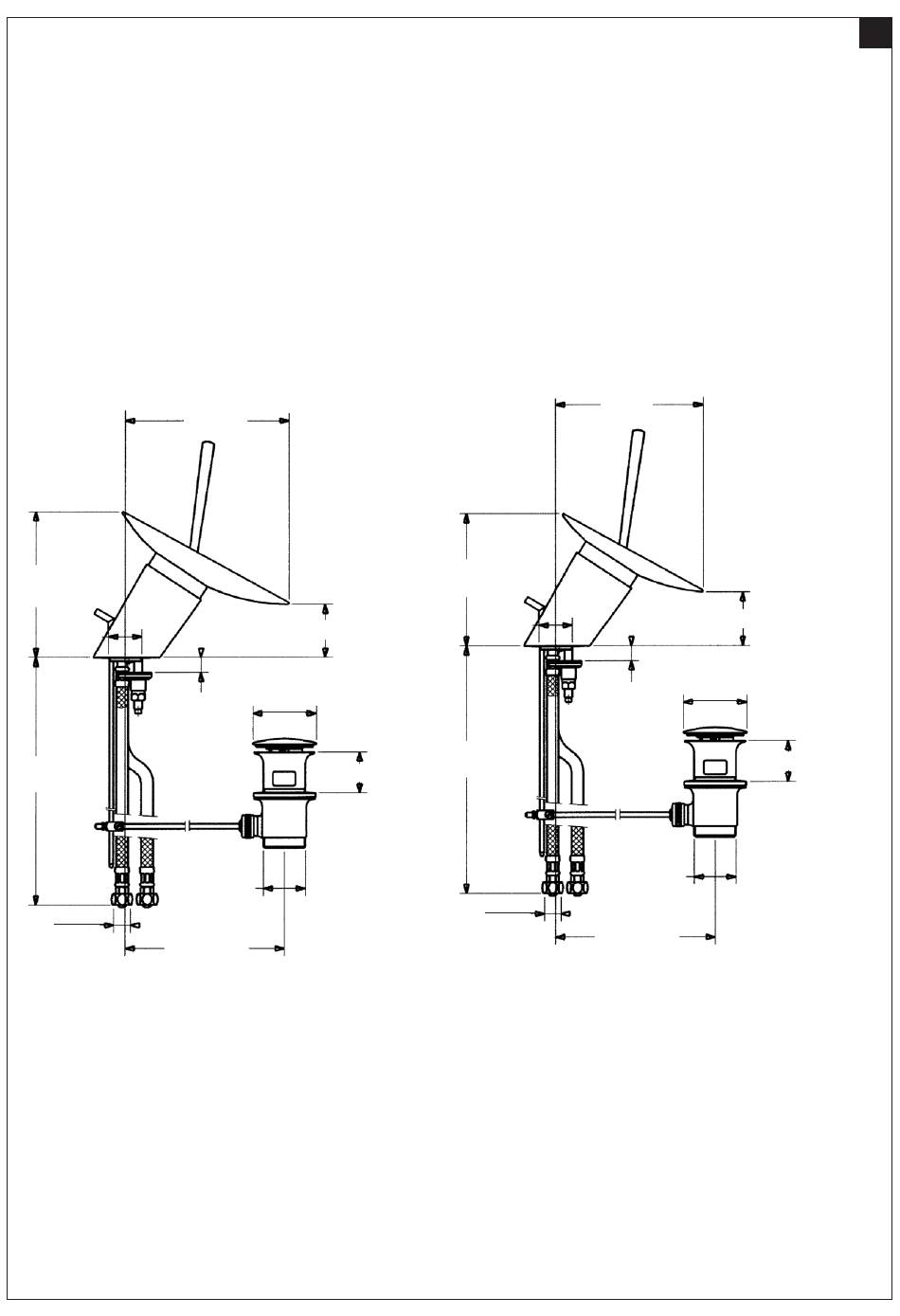

Masse
Dimensions
Dimensioni
Dimensiones
Dimensions
12.821.043.070 A=164
144
5 43/64"
ø 33.5
ø 1 5/16"
370
20 25/32"
G 3/8
max. 180
9/16" - 24 UNEF
7 3/32"
164
6 29/64"
53 / 2 3/32"
4-40
5/32"-1 37/64"
ø 63
ø 2 31/64"
35-50 / 1 3/8"-1 31/32"
G 1 1/4
12.821.042.070 A=147
13.821.042.070 A=147
147
5 25/32"
131
5 5/32"
370
20 25/32"
G 3/8
max. 180
9/16" - 24 UNEF
7 3/32"
53 / 2 3/32"
4-40
5/32"-1 37/64"
ø 63
ø 2 31/64"
35-50 / 1 3/8"-1 31/32"
G 1 1/4
