CMS-10R Installation Guide
Before following this guide, please read the short instruction of the CMS-10R.
Detailed information can be found in the user manual at
comatreleco.com/en/service-and-support/downloads-de/betriebsanleitungen/
Or contact ComatReleco AG:
Tel. +41 31 838 55 77, e-mail: support@comatreleco.com
11 14 1
1
3
I1 I2
2G 3G 4G
USB
O1 O2 O3 O4
CMS-10R...
10
13
14 12 11 24 22 21 34 32 31 44
O1 O2 O3 O4
12

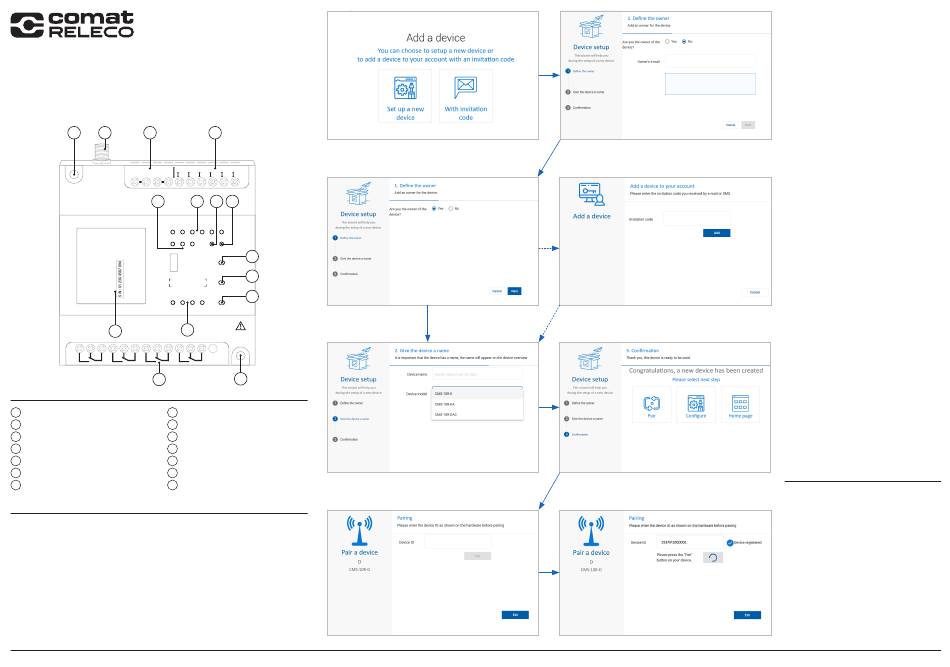

Part description
Device power supply «Test» Button
1 8
2 Inputs digital 9 «Reset» Button
3 Status LEDs wireless signal 10 Status-LEDs inputs
4 Status LEDs inputs 11 Holes for wall mounting
«RUN» LED 12 Relay outputs
5
«STAT» LED 13 Serial number
6
«Pair» Button Antenna
7 14
Installation
1. Create Your user account at iot.comatreleco.com
Important: Fill in all mandatory fields (*) according to the registration form
Important: We suggest the following web browsers: Google Chrome and Mozilla Firefox.
Important: The account must be confirmed by email to complete the registration.
Important: The password shall not be reset before registration has been completed. This
means that during the registration You must enter the verification code received by e-mail
before changing the password.
Important: ComatReleco sends SMS messages with the number +41 79 8075 554.
We recommend to save this number with the name CoReM under your contacts.
Important: Download the "ComatReleco-IoT-Portal" app from the App Store for iOS / Google
Play for Android.
2. Set up the device via the «Add a device» button. Configure and pair the device.
45013-050-54-001
2
2 3 4 5 6
4 5 6
I3 I4 I5 I6
RUN STAT
7
Pair
8
Test
9
Reset
42 41
11
ComatReleco AG | Bernstrasse 4 | CH-3076 Worb | Phone +41 31 838 55 77 | Fa× +41 31 838 55 99 | comatreleco.com | info@comatreleco.com
– Add Your device (new setup)
– Add a device with invitation code for the use
from another account.
– Please enter the invitation code that you
received via e-mail or SMS.
– Define the owner, he/she is the invoice recipient.
– Enter the device name and choose the
corresponding device model
– Enter the device serial number shown on the
device to pair it.
– Remove the transparent cover. The 12-digit
serial number is located on the top of the device.
(Part description no. 13)
(«Pair button» part description no. 7)
The device is now ready for operation.
Further information
The CMS-10R system provides the following roles:
– The «owner» owns the device, he/she can
configure it and bears the costs.
– The «installer» can configure the device and
then hands it over to the owner.
– Additional «user» can be added by the owner
or the installer. The following rights can be
assigned to each user:
– Status viewer
– Control the device
– Manage the device
With the choice of the service profile, for example
«standard», you complete the device set up and go
into normal operation.
