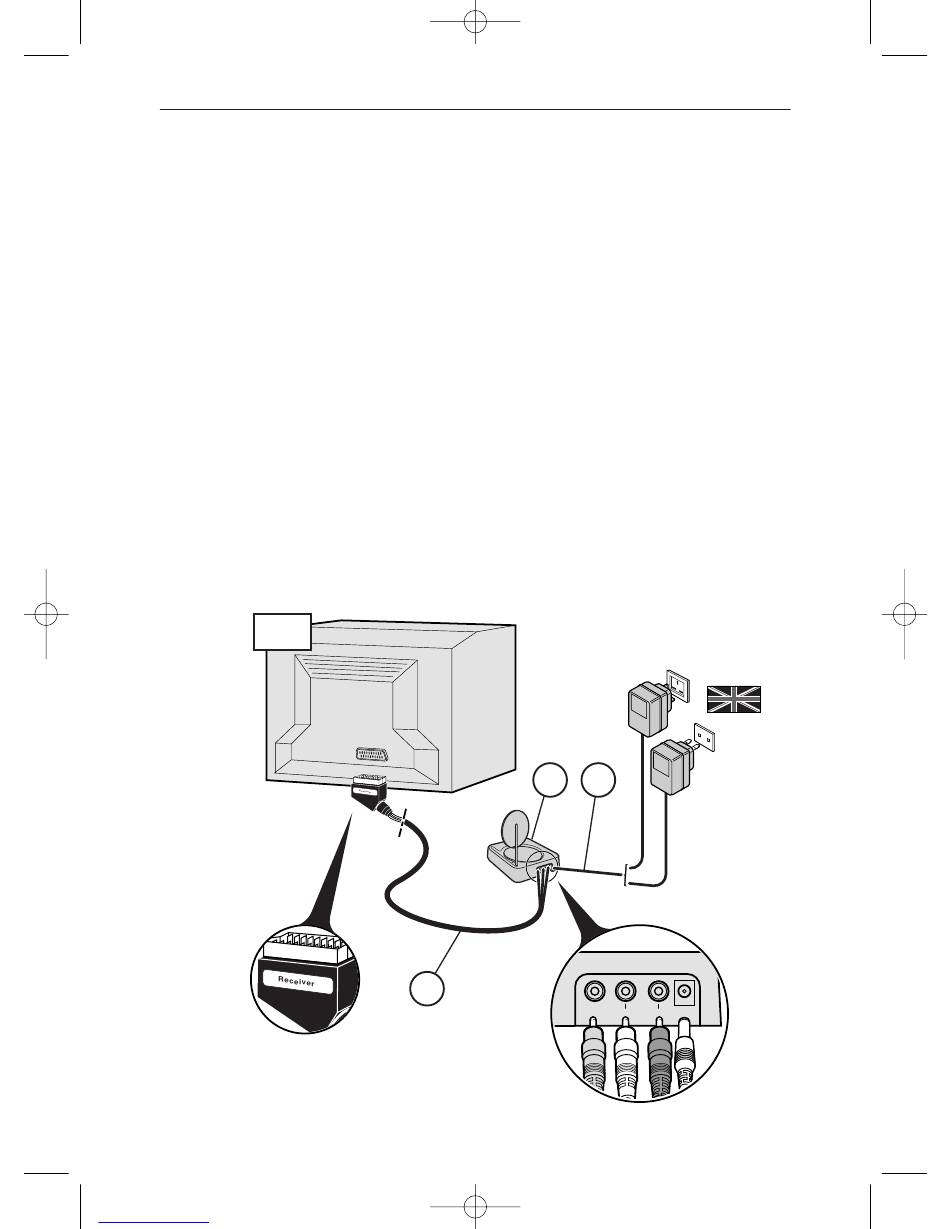

Installation of receiver
1. Place the receiver (5) on, or near, the second television set.
2. Connect the receiver (5) to the second television set using the lead (6) following
the same instructions as for the transmitter.
3. Extend the antenna on the receiver (5) and orient it toward the main TV set (TV1).
4. Raise and extend the telescopic aerial of the receiver (5).
5. Fit the mains supply lead (7) to the receiver and plug it into a 220/240 V ~ 50 Hz
mains power supply.
! THE ANTENNA allows you to transmit and receive audio and video signals over a
maximum range of 30 meters in free air environments. Inside a typical lodgment the range
will be less because of signal attenuation by building material absorption.
! THE TELESCOPIC AERIAL permits the control of the unit whose pictures you wish to
see in the room containing the second television set (TV2).
! THE POWER SUPPLY plug fitted to the transmitter (1) is not the same as the one fitted
to the receiver (7).
Downloaded from www.Manualslib.com
Page 6
TV2
manuals search engine
5 7
6
VIDEO OUT
6
220/240V ~ 50 Hz
VS 650 U
VS 650
VS 650 E
AUDIO OUT
DC 12V
L R
