2.6 Onboard Headers and Connectors 2.6 Onboard Headers and Connectors 2.6 Onboard Headers and Connectors 2.6 Onboard Headers and Connectors 2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper
caps over the headers and connectors will cause permanent dam-
age of the motherboard!

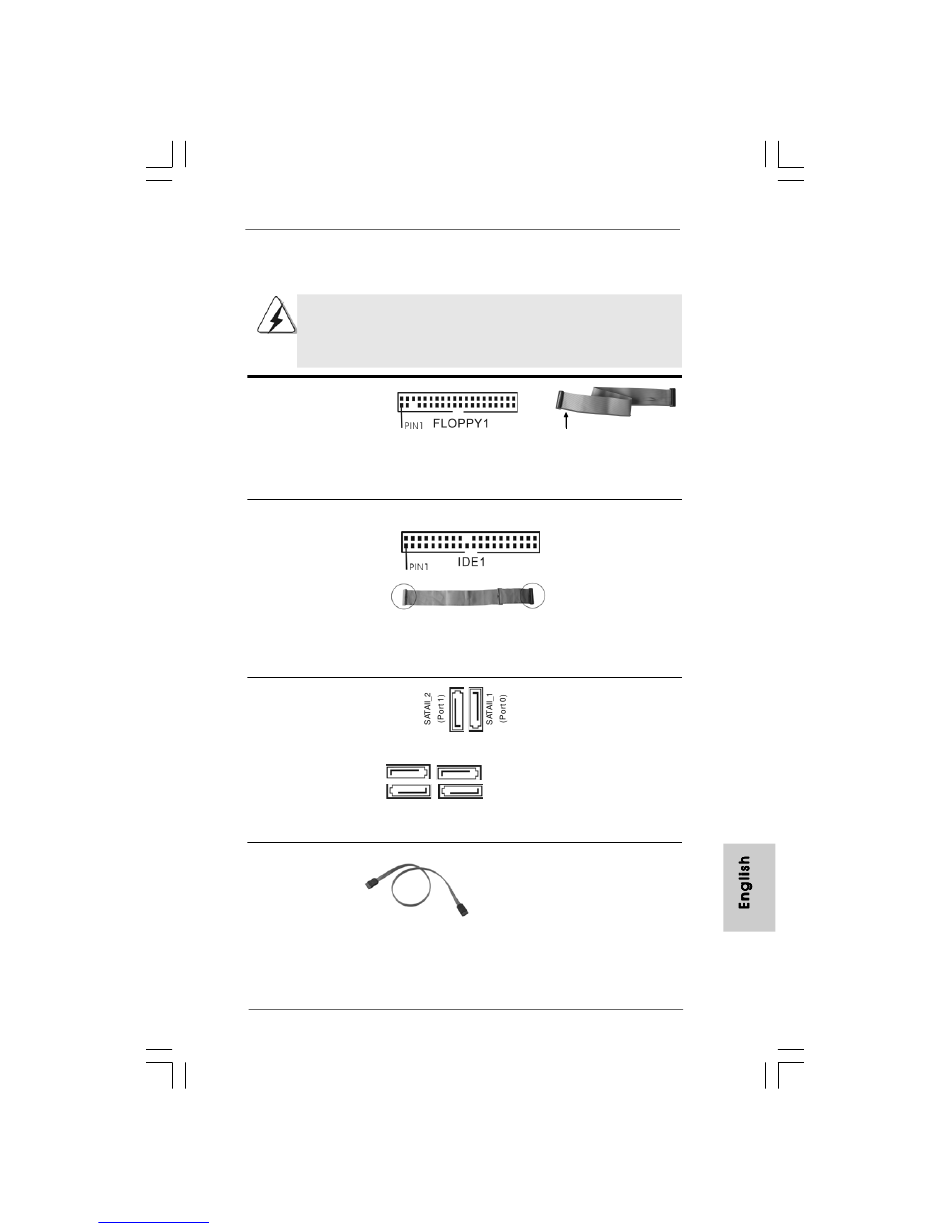

FDD connector
(33-pin FLOPPY1)
(see p.2 No. 24)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 9)
connect the blue end
to the motherboard
80-conductor ATA 66/100/133 cable
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors
(SATAII_1 (Port 0): see p.2, No. 11)
(SATAII_2 (Port 1): see p.2, No. 10)
(SATAII_3 (Port 2): see p.2, No. 17)
SATAII_6
(Port 5)
(SATAII_4 (Port 3): see p.2, No. 16)
(SATAII_5 (Port 4): see p.2, No. 18)
(SATAII_6 (Port 5): see p.2, No. 19)
SATAII_5
Serial ATA (SATA)
Data Cable
(Optional)
ASRock P43C-ME Motherboard
manuals search engine
the red-striped side to
Pin1
connect the black end
to the IDE devices
These six Serial ATAII (SATAII)
connectors support SATA data
cables for internal storage
devices. The current SATAII
SATAII_4
(Port 3)
interface allows up to 3.0 Gb/s
data transfer rate.
SATAII_3
(Port 4) (Port 2)
Either end of the SATA data cable
can be connected to the SATA /
SATAII hard disk or the SATAII
connector on this motherboard.
