2304 ALL.qxd 21/01/04
LED (Label)
Power (PWR)
WLAN (11a)
WLAN (11b/g)
WAN (WAN)
LAN (Link/ACT)
LAN (Speed)
5 5
Downloaded from www.Manualslib.com
13:47 Page 5
Color Activity
Green Solid LED indicates that the unit
is powered on.
No light indicates the unit is powered off.
Green Blinking LED indicates 802.11a signal
is working correctly.
No light indicates 802.11a signal
is disabled.
Green Blinking LED indicates 802.11b signal
is working correctly.
No light indicates 802.11b signal
is disabled.
Green Solid LED indicates a LAN connection
was detected.
Blinking LED indicates traffic is being
transmitted through the WAN connection.
No light indicates a WAN connection
was not detected.
Green Solid LED indicates the WAN connection
is detected at 100Mbps.
No light indicates the WAN connection
is detected at 10Mbps.
No light indicates a WAN connection
was not detected.
Orange Solid LED indicates the WAN connection
is detected at 100Mbps.
No light indicates the WAN connection
is detected at 10Mbps.
manuals search engine
1
Hardware installation
Thank you for choosing the SMC Networks EZ-Stream
2.4/5GHz Wireless Broadband Router. This EZ Quick Installation
Guide provides simple setup instructions. For additional informa-
tion and advanced settings configurations please refer to the
manual included on the CD-ROM.

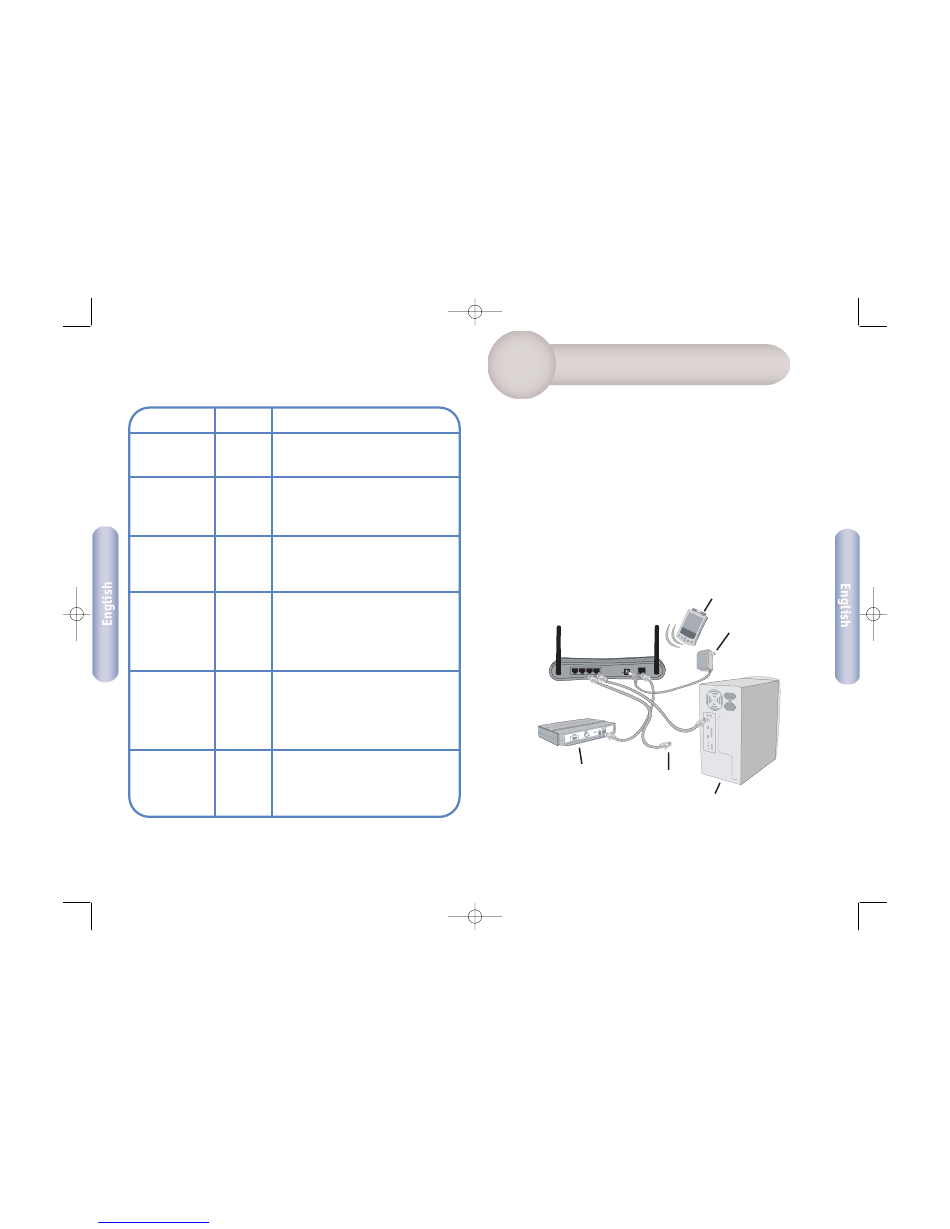

Before you use the EZ 3-Click Installation Wizard, you will need to
setup your hardware connections. Use the diagram below to assist
you with setting up your network.
Compact Flash Card
Broadband Modem
Computer 2
(Cable/DSL)
Computer 1
TM Universal
PDA with Wireless
Power
Adapter
