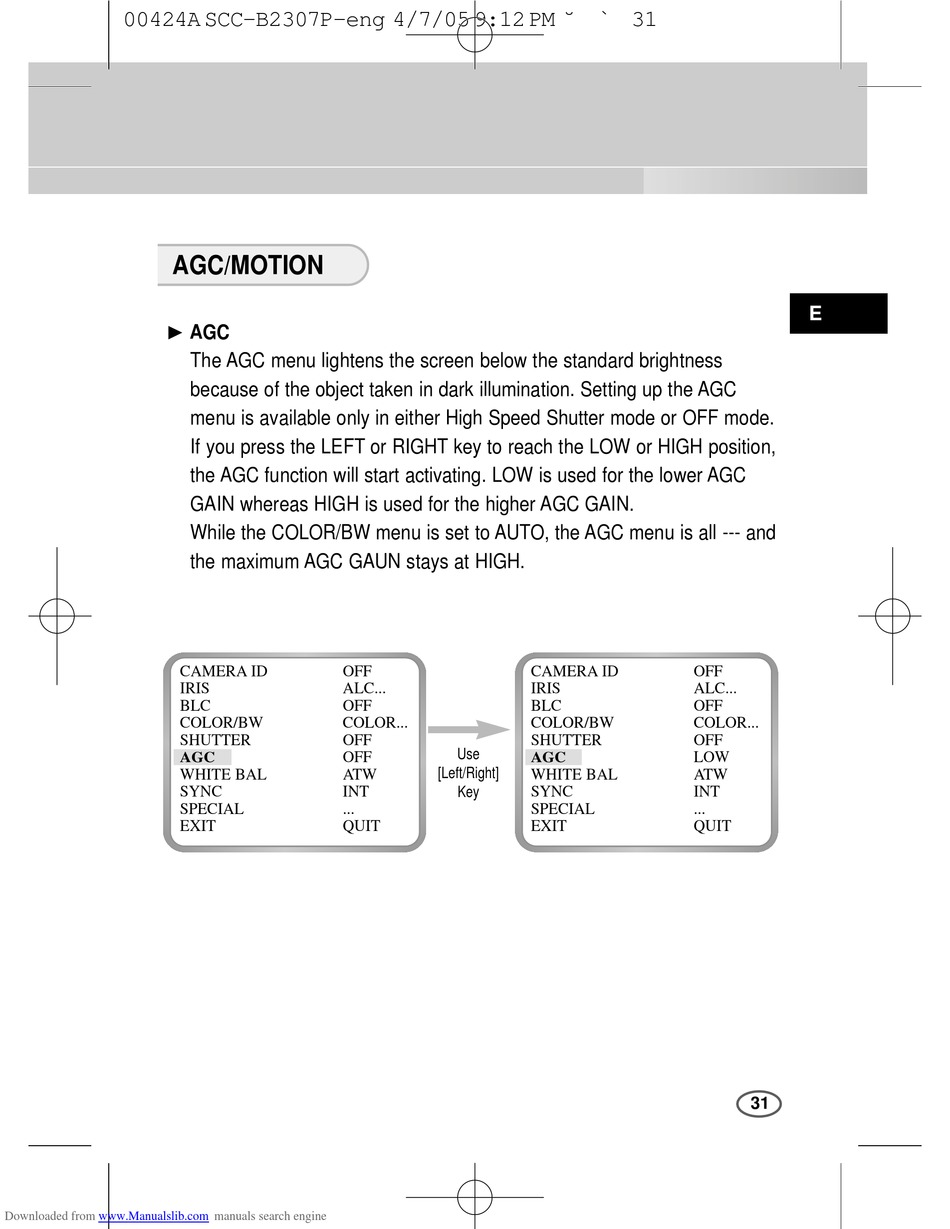

AGC/MOTION
❿ AGC
CAMERA ID
IRIS
BLC
COLOR/BW
SHUTTER
AGC
WHITE BAL
SYNC
SPECIAL
EXIT
Downloaded from www.Manualslib.com
The AGC menu lightens the screen below the standard brightness
because of the object taken in dark illumination. Setting up the AGC
menu is available only in either High Speed Shutter mode or OFF mode.
If you press the LEFT or RIGHT key to reach the LOW or HIGH position,
the AGC function will start activating. LOW is used for the lower AGC
GAIN whereas HIGH is used for the higher AGC GAIN.
While the COLOR/BW menu is set to AUTO, the AGC menu is all --- and
the maximum AGC GAUN stays at HIGH.
OFF
ALC...
OFF
COLOR...
OFF
OFF
ATW
INT
...
QUIT
manuals search engine
CAMERA ID
IRIS
BLC
COLOR/BW
SHUTTER
Use
AGC
[Left/Right]
WHITE BAL
Key
SYNC
SPECIAL
EXIT
E
OFF
ALC...
OFF
COLOR...
OFF
LOW
ATW
INT
...
QUIT
