6
x3
PR5069
45 °

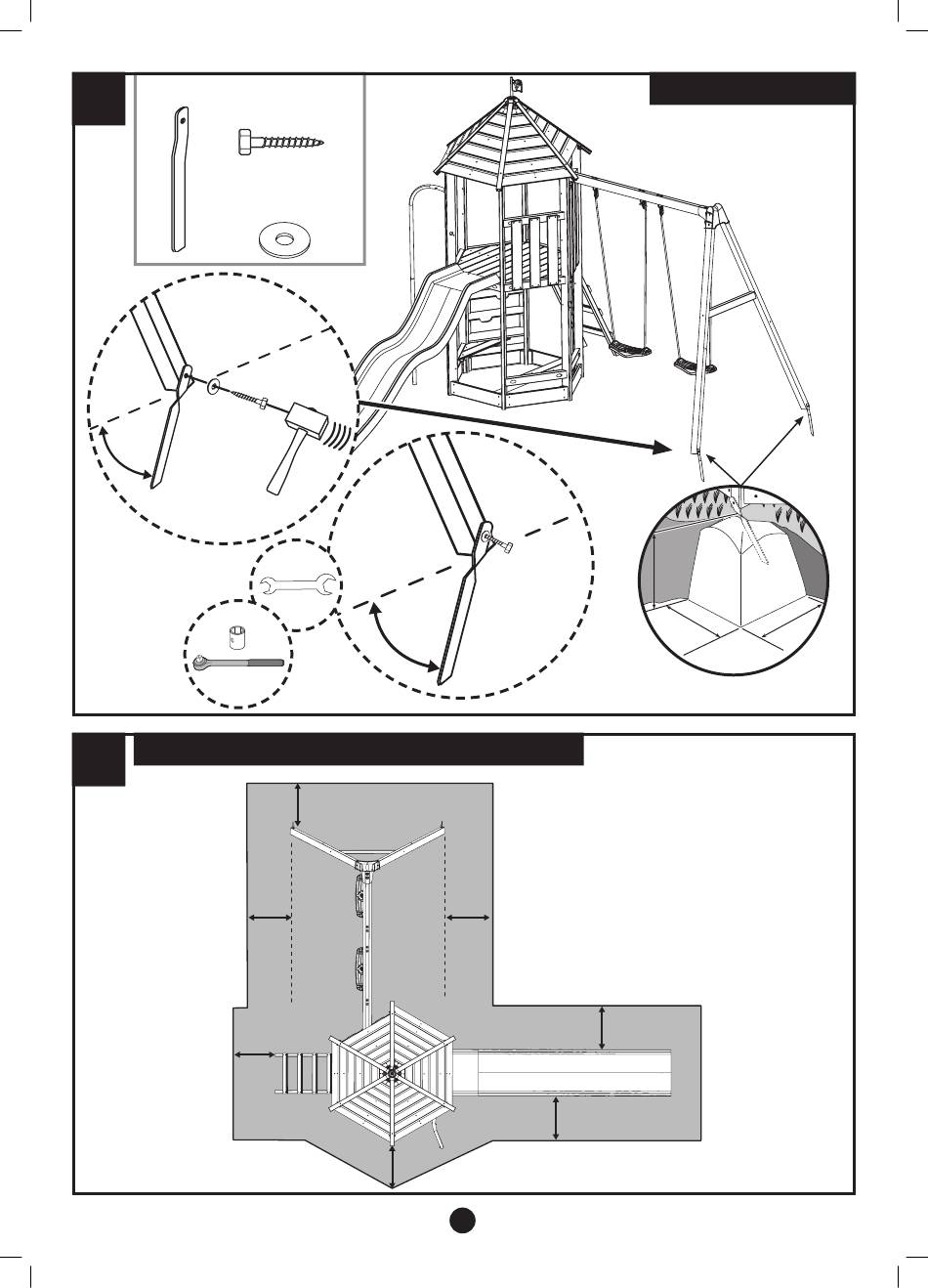

Positioning / Freespace / Safe Play Diagram
7
TP345 Castlewood Double Swing Arm IN3102 Issue H 21.08.17.indd 11
FA8380
M8 x 40mm
x2
Coach screw
FA7184
M8 Washer
(25mm o/dia)
x2
45 °
2m
2m
2m
2m
Never set the legs of the playset in concrete.
Recommended Free Space:
The Safe Play Area refers to the zone extending 200cm (2
metres) beyond the toy on all sides and 250cm (2.5 metres)
above the toy. The Safe Play Area must be free from all
structures, landscaping, trees and branches, rocks, wires,
sprinkler heads and other similar obstacles to safe play.
Children can be seriously injured running or colliding into
such obstacles.
2m
2m
2m
11
Safe Play / Staking
30cm
30cm
30cm
Set the stakes in concrete (as shown).
TP Castlewood Double Swing Arm
21/08/2017 14:15
