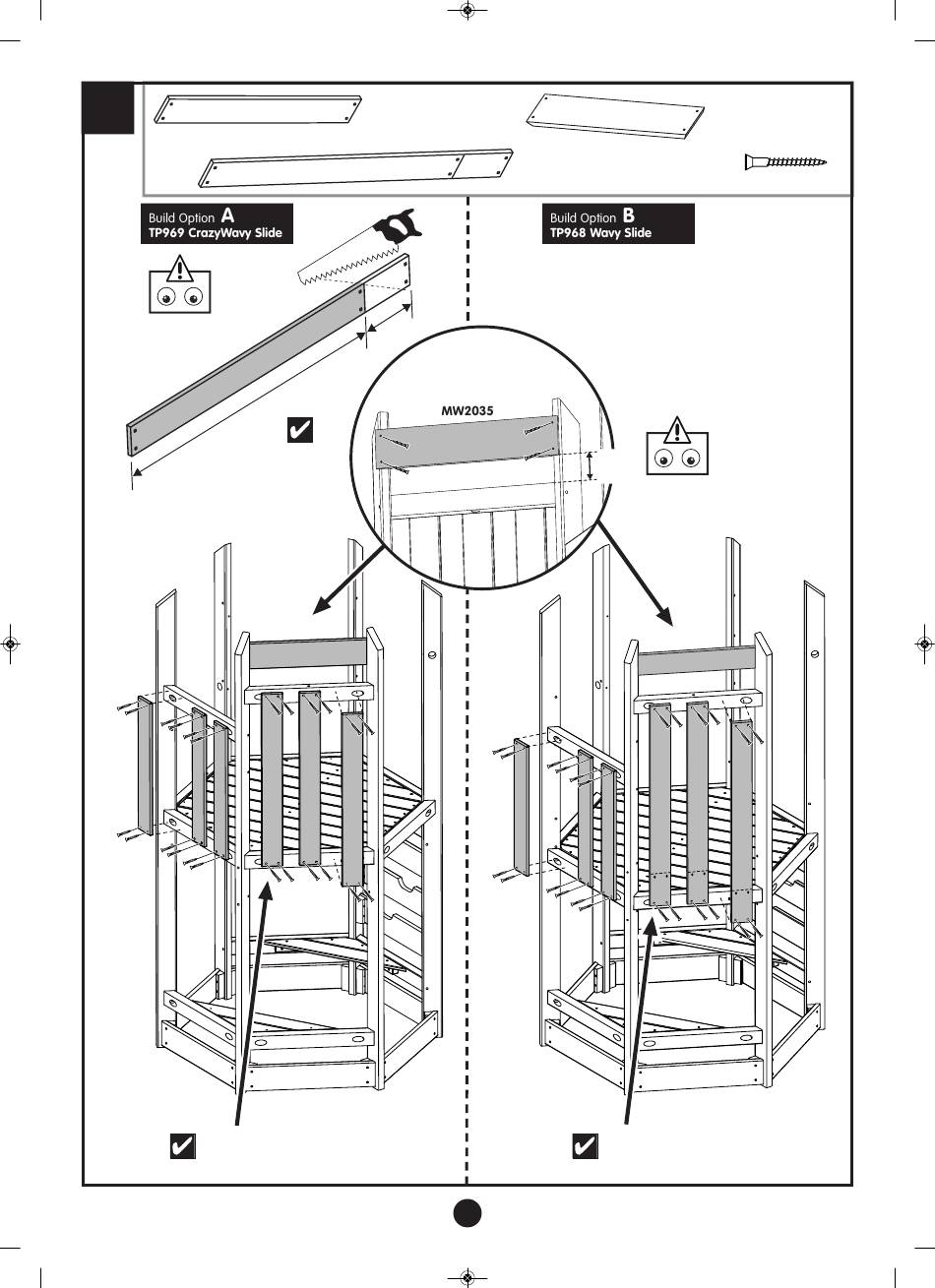

16
x3
MW2023
(650mm)
Check
x3
MW2031
MW2023
650mm
MW2031
850mm
MW2031
(1024mm)
174mm
850mm
MW2035
x3
x1
MW2035
(586mm)
80mm
MW2023
650mm
MW2031
1024mm
20
FA8442
5mm x 40mm
Woodscrew
x28
Check
MW2035
TP Castlewood Tower
