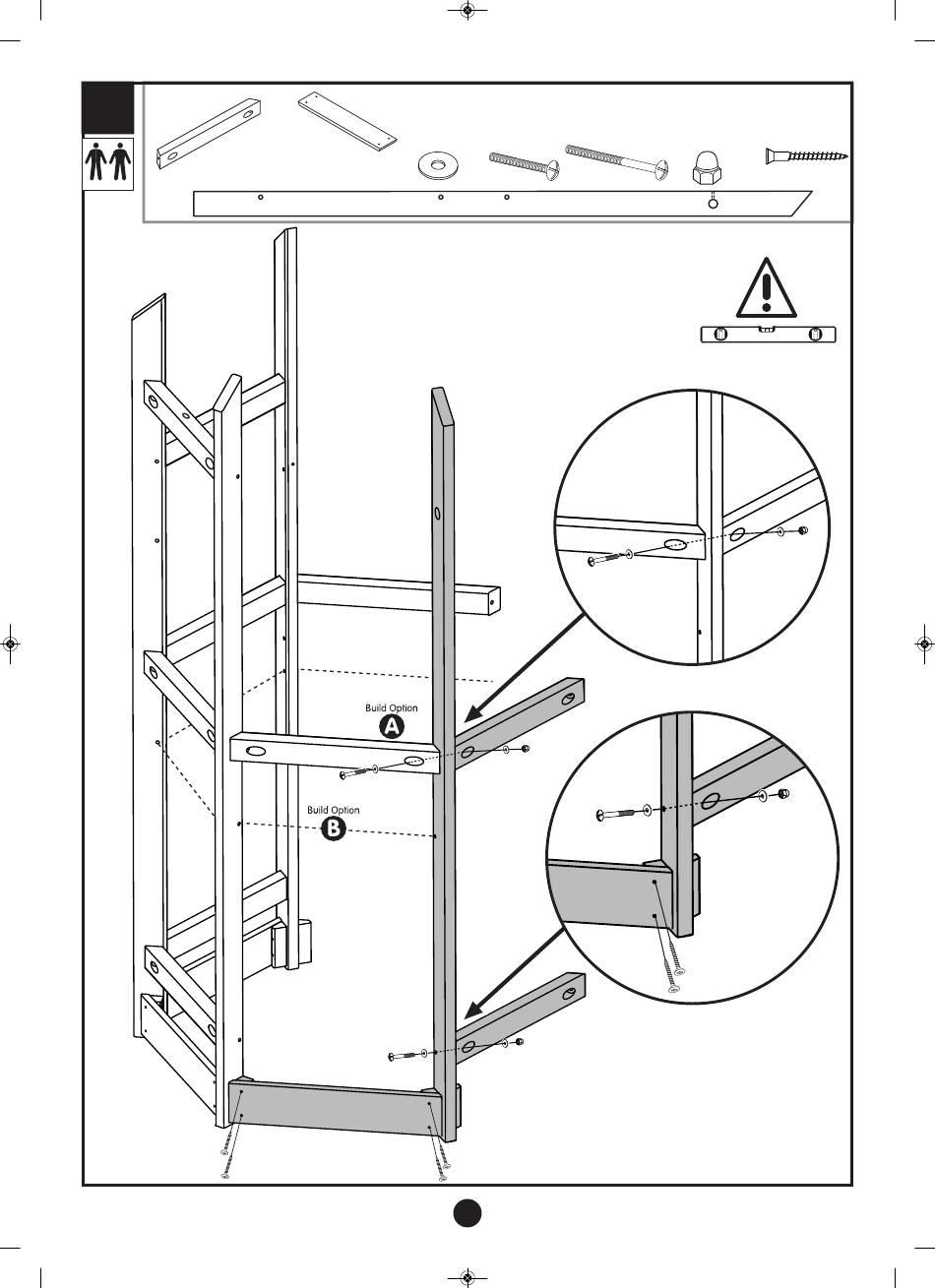

5
x2
MW2024
(589mm)
MW2018
MW2019
MW2022
5mm x 40mm
Woodscrew
FA7184
M8 Washer
(25mm o/dia)
x1
MW2036
(589mm)
x1
(2237mm)
MW2020
MW2018
M8 x 100mm
M8 x 70mm
MW2036
FA5688 FA9701
M8 x 70mm M8 x 100mm
Bolt Bolt
x4 x1
M8 x 100mm
MW2024
M8 x 70mm
MW2024
13
FA8163 FA8442
M8 Nylon Insert 5mm x 40mm
Woodscrew
Dome Nut
x1 x2
TP Castlewood Tower
x4
