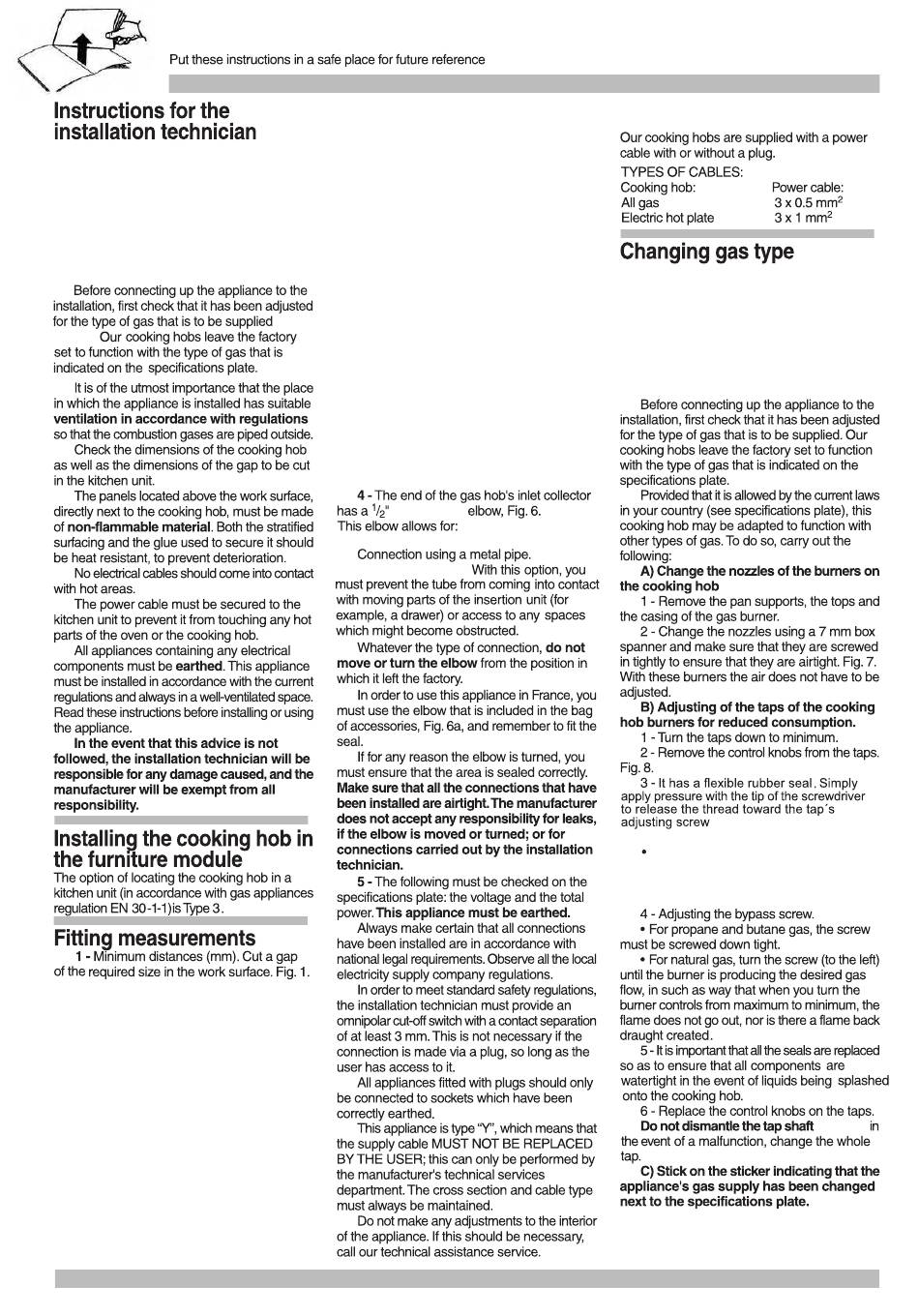

table I).
If no oven is installed under an electrical or
mixed (gas and electric) hob, place a
separator of non-flammable material e.g.
plywood or metal at a distance of 10 mm.
from the bottom of the hob to prevent access
to the lower part of the hob.
If no oven is installed under a gas hob, it is
suggested to place a separator of non-
flammable material e.g. plywood or metal at
a distance of 10 mm. from the bottom of the
hob to prevent access to the lower part of the
hob.
In the event that a drawer is located beneath
the appliance, please make sure that the
drawer contains no heat-sensitive or easily
combustible objects, such as spray cans or
shoe polish. Use a heat-resistant utility drawer
only.
If the cooking hob is to be installed above
an oven, check that the oven is fitted with
power ventilation, and check the dimensions
according to the assembly manual.
Centre the cooking hob in the space
provided in the kitchen unit.
2- The chipboard used to make the worktops
tends to swell quite quickly when it comes into
contact with moisture. Thus we recommend
treating the cut edges with a special glue, to
protect them from steam
or any condensation that might drip down
beneath the cooker unit's work surface.
Depending on the model, the clips and the
watertight seal (lower edge of the cooking hob)
may already be fitted; if this is the case, do not
remove them under any circumstance.
The seal ensures that the entire work
surface will be watertight, and prevents water
(see
seepage.
If this item has not been fitted in the factory,
remove the pan supports and the gas burner
covers and diffusers from your cooking hob,
and turn it upside down.Fig. 2. Now fit the
adhesive seal supplied with the
onto the lower edge of the cooking hob,
Fig. 3a/3b/3c,remove the clips from the attached
accessories bag and screw them into the lower
points designed for this purpose, Fig. 4.
Once the hob is fitted you should turn the clip
and tighten the screw as shown in Fig. 5.
For disassembly, unscrew the clip and
proceed in the reverse manner .
(20,955 mm)
A rigid connection.
(L min. 1m - max. 3m).
appliance
If you see the By-pass adjustment hole
when the remote control is removed, Fig. 10,
insert a screwdriver in the hole, Fig. 10a.
Otherwise remove the outer retainer.
(see table II).
Fig. 9.
