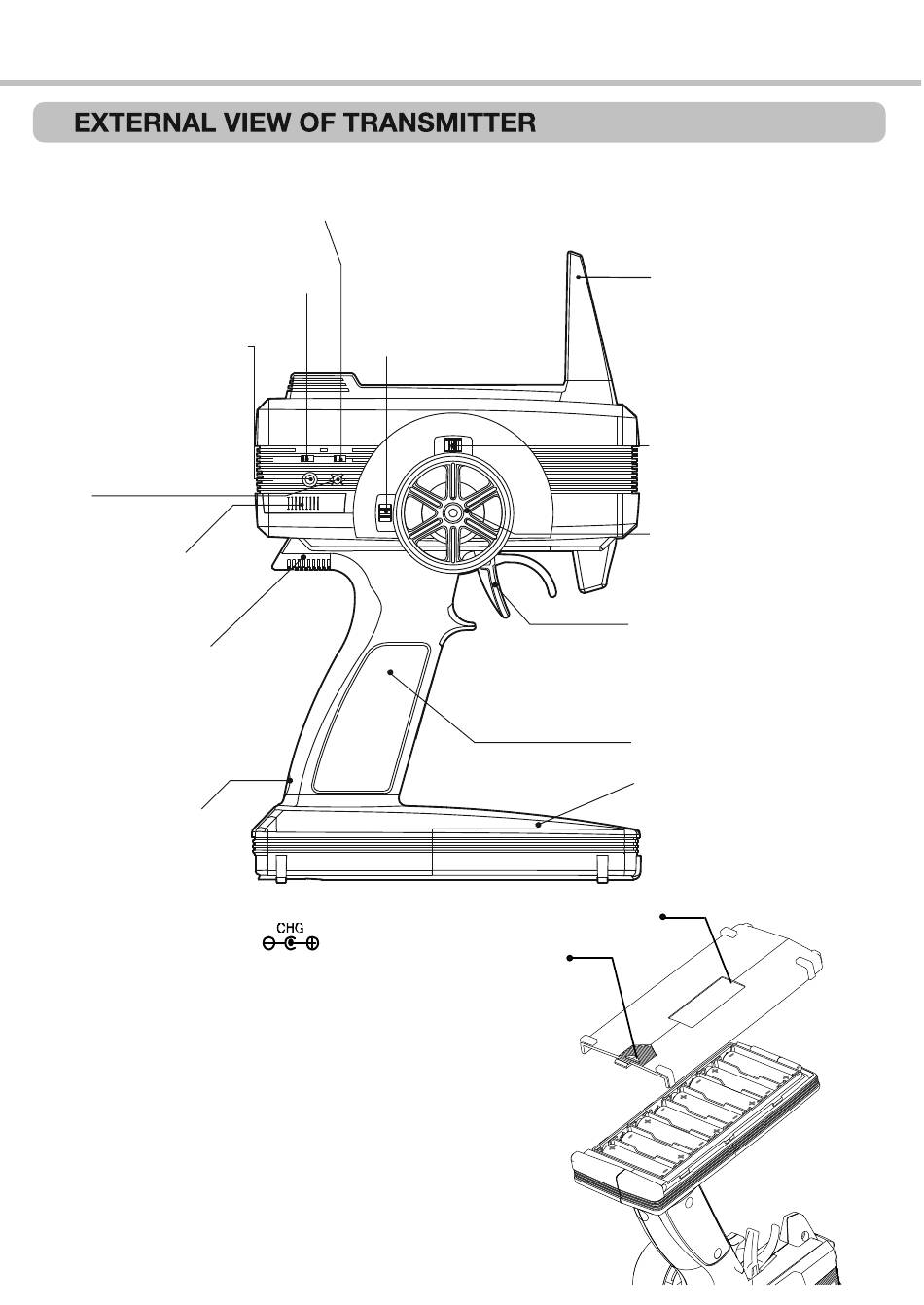

TRANSMITTER
When each lever is operated the action is confirmed with the sound of a beep.
You can hear a clicking sound when the set position is changed.
STEERING REVERSE SWITCH
Switch between steering left and right
direction
THROTTLE REVERSE SWITCH
Switch between throttle forward and
backward direction
TX SETTING BUTTON
Switch the transmitter on
by
pushing the set up button.
The LED will start to flash
slowly indicating that it is in
set up mode.
LED
POWER SWITCH
Slide to right to switch on.
Slide to left to switch off.
HOLE FOR STRAP
CHARGING JACK
I M P O R T A N T !
Only charge batteries
capable of being recharged
and marked rechargeable.
Serious damage to
equipment will result in trying
to charge non-rgeable cells.
HOW TO INSTALL THE BATTERIES
Push the finger point, then slide the battery cover
Pay close attention to polarity of
batteries when installing.
! Incorrectly installed batteries
may cause damage to the radio.
! Do not mix different types
of batteries.
! Never allow batteries to leak.
Clean surfaces and avoid skin contact.
Then replace with new batteries.
THROTTLE TRIM
LEVER
Operates up and down
D.C. 12V
Finger point
3
ANTENNA
! Please handle with care to
reduce risk of damage.
STEERING TRIM LEVER
Operates left and right
adjustment
STEERING WHEEL(CH-1)
Turn to left and right
THROTTLE TRIGGER(CH-
2)
Squeeze
accelerate. Push the trigger to
engage brakes or reverse.
GRIP
BATTERY BOX
Be careful of sharp edges on the
battery terminals or springs.
Battery cover
the trigger to
