Commissioning

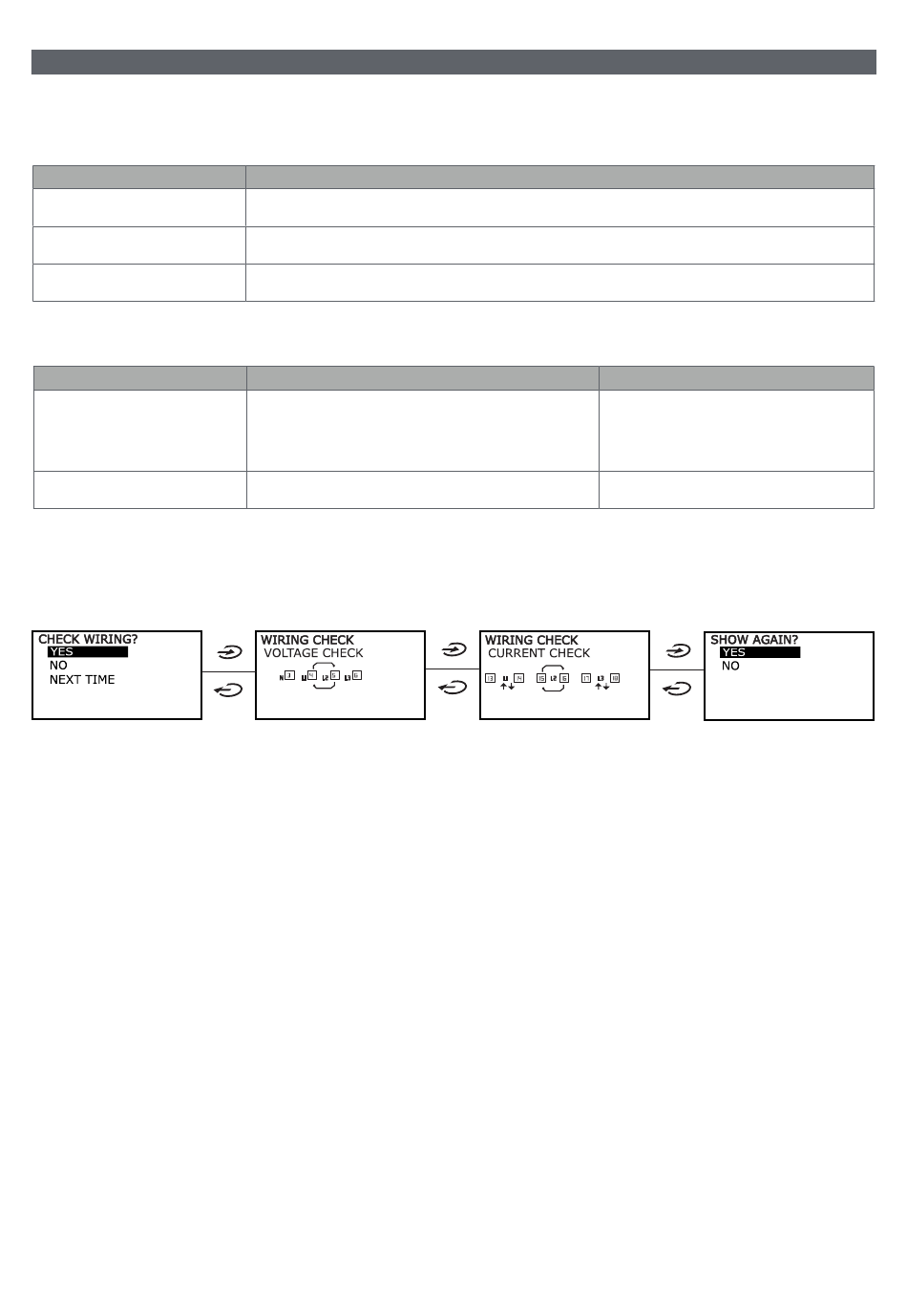

WIRING CHECK menu

This procedure is available if the set system is 3P+N, and allows to check and correct the connections, see "WIRING CHECK
function" on page 21.
In the "CHECK WIRING?" starting page
Select...
YES
NO
NEXT TIME
In the "SHOW AGAIN?" end page
Select...
YES
NO
12 WM15 - User manual | CARLO GAVAZZI Controls SpA
To...
run the WIRING CHECK procedure
skip the procedure and no longer display the WIRING CHECK menu
skip the procedure and display the WIRING CHECK menu at the next switch-on
To...
correct the error detected by WM15.
Actions:
• switch off the instrument
• correct the wiring (follow the graphical indications)
No longer display the menu (WM15 has detected no wiring
errors)
And...
display the WIRING CHECK menu again for the
final check
-
