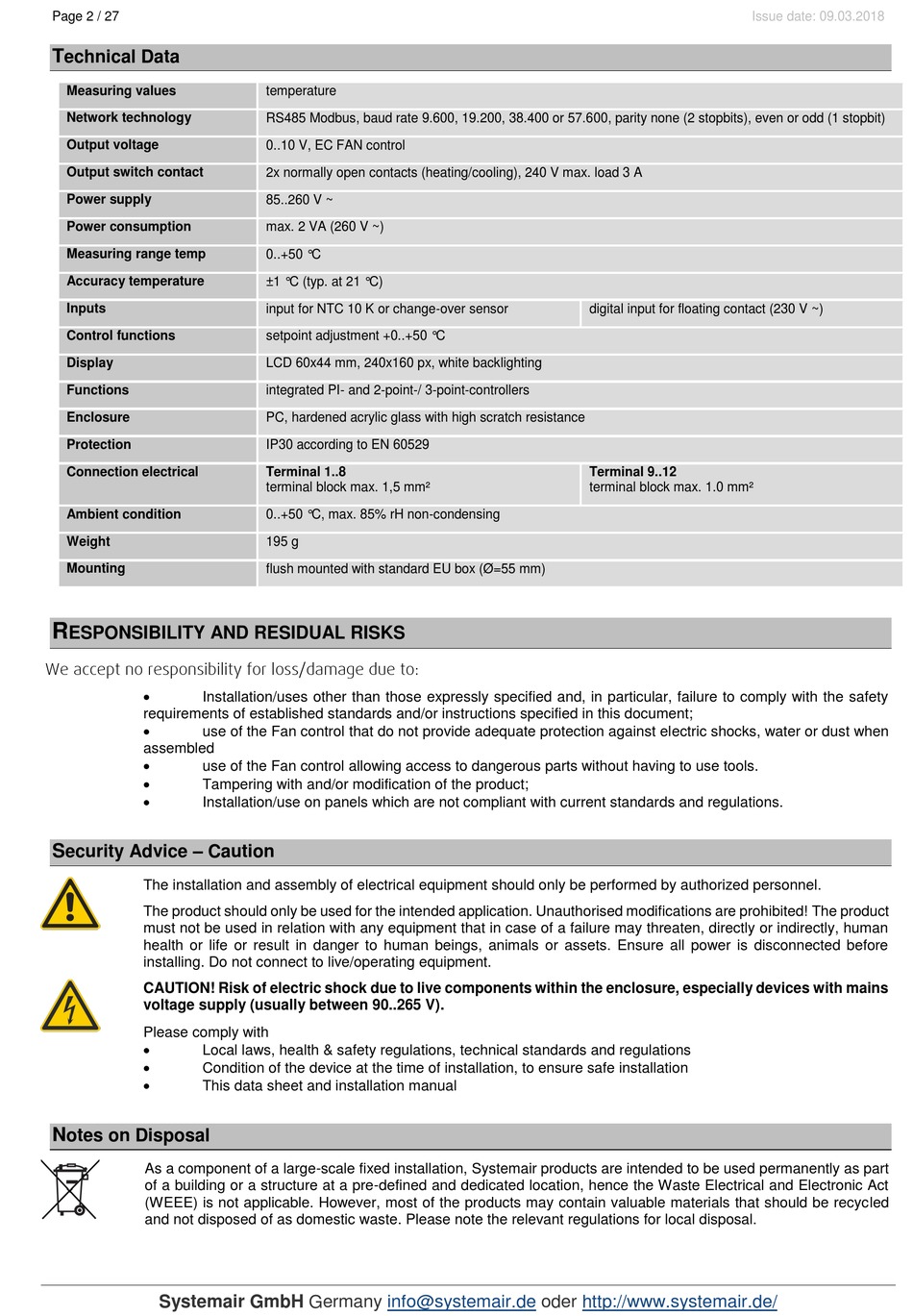

Page 2 / 27
T
echnical Data
Measuring values
Network technology
Output voltage
Output switch contact
Power supply
Power consumption
Measuring range temp
Accuracy temperature
Inputs
Control functions
Display
Functions
Enclosure
Protection
Connection electrical
Ambient condition
Weight
Mounting
R
ESPONSIBILITY AND RESIDUAL RISKS
We accept no responsibility for loss/damage due to:
Installation/uses other than those expressly specified and, in particular, failure to comply with the safety
requirements of established standards and/or instructions specified in this document;
use of the Fan control that do not provide adequate protection against electric shocks, water or dust when
assembled
use of the Fan control allowing access to dangerous parts without having to use tools.
Tampering with and/or modification of the product;
Installation/use on panels which are not compliant with current standards and regulations.
ecurity Advice – Caution
S
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product
must not be used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human
health or life or result in danger to human beings, animals or assets. Ensure all power is disconnected before
installing. Do not connect to live/operating equipment.
CAUTION! Risk of electric shock due to live components within the enclosure, especially devices with mains
voltage supply (usually between 90..265 V).
Please comply with
Local laws, health & safety regulations, technical standards and regulations
Condition of the device at the time of installation, to ensure safe installation
This data sheet and installation manual
N
otes on Disposal
As a component of a large-scale fixed installation, Systemair products are intended to be used permanently as part
of a building or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act
(WEEE) is not applicable. However, most of the products may contain valuable materials that should be recycled
and not disposed of as domestic waste. Please note the relevant regulations for local disposal.
Systemair GmbH Germany
temperature
RS485 Modbus, baud rate 9.600, 19.200, 38.400 or 57.600, parity none (2 stopbits), even or odd (1 stopbit)
0..10 V, EC FAN control
2x normally open contacts (heating/cooling), 240 V max. load 3 A
85..260 V ~
max. 2 VA (260 V ~)
0..+50 °C
±1 °C (typ. at 21 °C)
input for NTC 10 K or change-over sensor
setpoint adjustment +0..+50 °C
LCD 60x44 mm, 240x160 px, white backlighting
integrated PI- and 2-point-/ 3-point-controllers
PC, hardened acrylic glass with high scratch resistance
IP30 according to EN 60529
Terminal 1..8
terminal block max. 1,5 mm²
0..+50 °C, max. 85% rH non-condensing
195 g
flush mounted with standard EU box (Ø=55 mm)
info@systemair.de
digital input for floating contact (230 V ~)
Terminal 9..12
terminal block max. 1.0 mm²
oder
http://www.systemair.de/
Issue date: 09.03.2018
