Sunrise Medical Quickie R-net ENTRY LEVEL Bedienungsanleitung Seite 21

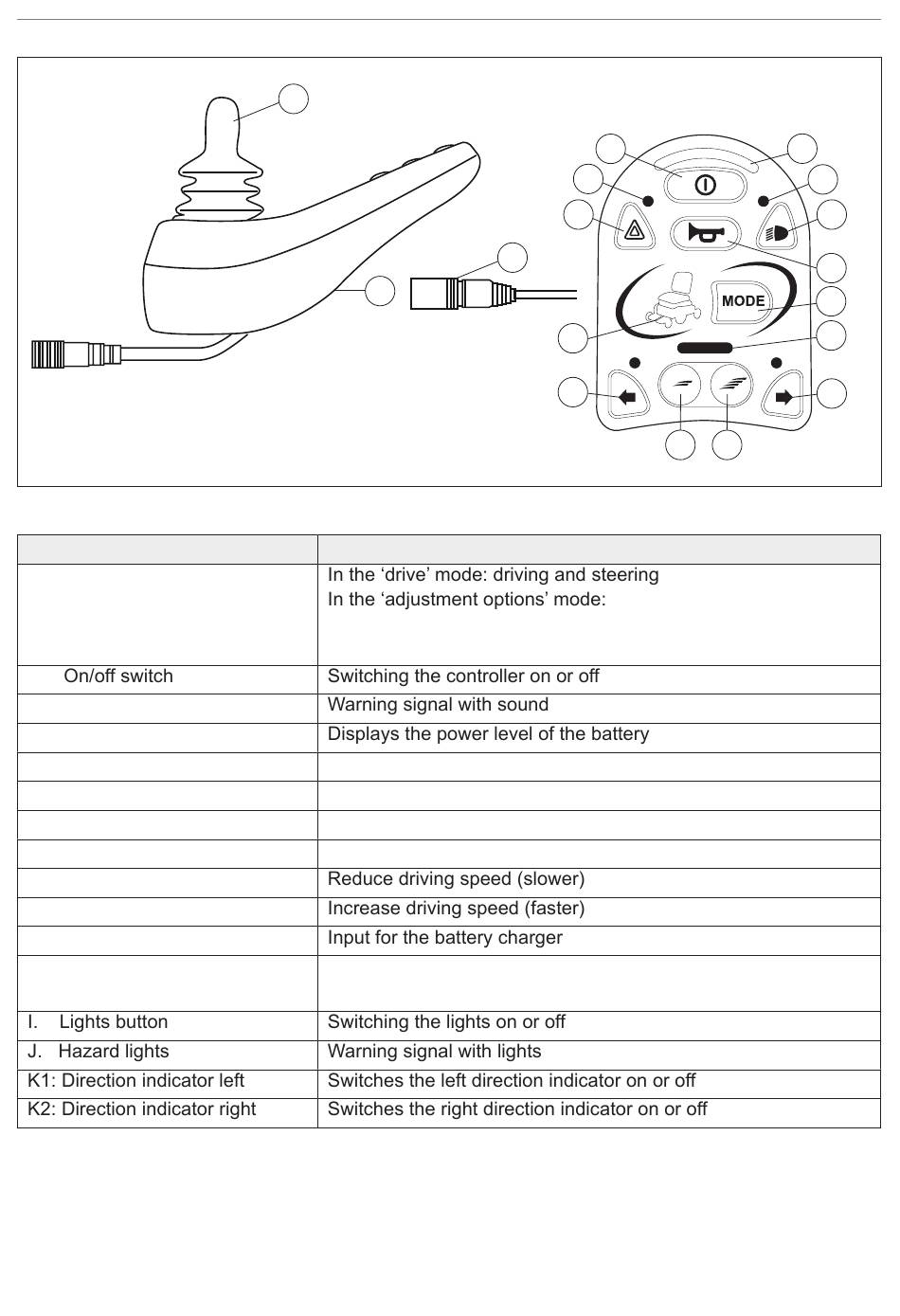

Figure 2
Part
A. Joystick
B.
C. Horn
D. 1 Battery indicator
D.2 Maximum speed
D.3 Light and/or indicator
D.4 Adjustment option
E. "Mode" button
F.1 Speed regulator
F.2 Speed regulator
G. Charge connector
H. Charge plug for the battery
charger
A
G
Function
• Left/right to select the adjustment options
• Front/back to control the adjustment options
Displays the maximum speed limit as set by the user
Displays the status of lights and/or indicator
Displays the currently selected electrical seating adjustment
To select the electrical seating adjustment
Connector for the battery charger
B
D3
J
H
D4
K1
F1
The controller | 21
D1
D3
I
C
E
D2
K2
F2
