EX-6100PoE

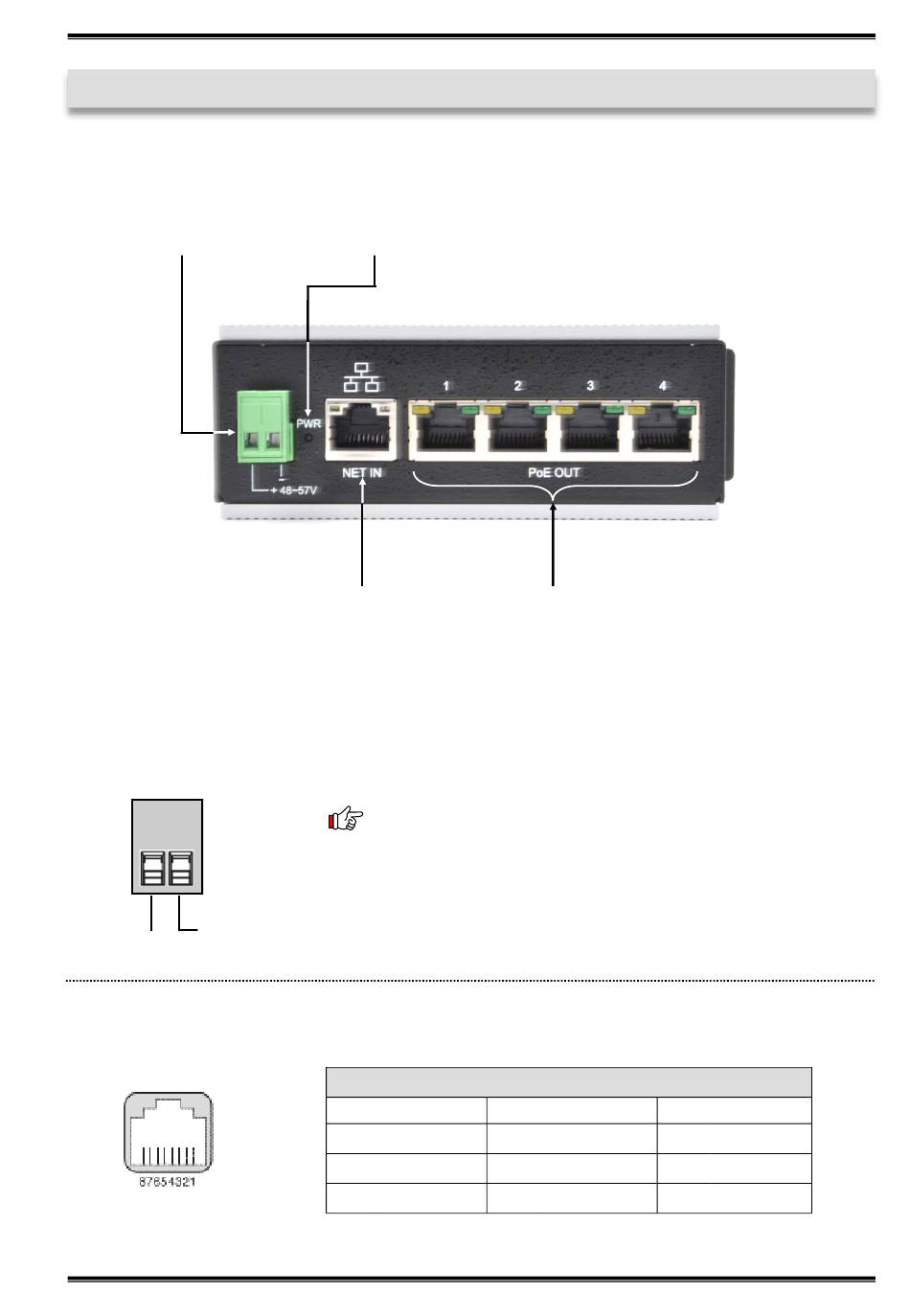

3. Layout, Connections & LED's
3.1 Layout
+48-57 T-Block for optional
external Power Supply
3.2 Connections & LED's
+48-57V T-Block:
GND (Ground)
+48-57V
RJ45 Port:
© Copyright 2019 by EXSYS Vertriebs GmbH. All Rights Reserved
Power LED
1x Connection 4x PoE Connection
Data Input
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
RJ45 Port
Pin Signal
1 BI_DA+
2 BI_DA-
3 BI_DB+
9
Data Output
Pin Signal Pin
4 BI_DC+
5 BI_DC-
6 BI_DB-
English
Signal
7 BI_DD+
8 BI_DD-
