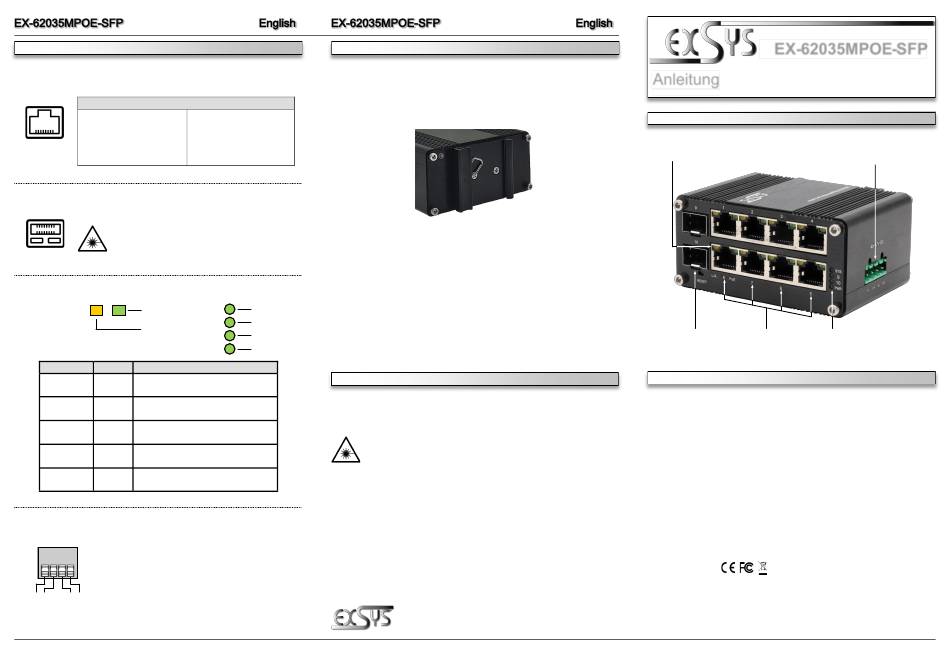

Exsys EX-62035MPOE-SFP Anleitung

CONNECTORS & LED'S
RJ45 Port:
Power over Ethernet IEEE802.3af/at (PoE+), Mode B
RJ45 Port
Pin Signal PoE Pin
1 BI_DA+
2 BI_DA-
87654321
3 BI_DB+
4 BI_DC+ VCC+
SFP slot:
ATTENTION!
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not
stare directly into the laser beam.
Status LEDs:
PoE LED
Link / Activity LED
LED Name Color LED Function
On: Linked
Link (ACT) Yellow
Flashing: Data Transmission
On: PoE is activated
PoE Green Flashing: Power Device (PD) detected
Off: No (PD) device connected
On: Fiber linked
FX 9+10 Green
Flashing: Data Transmission
Flashing: System is running
SYS Green
Off: System failure / Switch off
Steady on: Switch is powered
PWR Green
Off: No power supply connected
48V to 57V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect the power supply to the terminal block
while it is switched on!
V- V+ V- V+
Redundant power supply possible to reduce operational failure.
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Install the EX-62035MPOE-SFP on a mounting rail using the DIN-Rail kit.
Signal PoE
5 BI_DC- VCC+
6 BI_DB-
7 BI_DD+ VCC-
8 BI_DD- VCC-
2. If required, insert optional SFP transceivers into the SFP slots.
3. Connect your network devices to the switch using a network cable.
4. If required, connect the fiber optic cable for the connection to the media converter or switch
to the SFP transceiver(s) used.
CAUTION! Do not look directly into the laser beam of the fiber optic connector!
5. Connect the power connector of the optionally available power supply to the terminal block
and switch on the power supply.
SYS LED
6. After the power is turned on, the PWR indicator lights up. If the indicator does not light up,
FX 9 LED
check that it is connected to the power supply correctly.
FX 10 LED
7. When all cables are connected correctly, the indicators light up according to the port status
of the LEDs (page 5).
PWR LED
NOTICE & CLEANING
Switch off the power supply before disconnecting modules or wires.
The propper power supply voltage is indicated on the product label. Check the voltage of your
power source to ensure you are using the correct voltage. DO NOT use a voltage higher than
what is specified on the product.
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not stare directly into the
laser beam.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Das DIN-Rail Kit ist mit zwei Schrau-
ben an der Rückseite vormontiert
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
EX-62035MPOE-SFP
Anleitung
Vers. 1.0 / 28.02.24
AUFBAU
Status LEDs
2x SFP Slot 8x RJ45 Status LEDs
100/1000 Mbit/s Gigabit PoE
BESCHREIBUNG & TECHNISCHE DATEN
Der wohl kleinste industrietaugliche 10-Port Gigabit Web-Managed PoE-Switch EX-62035MPoE
-SFP bietet trotz seiner geringen Aussenmaße volle Gigabit Leistung an allen Ports. An den
acht RJ45-Ports stehen jeweils bis zu 30W für den Anschluss von PoE Power Devices (PD) wie
z.B. IP-Kameras oder IP-Telefone zur Verfügung. Die beiden zusätzlichen SFP-Slots
ermöglichen die Einbindung in ein Glasfaser-Netzwerk. Passende SFP-Transceiver sind als
Zubehör erhältlich. Dank dem robusten Metallgehäuse
Betriebstemperaturbereich von -40°C bis 80°C ist er für eine Vielzahl von Anwendungen auch in
rauen Umgebungen geeignet. Die Stromversorgung erfolgt über den Terminal Block (48-
57VDC) und kann zur Verminderungen von Betriebsausfällen auch redundant erfolgen.
Kompatibilität: Gigabit Ethernet 10/100/1000Base-T
PoE: IEEE 802.3af/at (PoE+), Mode/Alternative B
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 8x RJ45-Buchse, 2x SFP-Slot, 1x Terminal Block 48-57VDC
Lieferumfang: EX-62035MPoE-SFP, DIN-Rail Kit, Wandmontagehalterung,
Anleitung
Zertifikate:
1
48-57V T-Block für optional
erhältliches Netzteil
und dem erweiterten
