3. Layout, Connections & LED's
3.2 Connections & LED's
Status LED's:
Connection Data Input Connection Data Output
Link/Active LED
Gigabit Mode LED
PoE Power LED
Link/Active LED

4. Hardware Installation

Please observe the following installation instructions. Because there are big differences
between PC's, we can only give you a general guide for connecting the EX-6100PoE. If
you have any questions, please refer to the operating instructions of your computer
system.

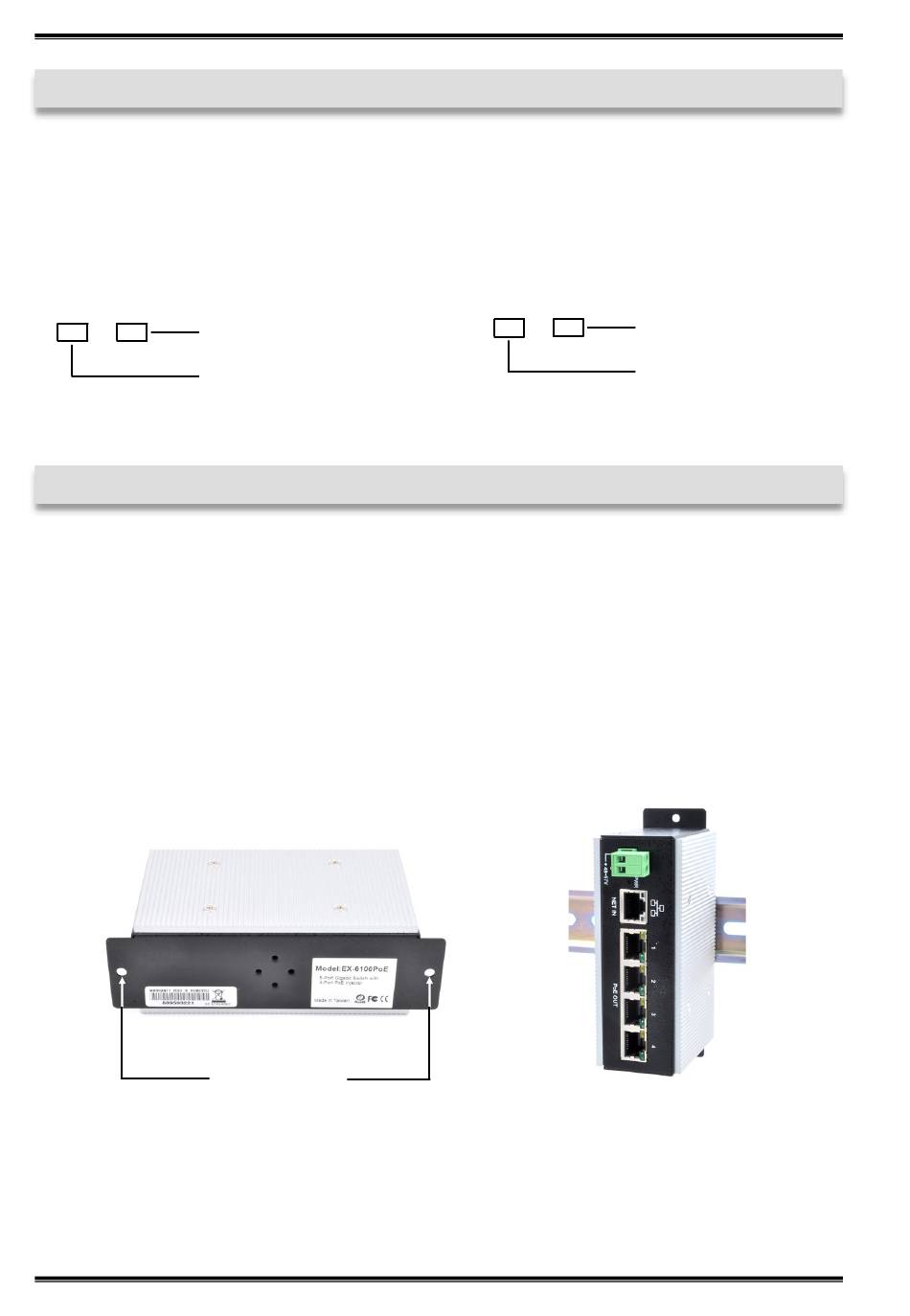

1. Install the EX-6100PoE on the wall or on a mounting rail by using the supplied DIN-
Rail kit.
Installation on
DIN-Rail
Holes for
Wall Installation
2. Connect the RJ45 network cable to the data input connector.
