RFE1000 - CONNECTIONS FOR OPERATION
5. OUTPUT INDICATORS.
1.
DC OK Green LED: On when output voltage Vout ≥ 80% +/-5% of rated Vo
Off when output voltage Vout < 80% +/-5% of rated Vo
6. MOUNTING METHOD.
More
than
50mm
1.
Forced air cooling allow minimum 50mm of unrestricted air space at the rear of the unit
do not obsruct air flow to the unit front panel
2.
Mounting screws must not penetrate more than 3mm into the unit.

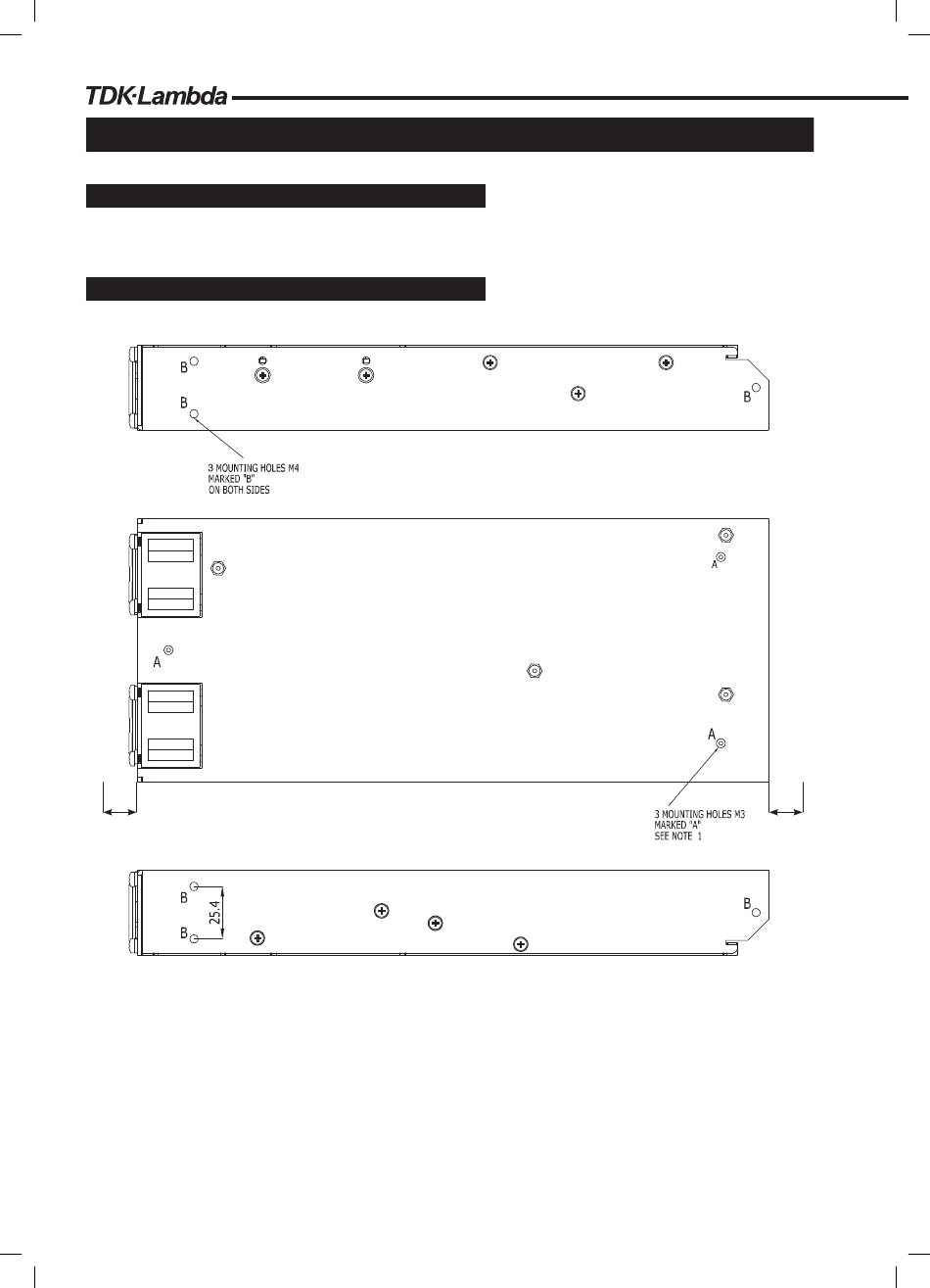

SIDE VIEW
BOTTOM VIEW
SIDE VIEW
More
than
50mm
