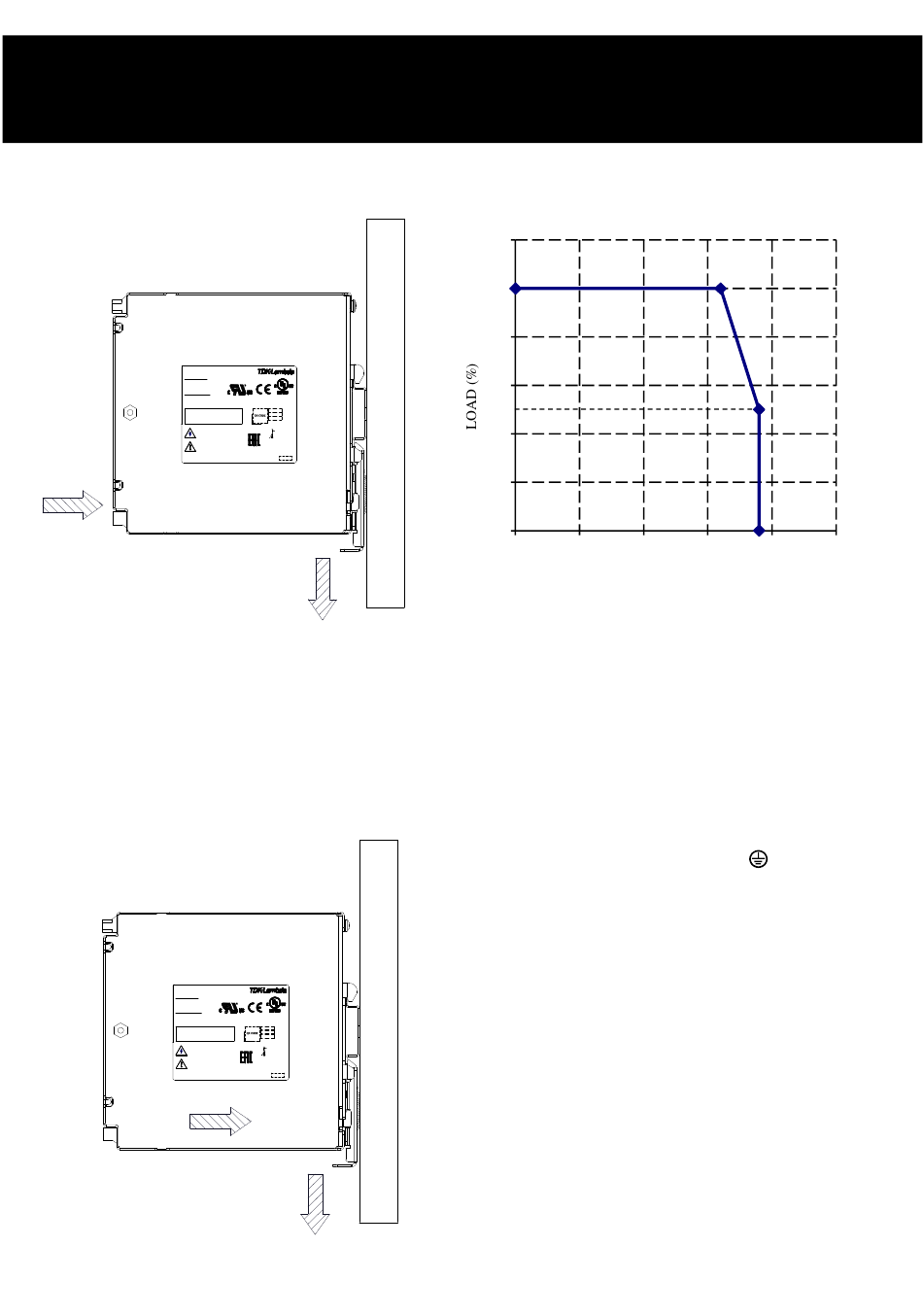

TDK-Lambda DRB240 Installationsanleitung Seite 18

PA635-04-01E
(3) Press against the bottom front side for locking.
Shake the unit slightly to check the locking action.
DRB240-24-1
Input Details
100-240VAC 2.7A
Frequency: 50 / 60Hz
Output Details
DC 24-28V/10-8.6A
Maximum power: 240W
Caution: For use in a controlled environment,
refer to manual for conditions.
Attention: Pour une utilisation dans un
environnement contrôlé,reportez-vous
au manuel d'instructions pour les conditions.
RISK OF ELECTRIC SHOCK
Read manual PA635-04-02_
Further information at:
emea.tdk-lambda.com/PA635-04-01_
(4) In order to tighten the unit mounting, the Din rail
stopper attached on both sides of the unit is
recommended.
6.2. Power supply removal from DIN RAIL
(1) Switch main power off and disconnect your system from
the supply network. Pull the Latch on the rear lower edge
of the unit downwards and gently lift lower front edge of
the unit (tipping upwards) and remove it.
DRB240-24-1
Input Details
100-240VAC 2.7A
Frequency: 50 / 60Hz
Output Details
DC 24-28V/10-8.6A
Maximum power: 240W
Caution: For use in a controlled environment,
refer to manual for conditions.
Attention: Pour une utilisation dans un
environnement contrôlé,reportez-vous
au manuel d'instructions pour les conditions.
RISK OF ELECTRIC SHOCK
Read manual PA635-04-02_
Further information at:
emea.tdk-lambda.com/PA635-04-01_
DOWNLOADED FROM WWW.SCATTS.CO.UK
IND.CONT.EQ.
E483168
EHFP
-25°C to 70°C
Wiring must be
=105°C rated
Le câblage doit être
=105°C nominale
Made in China
IND.CONT.EQ.
E483168
EHFP
-25°C to 70°C
Wiring must be
=105°C rated
Le câblage doit être
=105°C nominale
Made in China
DOWNLOADED FROM WWW.SCATTS.CO.UK
7. Output Derating – DRB240 series
OUTPUT DERATING CURVE
120
100
80
60
50
40
20
0
-25 0
8. Wiring Method
The output load line and input line shall be separated and
twisted to improve noise sensitivity.
Use all lines as thick and short as possible to make
lower impedance.
Noise can be eliminated by attaching a capacitor to the load
terminals.
EMI reduction performance by winding the cable
a
around toroidal ferrite core several times. Use any
appropriate commecially available ferrite core from local
vendor.
For safety and EMI considerations, connect
Earth) terminal of input connector to ground terminal of
equipment.
8.1 EMC
The DRB240 complies with the provisions of the EMC
directive and meets the following standards:
Emissions: EN55011/EN55032 Class B, EN61204-3 Class A
Immunity: EN61000-4-2, -3, -4, -5, -6, -8, -11
TDK-Lambda
DRB240 Series
INSTRUCTION MANUAL
55
25 50 70 75
Ta (°C)
(Protective
100
