*CN51, CN52 Connector & Housing & Terminal Pin
Connector build in PSU
B2B-XH-A (CN51)
S12B-PHDSS (CN52)
Hand Crimping Tool: YRS-480(SXH-002T-P0.6) (CN51) (JST) and YRS-620(SPHD-002T-P0.5) (CN52)(JST)
Use maker recommended crimping tool.

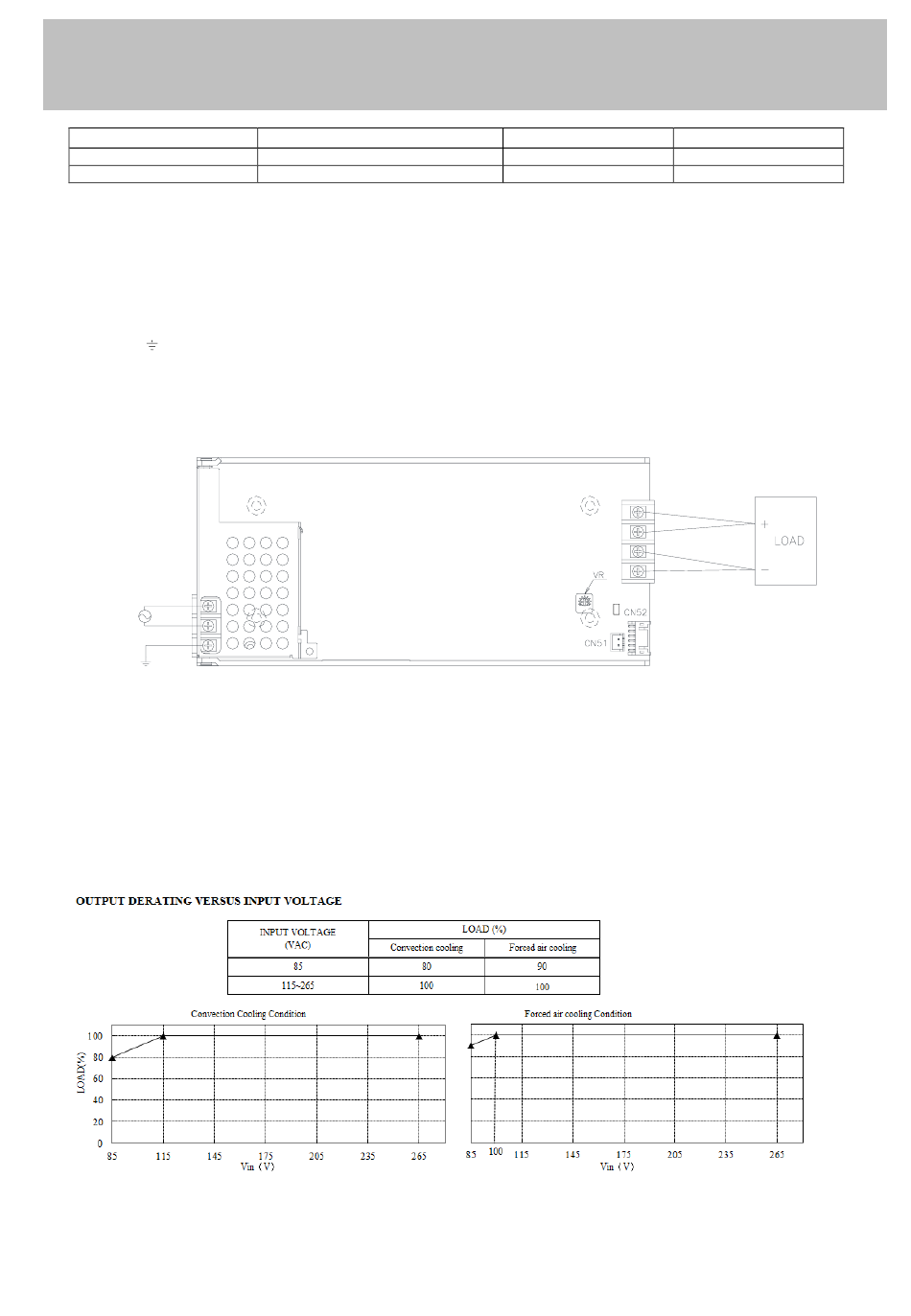

3. Connection Method

Please pay attention to the input wiring. If it is connected to wrong terminal, the power supply will be damaged.
• Input must be off when making connections.
• Connect terminal to earth （ f rame ground of the equipment etc. ） b y thick wire for safety and improvement of noise sensitivity.
• The output load line and input line shall be separated to improve noise sensitivity.
• Remote sensing lines shall be twisted or used shielded wires.
• Remote ON/OFF control lines shall be twisted or used shielded wises.
• Output current of each terminal pin of CUS350M Series must be less than 20A.
4． ． ． ． Explanation of Function and Precautions
4-1. Input Voltage Range
Input voltage range is single phase 85-265VAC (47-63Hz). Input voltage, which is out of specification, might lead unit damage, For cases
where conformance to various safety requirements, described as 100-240VAC (50 - 6 0Hz). If input voltage is less than 115VAC under
convection cooling condition or 100VAC under forced air cooling condition, output power need to be derated.
Derating curve of the input voltage
4-2. Output Voltage Range
Output voltage is set at nominal value at shipment. V.adj trimmer (V.adj) can adjust the output voltage within the range. Output voltage range
All manuals and user guides at all-guides.com
Mated Housing
XHP-2 (CN51)
PHDR-12VS (CN52)
Recommended torque: M3 screw 0.49N · m （ 5 .0kgf · c m ）
Mated Terminal Pin
SXH-002T-P0.6 (CN51)
SPHD-002T-P0.5 (CN52)
- 2 -
TDK-Lambda
CUS350M
Instruction Manual
