8. Disassemble the vacuum relief valve (D).
Clean and lubricate shaft and bearings. Check
the rubber gasket (E). Change if cracked or
harden (Part No. 4710).
Check the function of the hydraulic damper
(F).
D
E

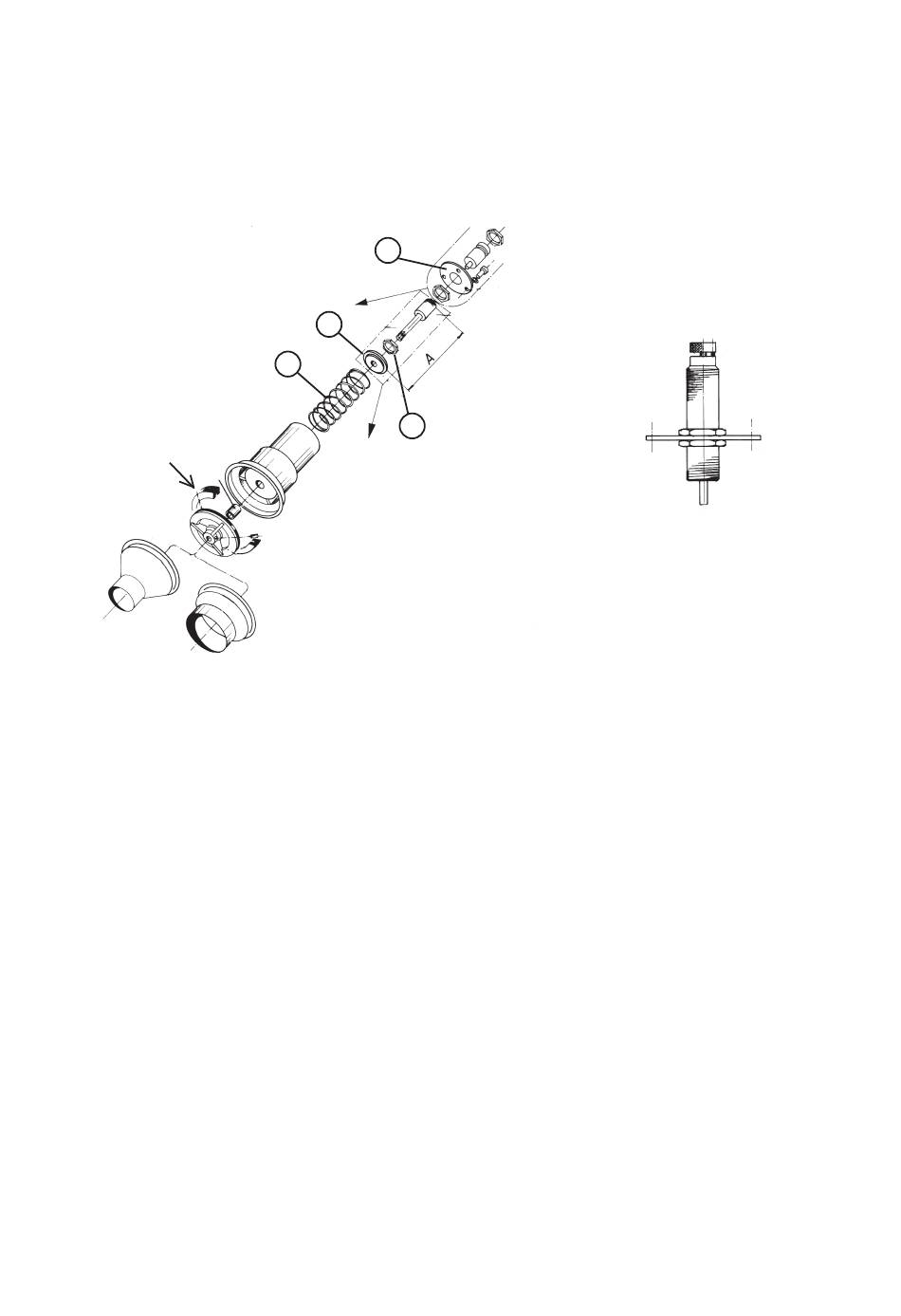

Adjusting the vacuum relief valve
The valve is pre-adjusted with a negative pres-
sure
(18 kPa). If this is to be adjusted the following
procedure is used:
- Connect a manometer to the suction side
and measure with fully closed inlet.
- Shut down the pump and demount the
vacuum relief valve.
- Remove the damper cover (1) and measure
distance A.
- Loosen the locking nut (3) and adjust the
spring tension by turning the spring plate
(4). The compression of the spring (2) de-
termines the opening pressure. Changing
the distance A by 1.5 mm will give a cor-
responding change in pressure of 1 kPa.
- Remount the valve after adjustment and
test the pressure.
9. Inspect all cables and connections, repair if
neccessary.
10. Remount the protective panels, power up
the pump and give it a test run.
2017-04-12
1.
4.
2.
3.
TPR 40, 15kW - 18
F
Part No 9045-A
