CAMSET5N – 2-CHANNEL B/W CAR REVERSING SYSTEM
1. Introduction and Contents
Thank you for buying the CAMSET5N! Please read the manual thoroughly
before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
The CAMSET5N consists of :
• monitor
• mounting bracket for monitor
• power plug (for 12-14.4V DC)
• mounting bracket for camera
• camera with cable 80cm
• 4 x adjusting knob
• long cable (10m)
OPTIONS
• extra camera (ordercode CAM18)
• spare cable (10m) (ordercode CAMSET/SPC6)
2. Description of the Monitor

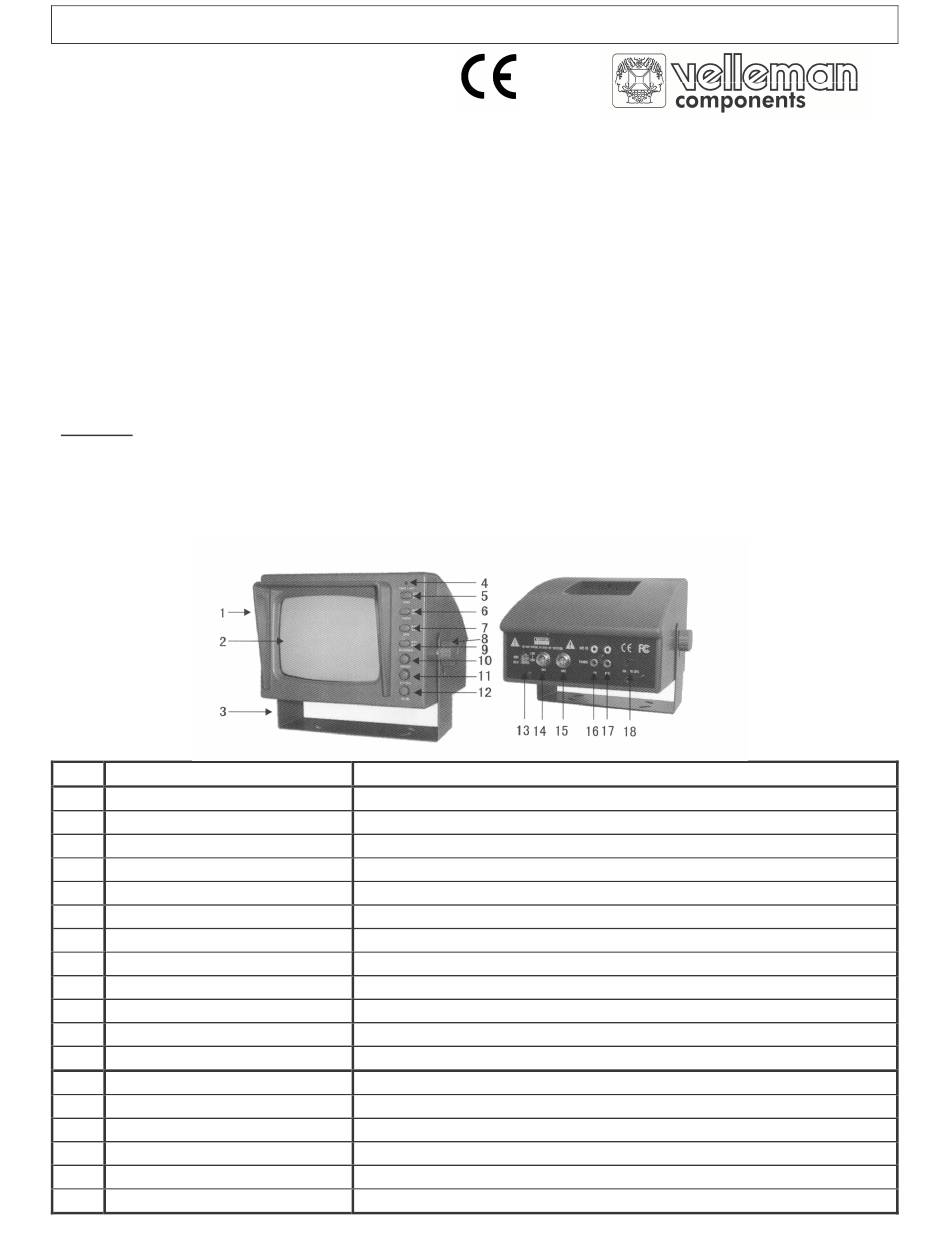

Fig. 1
N° Specification
1 sunshade
2 5.5" display
3 mounting bracket
4 ON/OFF LED
5 POWER button
6 CA1/CA2 button
7 IMAGE button
8 angle adjusting knob
9 BRIGHTNESS button
10 CONTRAST button
11 H/V-HOLD button
12 VOLUME button
13 12V-24V input
14 CA1 input connection
15 CA2 input connection
16 A/V input
17 A/V output
18 A/V camera change
CAMSET5N
protection against the rays of the sun
displays images
keeps the monitor in place
indicates when device is in operation
switches the monitor ON/OFF
selects camera 1 or camera 2
selects normal picture or inverted picture
sets the monitor angle
to select DAY or NIGHT setting (luminance)
determines the contrast of your picture
steadies the image
sets the volume of the audio feature
used to select the input voltage
input for camera 1
input for camera 2
audio & video input
audio & video output (do not use a different monitor)
switches between CA1/CA2
- 1 -
