The CAMSET12 is controlled by an OSD ("On-Screen Display") microcomputer. This computer is used to adjust
contrast, brightness, colour, tint, volume and the OSD display position. The device is also equipped with an internal
EEPROM memory that will save the original settings in case the power is cut.
It also features a power switch, a reverse gear auto switch, a NTSC/PAL auto switch; the image can be reversed
(left/right and up/down) and the device supports AV1/AV2 double input.
2. Description of the Front and Side Panels - Beschrijving van het front- en zijpaneel -
Description du panneau frontal et du panneau latéral

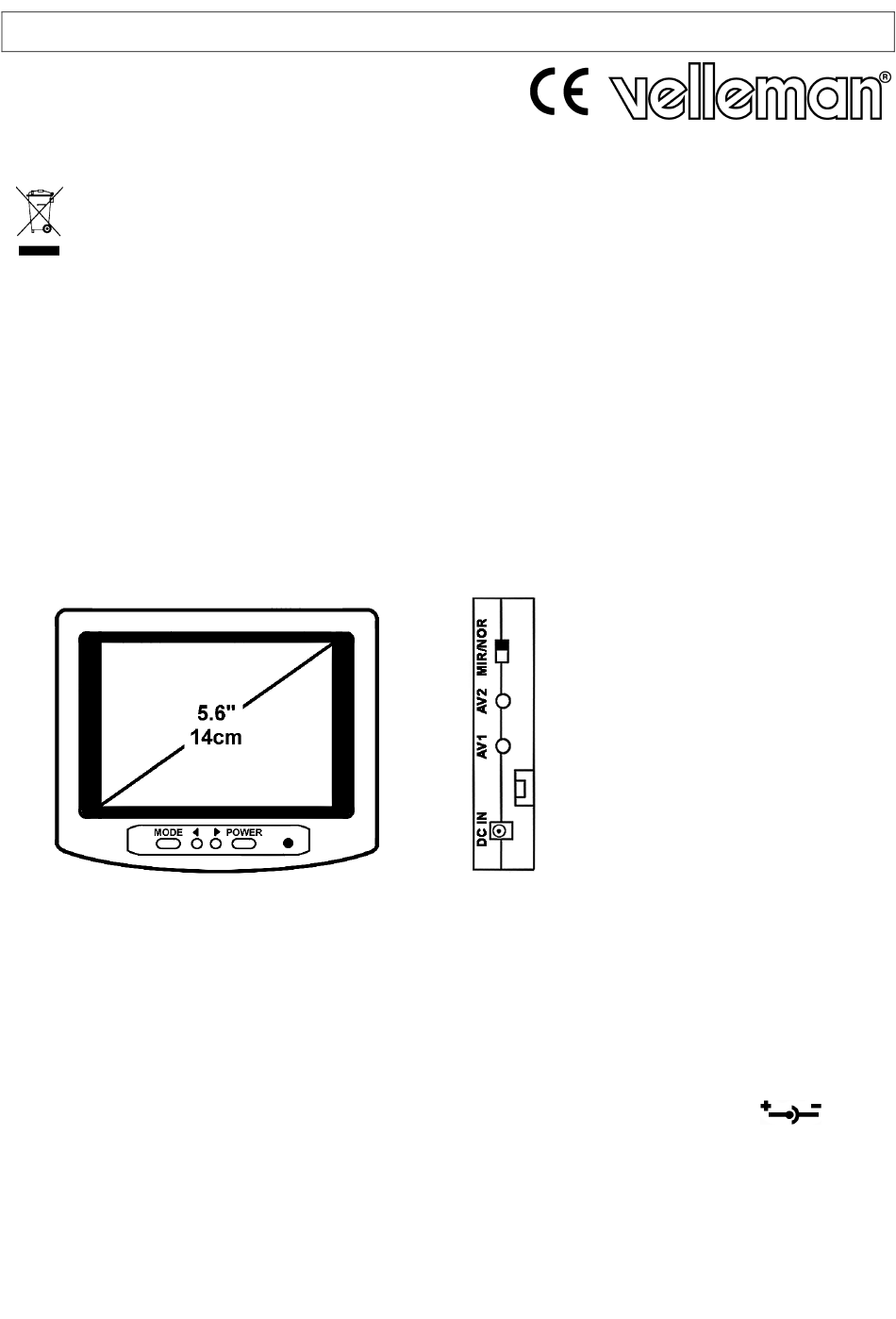

FRONT PANEL
FRONTPANEEL
PANNEAU FRONTAL
PANEL FRONTAL
FRONTPLATTE
MODE button : to select the various adjustments
: to reduce the entered values
◄-button
: to increase the entered values
►-button
POWER button : to activate/deactivate the device
Remark : The adjustments are displayed backwards if the MIR/NOR switch to the right of the A/V connections is pushed
to the left. Push the switch to the right to display the adjustments normally (see figure of the side panel above).
CAMSET12_v2

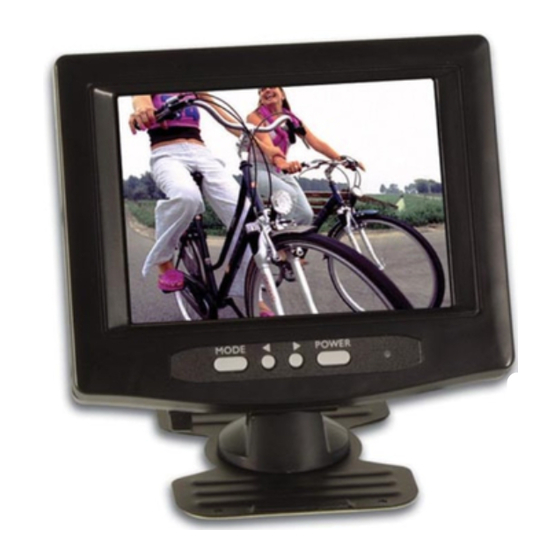

CAMSET12 - 5.6" TFT LCD MONITOR
SIDE PANEL
PANNEAU LATERAL
PANEL LATERAL
DC IN : input tension 12VDC/600mA (
AV1 : composite video input signal + audio input
AV2 : composite video input signal + audio input
