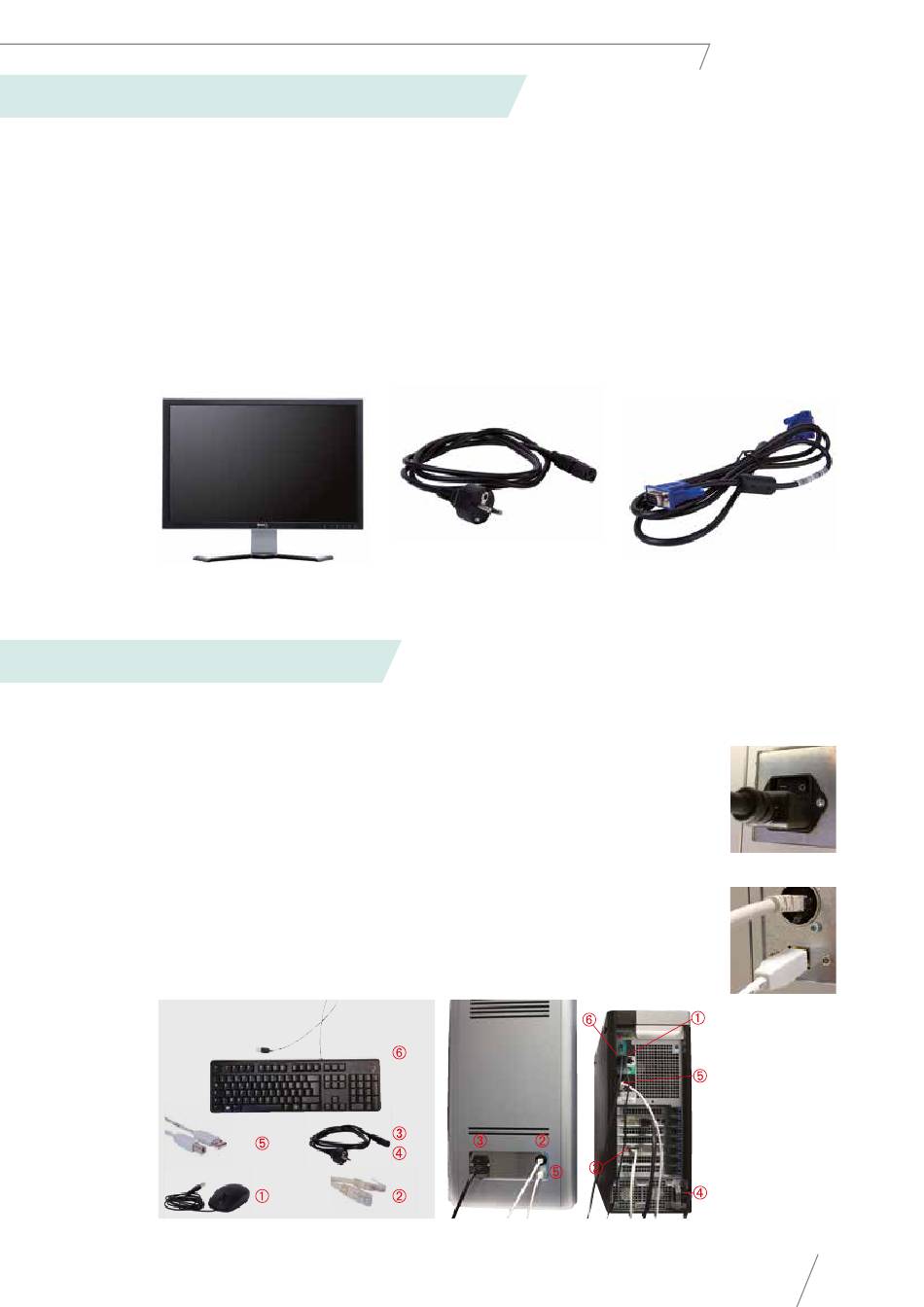

USE OF EXTERNAL EQUIPMENT

The Aadva Lab Scan requires the use of external equipment for proper operation.
These devices must be compliant with the following standards: DIN/EN/IEC 60950, UL 60950
and CAN/CSA-C22.2NO. 60950-00. Our software is compatible with Dell and HP monitors. The customer is
required to provide the following external equipment:
1. Monitor

HARDWARE SETUP

1. Install the Aadva Lab Scan on a flat and stable place, in a medical room or laboratory.
The Aadva Lab Scan should not be located in the vicinity of patients.
The scanner will require a level surface area measuring approximately 400 x 300 mm.
2. Connect the power cord to the main power outlet.
3. Connect the LAN cable to the network plug on the Aadva Lab Scan.
Then, insert Type B connector of the USB Cable into the USB port on the back panel
of the Aadva Lab Scan.
4. Install the monitor and workstation on a flat and stable place, near the Aadva Lab Scan.
Aadva LAB SCAN from GC
2. Monitor Power Cord
Aadva
3. VGA Monitor Cable
