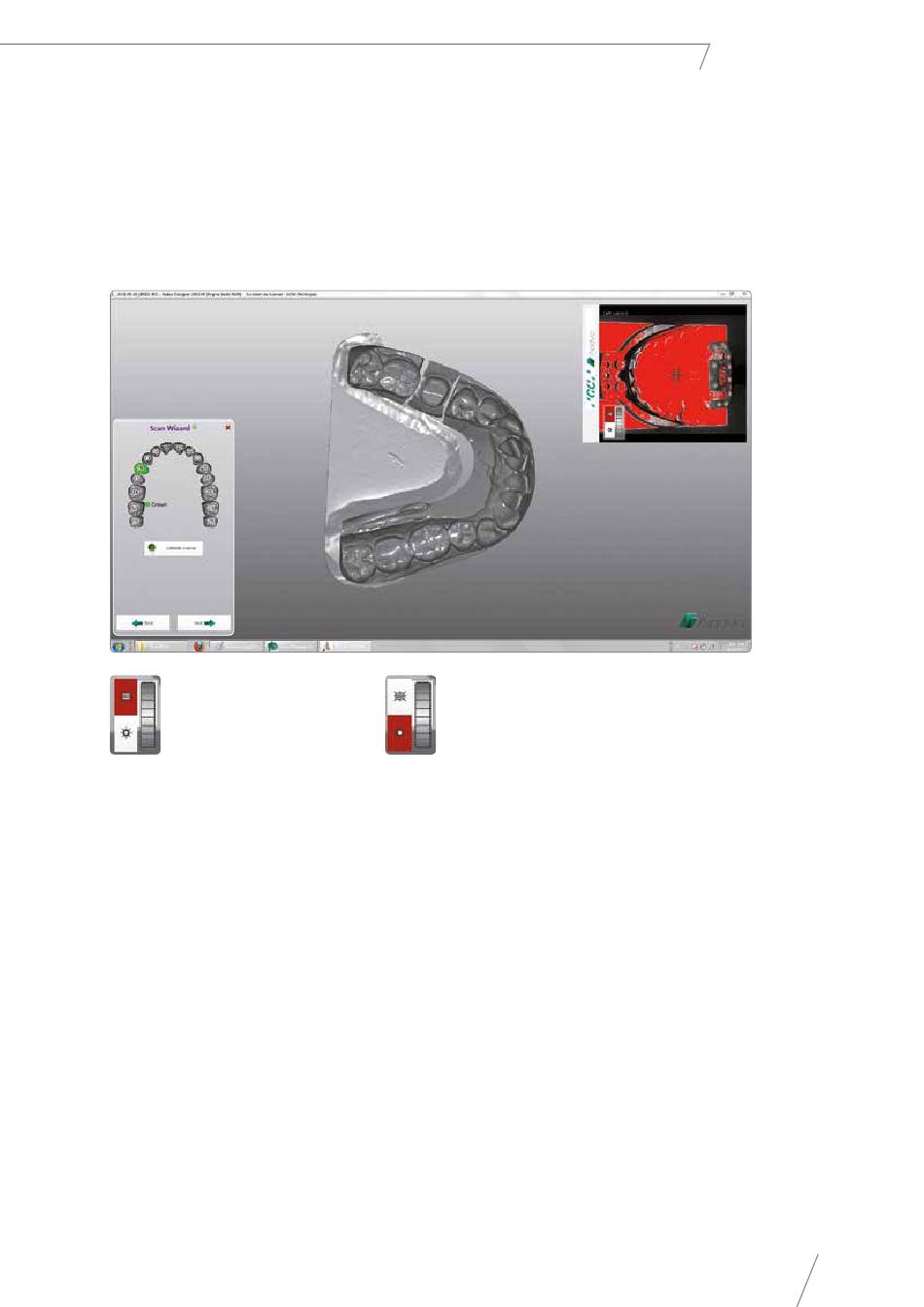

14. The scan software will now connect to the Aadva Lab Scan.
An image of what the sensor head finds on the scanner is displayed immediately.
If there are red areas on the dental model, you can adjust the exposure time using the adjustment setting
in the lower left hand section of the sensor head image (marked by a white margin in the image below).
Select the upper box to
adjust the exposure time
for measurements
After selecting the exposure setting, simply hold the mouse over the image and use the scroll wheel on the mouse
to make adjustments. Moving the wheel up increases the exposure time, moving it down decreases it.
To see the exact exposure time in milliseconds, click and drag the image of the wheel instead.
15. Besides adjusting the exposure setting, you can click on the dental model directly and use the scroll wheel on
the mouse to zoom in and out of the object.
Aadva LAB SCAN from GC
Select the lower box to
adjust the exposure time
for reference poi
