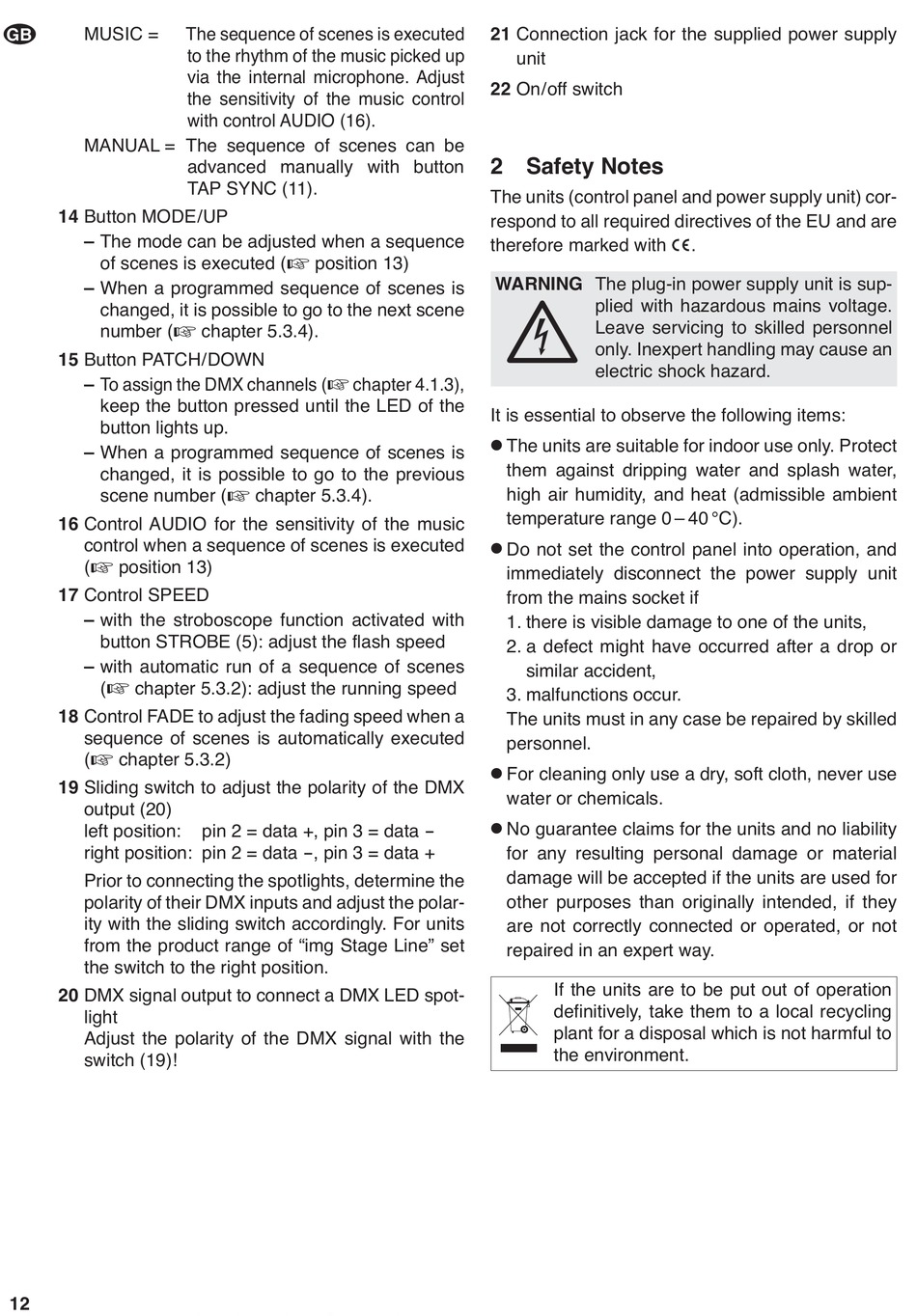

MUSIC =
GB
MANUAL = The sequence of scenes can be
14 Button MODE / UP
– The mode can be adjusted when a sequence
of scenes is executed (
– When a programmed sequence of scenes is
changed, it is possible to go to the next scene
number (
15 Button PATCH / DOWN
– To assign the DMX channels (
keep the button pressed until the LED of the
button lights up.
– When a programmed sequence of scenes is
changed, it is possible to go to the previous
scene number (
16 Control AUDIO for the sensitivity of the music
control when a sequence of scenes is executed
(
position 13)
17 Control SPEED
– with the stroboscope function activated with
button STROBE (5): adjust the flash speed
– with automatic run of a sequence of scenes
(
chapter 5.3.2): adjust the running speed
18 Control FADE to adjust the fading speed when a
sequence of scenes is automatically executed
(
chapter 5.3.2)
19 Sliding switch to adjust the polarity of the DMX
output (20)
left position:
right position: pin 2 = data -, pin 3 = data +
Prior to connecting the spotlights, determine the
polarity of their DMX inputs and adjust the polar-
ity with the sliding switch accordingly. For units
from the product range of "img Stage Line" set
the switch to the right position.
20 DMX signal output to connect a DMX LED spot-
light
Adjust the polarity of the DMX signal with the
switch (19)!
12
The sequence of scenes is executed
to the rhythm of the music picked up
via the internal microphone. Adjust
the sensitivity of the music control
with control AUDIO (16).
advanced manually with button
TAP SYNC (11).
position 13)
chapter 5.3.4).
chapter 4.1.3),
chapter 5.3.4).
pin 2 = data +, pin 3 = data -
21 Connection jack for the supplied power supply
unit
22 On / off switch

2 Safety Notes

The units (control panel and power supply unit) cor-
respond to all required directives of the EU and are
therefore marked with
WARNING The plug-in power supply unit is sup-
plied with hazardous mains voltage.
Leave servicing to skilled personnel
only. Inexpert handling may cause an
electric shock hazard.
It is essential to observe the following items:
G
The units are suitable for indoor use only. Protect
them against dripping water and splash water,
high air humidity, and heat (admissible ambient
temperature range 0 – 40 °C).
G
Do not set the control panel into operation, and
immediately disconnect the power supply unit
from the mains socket if
1. there is visible damage to one of the units,
2. a defect might have occurred after a drop or
similar accident,
3. malfunctions occur.
The units must in any case be repaired by skilled
personnel.
G
For cleaning only use a dry, soft cloth, never use
water or chemicals.
G
No guarantee claims for the units and no liability
for any resulting personal damage or material
damage will be accepted if the units are used for
other purposes than originally intended, if they
are not correctly connected or operated, or not
repaired in an expert way.
If the units are to be put out of operation
definitively, take them to a local recycling
plant for a disposal which is not harmful to
the environment.
.
