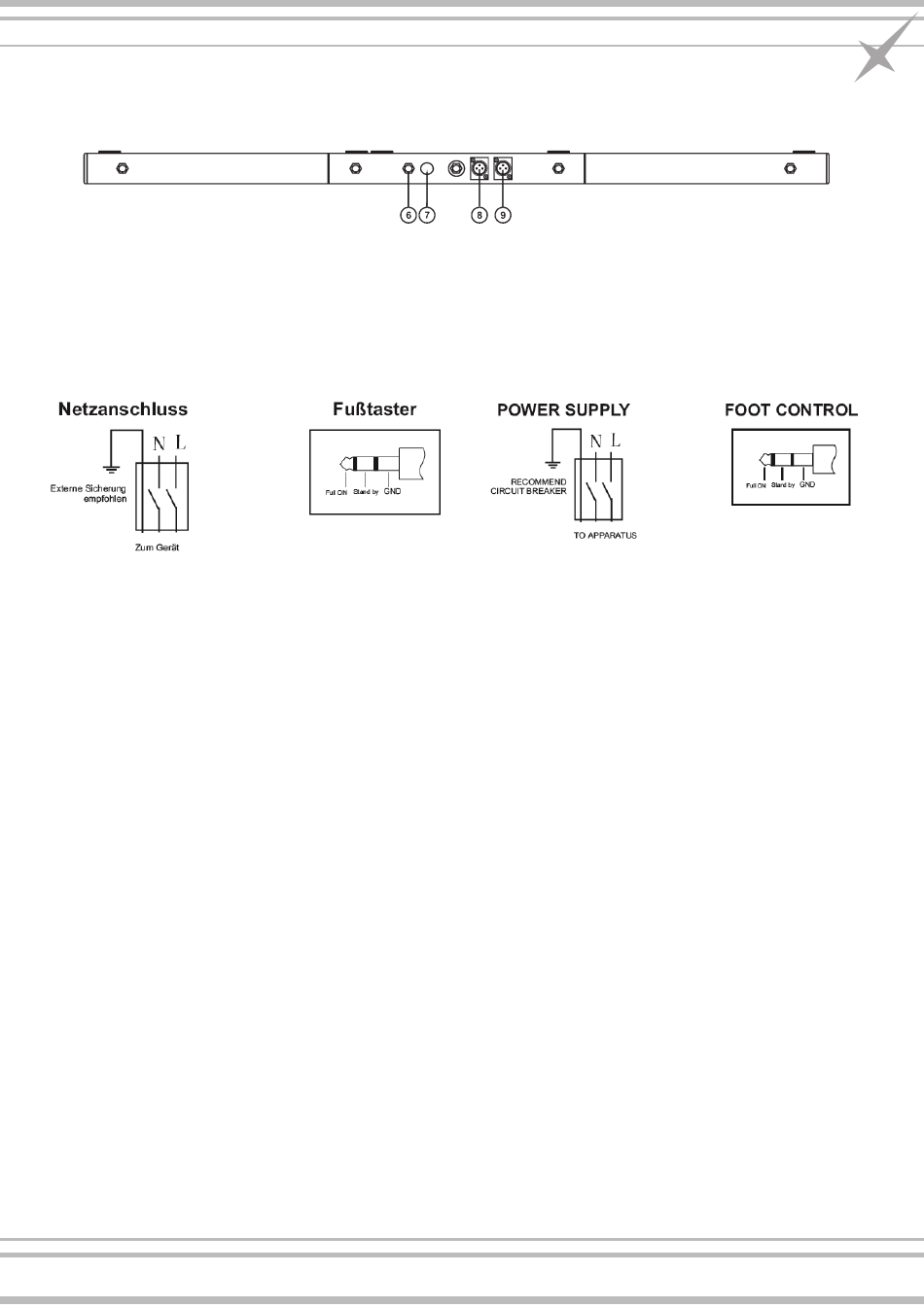

Unterseite
6. Fußschalter-Anschluss
7. Netzanschluss
8. DMX-Ausgangsbuchse
9. DMX-Eingangsbuchse
Anschlüsse
Musiksteuerung
Ihr Gerät verfügt über ein integriertes Kondensatormikrofon, welches das Audiosignal zur
automatischen Musiksteuerung aufnimmt - eine weitere Verbindung zur Signalquelle ist
somit nicht erforderlich.
Stromanschluss
Verbinden Sie den Netzstecker mit Ihrer Schutzkontaktsteckdose um die Bar mit Strom zu
versorgen.
Ausgangsanschlüsse
An die vier vorhandenen Schutzkontaktsteckdosen -2- können Sie Ihre Endgeräte
anschließen.
Hinweise:
- Überschreiten Sie niemals die maximale Nennleistung von 1150 W pro Kanal!
- Ferner sollte niemals der maximale Gesamtstromwert von 16 A überstiegen werden!
Fußschalter
Schließen Sie (optional) an den Fußschalter-Anschluss -6- einen Fuß-Taster an. Mittels
diesen können Sie dann die "Full On" oder "Stand By" Funktion steuern.
DMX-Anschluss:
- Installation einer seriellen DMX-Kette:
Verbinden Sie den DMX-Ausgang -8- Ihrer Bar mit dem DMX-Eingang des ersten
Gerätes. In dieser Reihenfolge schließen Sie nun alle weiteren Geräte an - also immer
vom Ausgang in den Eingang des nächsten Gerätes.
Hinweis:
Die entsprechenden Lichtprojektoren müssen auf die gewünschten Startadressen einge-
stellt werden, ansonsten stimmt die Kanalzuweisung nicht. Wenn Sie alle Projektoren
gleich adressieren, arbeiten sie synchron.
Bedienung
Ihr Chase 16 TBAR DMX lässt sich entweder als 4-Kanal Chase-Controller oder als DMX-
Dimmerpack verwenden.
I. Master-Modus
Im Master-Modus leuchtet die Master-LED auf. In diesem Modus steuert der Chase 16
TBAR DMX als Lauflicht-Controller die 4 Kanäle über insgesamt 6 verschiedene
Programme, jeweils mit oder ohne automatischer Musiksteuerung. In diesem Modus
erscheint auf dem Display das Wort "OUT"
Lower side
6. Foot switch connection
7. Mains connection
8. DMX OUT
9. DMX IN
Connections
Music control
Your device features an integrated capacitor microphone which records the audio signal
for the automatic music control; an additional connection with the signal source is
superfluous.
Power connections
Connect the mains plug with your shockproof socket to feed the bar with power.
Output connections
Use the four shockproof sockets -2- to hook up your terminal devices.
Notes:
- Never exceed the maximum overall power rating of 1150 W per channel!
- Also, never exceed the maximum total power value of 16 A!
Foot switch
Optional: Connect a foot switch to the foot switch connection -6-. Use this foot switch to
control the "Full On" or the "Standby" function.
DMX connection:
- Installation of a serial DMX chain:
Connect the DMX OUT -8- of your bar with the DMX IN of the first device. Continue these
steps for all additional devices; i.e. always from the output to the input of the next
device.
Note:
The respective light projectors must be set to the desired start addresses to ensure the
correct channel allocation. If all projectors are set to the same address they will be
operating in synchronous mode.
Operation
Your Chase 16 TBAR DMX can be used either as a 4 channel Chase Controller or as a DMX
dimmer pack.
I. Master Mode
When in Master Mode, the Master LED is on. In this mode the Chase 16 TBAR DMX controls
the 4 channels as a slidebar controller via 6 different programmes, either with or without
automatic music control. In this mode, the display always indicates "OUT".
