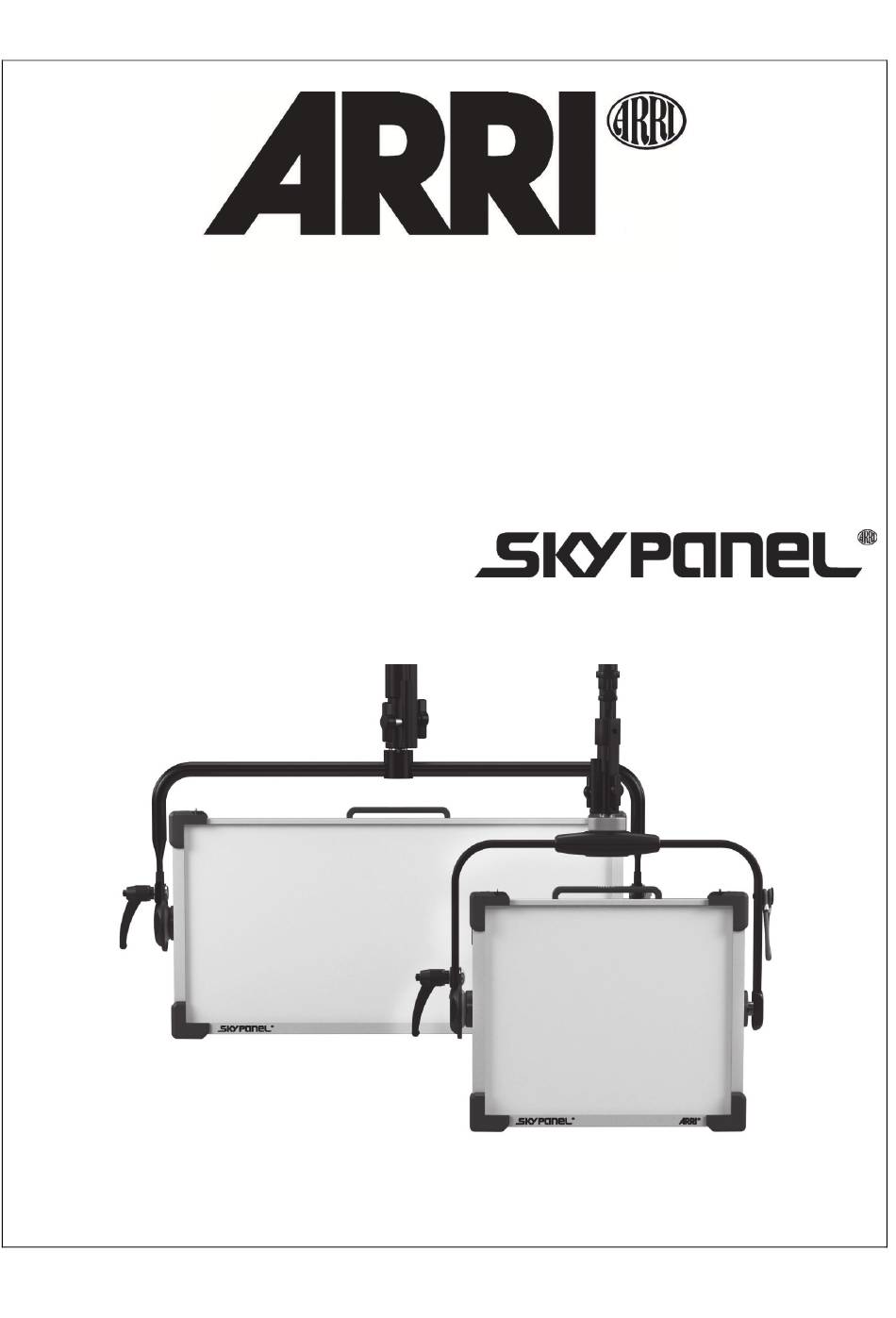

Kurzanleitung Short Instruction 10 / 2015 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG, Pulvermühle, D-83071 Stephanskirchen, Germany | www.arri.com Ident. No. L5.0006871 L02686...
Seite 2
VORSICHT – HOHE LICHTSTÄRKE! CAUTION – HIGH BEAM INTENSITY! ® ® Do not look into the light aperture of the SkyPanel Blicken Sie nicht in die Lichtaustrittsöffnung des SkyPanel Warnhinweise Warnings Decken Sie die Lüftungsöffnungen des Scheinwerfers oder des Do not cover the ventilation slots of the luminaire or the PSU.
Seite 3
Hinweis: Die Abbildung zeigt den S60. Die Komponenten gelten für alle Modelle. Note: The illustration shows an S60. The components are valid for all models. Aufhängezapfen / spigot DMX-Eingang / DMX input Haltebügel / Stirrup DMX-Ausgang / DMX through Bügelklemmung / tilt lock Netzwerkanschluss / Ethernet connector (RJ45 / EtherCon) Torsicherungen / top latches Bodenständer / Floor stand...
Seite 4
Die neueste Firmware sowie den ARRI Lighting Service Manager The latest firmware and the ARRI Lighting Service Manager software finden Sie im Download-Bereich der Internetseite www.arri.com zum tool are located in the download area of our website www.arri.com for kostenlosen Download. free download.
Seite 5
By switching the power switch on (or by applying the mains power on ® ® Netzspannung bei Flächenleuchten ohne Schalter) beginnt das SkyPanels without a power switch), the SkyPanel starts lighting ® SkyPanel nach kurzer Verzögerung mit derjenigen Einstellung, die after a short startup time with the same setting which had been active bei der letzten Abschaltung aktiv war, zu leuchten.
to open the preset-list Auswahl der Voreinstellung mit den SELECTOR Drehknopf Use the SELECTOR encoder to select a preset ® ® Technische Daten SkyPanel Technical data SkyPanel SkyPanel S30 SkyPanel S60 Leistungsaufnahme / power consumption 240 W max.
