ASSEMBLY
Turn off, unplug, and allow the steam cleaner to cool before removing its parts. Always have the nozzle pointed
away from you and the others during installation. See the "Accessories Chart" for suggested use and extensions
required.
STEAM NOZZLE
The steam nozzle is permanently attached to the body of the steamer and can be used for direct steam
application or to attach desired accessories. See "Accessory Chart" for which accessories can be attached.
EXTENSION FOR THE STEAM NOZZLE
How to attach and remove the extension nozzle
Fig. 1
How to attach and remove the hose
Fig. 2
Attaching other accessories to the hose / extension nozzle
1. Once the hose is attached, you can attach together accessories to the Hose (see "Accessory Table").
First install the extension nozzle on the steam nozzle of the hose. As soon as the extension nozzle is
firmly attached, you can add desired extension accessory. Align the markers on the extension nozzle
and the desired accessory and rotate clockwise until it clicks in place.
2. Remove the accessories by turning it counter-clockwise and gently pulling it out of the extension nozzle.
See the "Cleaning and Maintenance" for cleaning instructions.
7 8

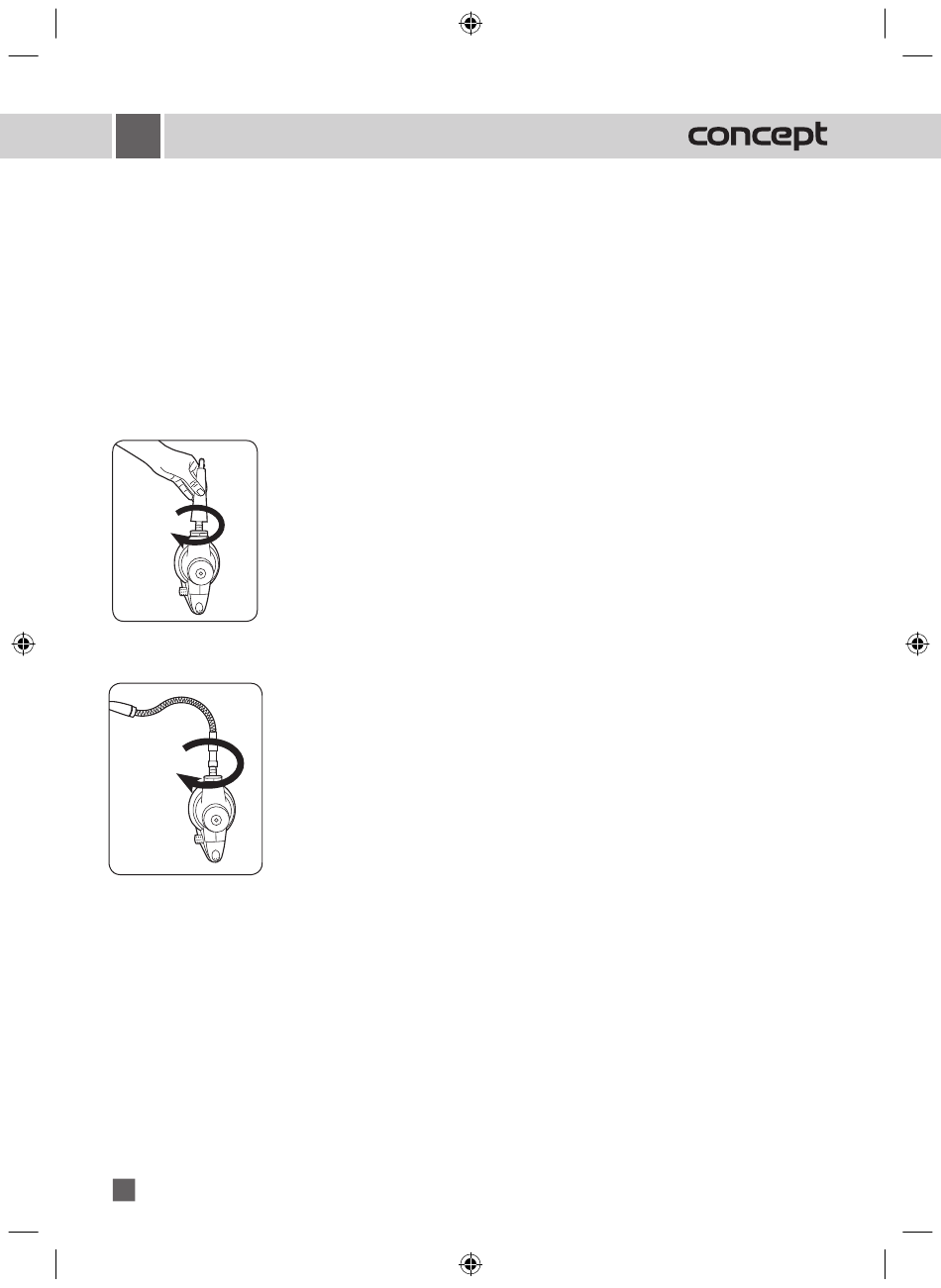

1. Install the extension nozzle on the steam nozzle of the steam cleaner
(Fig. 1). Align the marks on the steam nozzle and the extension nozzle and
rotate the extension piece clockwise until it clicks into place. Once the
extension nozzle is installed, you can use it separately for direct application
or as an attachment for additional accessories. In the "Accessories Table",
you can find a list of accessories that can be attached to the extension
nozzle.
2. To remove extension nozzle, rotate counter-clockwise and gently pull
away from the steam cleaner.
1. Install the hose with integrated handle on the steam nozzle of the steam
cleaner (Fig. 2). Align the marks on the nozzle and on the hose and turn
the extension clockwise until it clicks into place.
2. To remove the hose, press the release button at the base of hose and
rotate counter- clockwise and pull it away.
