Recommendations for a proper access to model

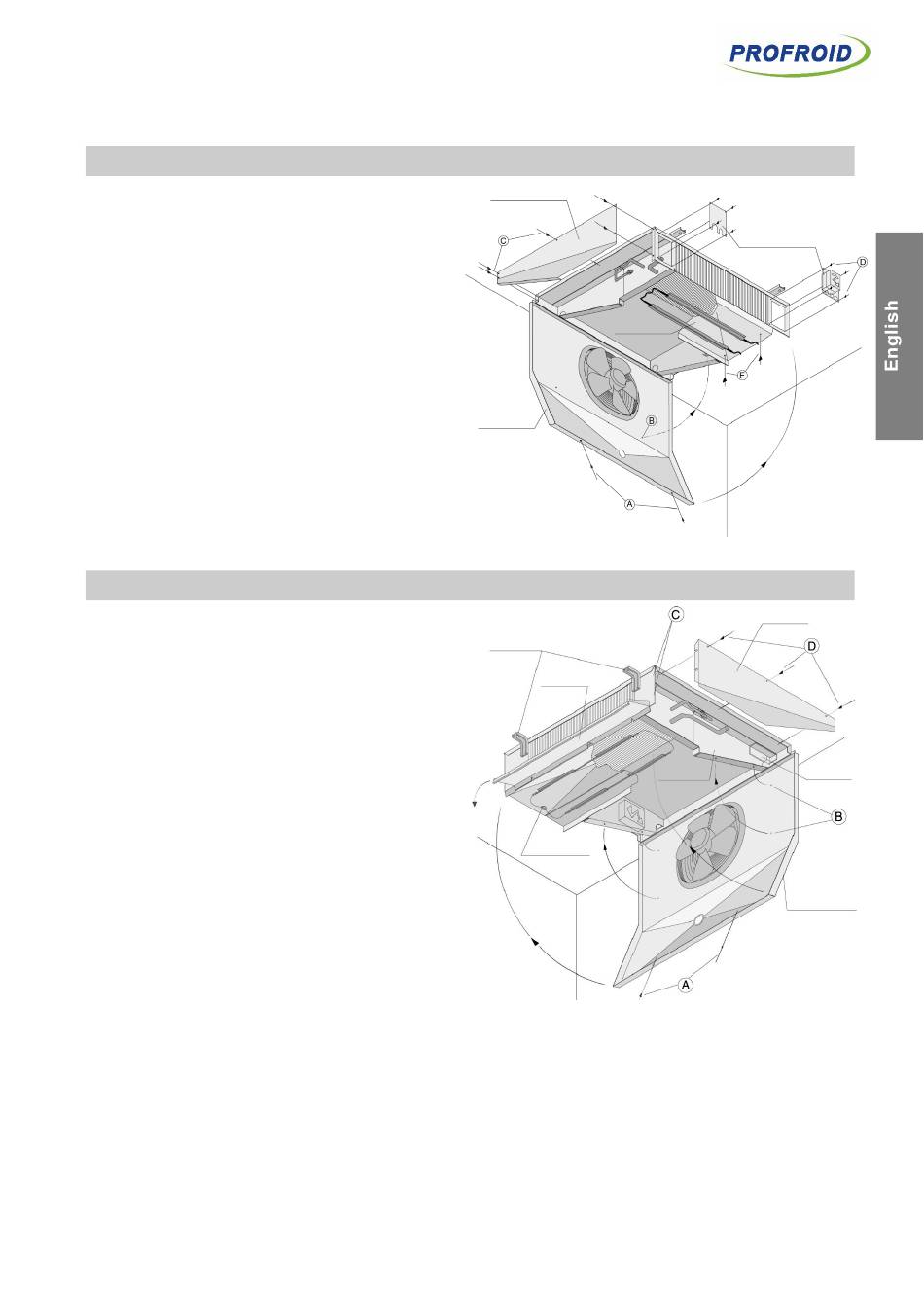

SOLO 25 XS - Model with ø 250 mm fan motors
Access
1. Disconnect drain connection and ensure that it does not ham-
per with the handling of the fan shroud.
2. Unfasten screws "A" and "B" that secure the fan shroud to the
casing and carefully bring the fan shroud to the position
shown in drawing.
3. Unfasten screws "C" and remove side panels.
4. To reach the heater positioned under the coil, remove drip
tray secured with screws "E".
5. In order open the heater terminal box, remove the self-threa-
ded screws "D" that fasten the right-hand side front cover.
6. For quick access to header side of coil, remove self-threaded
screws "D" that fasten the left-hand side front cover.
Remounting
1. Refasten drip tray with screws "E".
2. Place front covers back and fasten them with screws "D".
3. Refasten side panels with screws "C"
4. When closing the fan shroud it is necessary position the side
panels inside, subsequently fasten it with screws "A" and "B".
5. Reconnect condensate drain connection.
SOLO 31 XS - Model with ø 315 mm fan motors
Access
1. Disconnect drain connection and ensure that it does not ham-
per with the handling of the fan shroud.
2. Loosen and remove fastening screws "A" of fan shroud to
inner drip tray; loosen and remove fastening screws "B" from
inner side panel, remove baffle and bring fan shroud to the
position shown in drawing.
3. Loosen the self threading screws "D", without removing com-
pletely.
4. Loosen and remove self threading screws "D", then remove
side panel.
Remounting
1. Reposition side panel and fasten with screws "C" and "D".
2. Return fan shroud to its original position ensuring that the
side panels are inside and fasten with screws "B".
3. Reposition baffle and fasten screws "A" to the inner drip tray.
4. Reconnect drain connection.
Side
panel
Inner drip tray
Fan shroud
Rear
brackets
Baffle
Inner drip tray
Frontal
cover
Side panel
Inner side Front
panel brackets
Fan shroud
