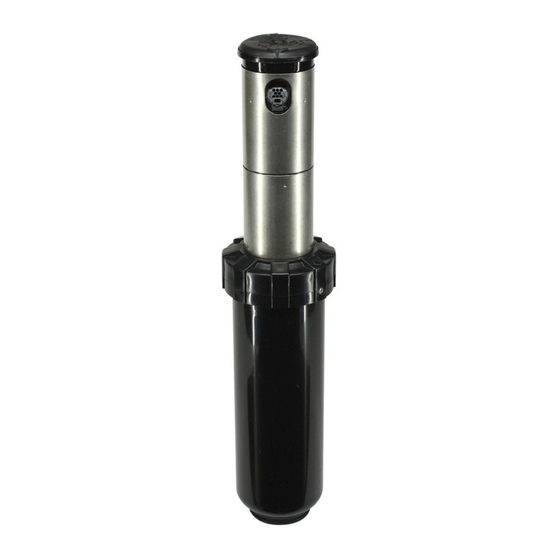

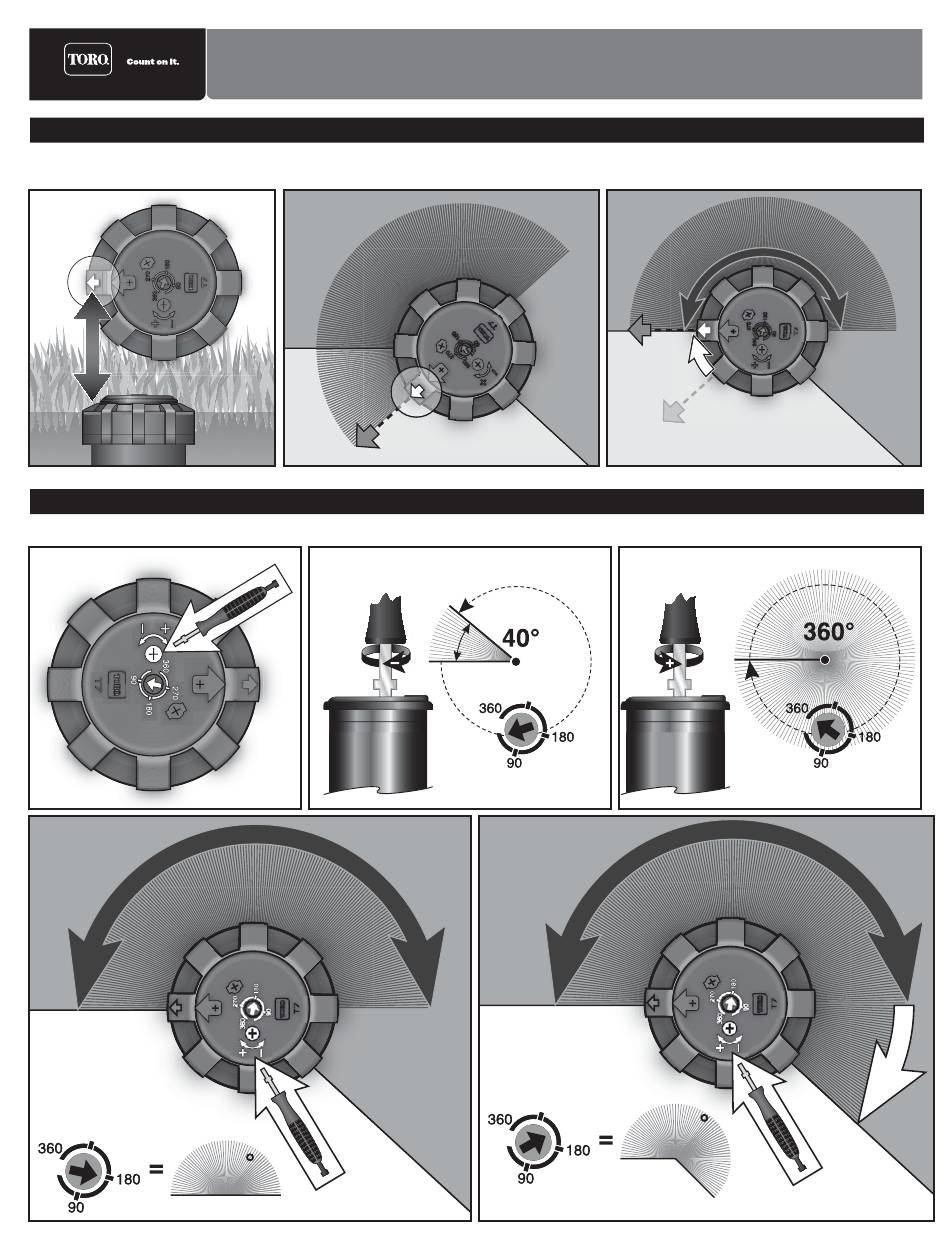

To position the left stop:
The fixed left stop is indicated by the arrow on the sprinkler cap. Align the fixed stop to the left border by turning the sprinkler body.
The right stop is adjustable from 40º–360º.
Left Stop
Indicator
To adjust the spray arc:
To adjust the right stop, insert tool blade into cap. Turn blade left to decrease arc; right to increase arc.
180
T7 Series Rotor User's Guide
T7 Series Rotor User's Guide
Left Stop
Indicator
Spray arc can be decreased down to 40º.
Left stop adjusted to
the left watering border.
Spray arc can be increased up to 360º.
225
Right stop increased to match the right watering border.
