ORDER:

Type Input Output
2204 0...20 mA : A Special
4...20 mA : B 0...20 mA
0...1 V : C 4...20 mA
0.2...1 V : D 0...5 mA
0...10 V : E 0...1 V
2...10 V : F 0.2...1 V
Special : X 0...10 V
2...10 V

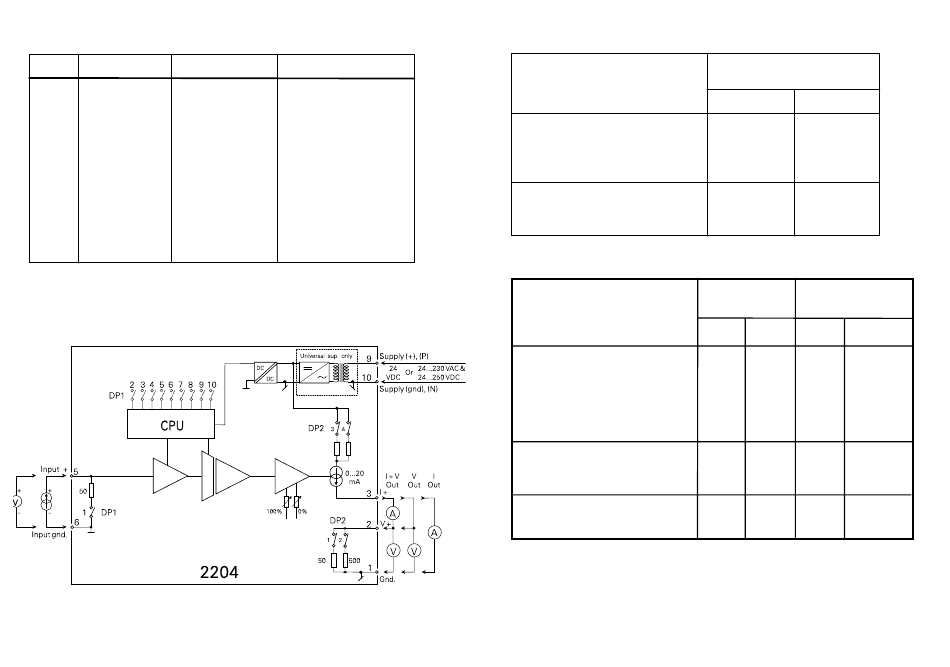

BLOCK DIAGRAM:

20
Supply
: 0 24 VDC : D
: 1 24...230 VAC &
: 2 24...250 VDC : P
: 3
: 4
: 5
: 6
: 7

PROGRAMMING:

INPUT
PROGRAMMING
0...5 mA
0...20 mA
0...1 V
0...2.5 V
0...10 V
For 20% offset on input,
set DP1 SW5 ON
e.g. input 4...20 mA
OUTPUT
PROGRAMMING
0...5 mA
0...20 mA
0...5 mA / 0...250 mV
0...20 mA / 0...1 V
0...5 mA / 0...2.5 V
0...20 mA / 0...10 V
For 20% offset on output,
set DP1 SW9 ON
e.g. output 4...20 mA
For reversed output set DP1,
SW10 ON e.g. output 20...4 mA
Note: At other spans than the above-mentioned, DP1 and DP2 have a different
setting which applies to the delivered special range.
DP1 (10-pole)
SW 1, 2, 3, 4, 5
SW ON SW OFF
1, 3 2, 4, 5
1, 4 2, 3, 5
2, 3 1, 4, 5
2, 4 1, 3, 5
2, 3, 4 1, 5
1, 4, 5 2, 3
DP2 (4-pole) DP1 (10-pole)
SW 1 - 4 SW 6, 7, 8, 9, 10
SW ON SW OFF ON OFF
4 1, 2, 3 7 6, 8, 9, 10
3 1, 2, 4 8 6, 7, 9, 10
1, 4 2, 3 6 7, 8, 9, 10
1, 3 2, 4 6, 7 8, 9, 10
2, 4 1, 3 6, 8 7, 9, 10
2, 3 1, 4 6, 7, 8
3 1, 2, 4 8, 9 6, 7, 10
3 1, 2, 4 8, 9, 10 5, 6, 7
9, 10
