Assembly

Device installation – installation of the valve
Install the valve in the conduit according to the labeling and the sketch below. Use adapter
unions. Threaded connections should be sealed only with Teflon strip. Although the device is
functional in any position, it must not be installed with the actuator facing down. If the
difference in level between system and tank exceeds 3 meters, stop valves or non-return
valves should be installed to prevent severe damage to the actuator and the valve due to
excessive pressure and flow.
As filter medium can be washed out during backwashing and rinsing, we recommend fitting
the drain with a throttle. Otherwise a stuck valve disk can adversely affect the flawless
functioning of the Aquastar. Polluted or grainy filtering media require the use of adequate pre
filters.
Important! During a cycle the filter pump motor must be shut off!
The Praher Aquastar Easy is approved for 6-way valves by Praher. Malfunctions can
occur with any other valve type as we are unable to guarantee that these valves match
the dimensions of the Praher 6-way valves.

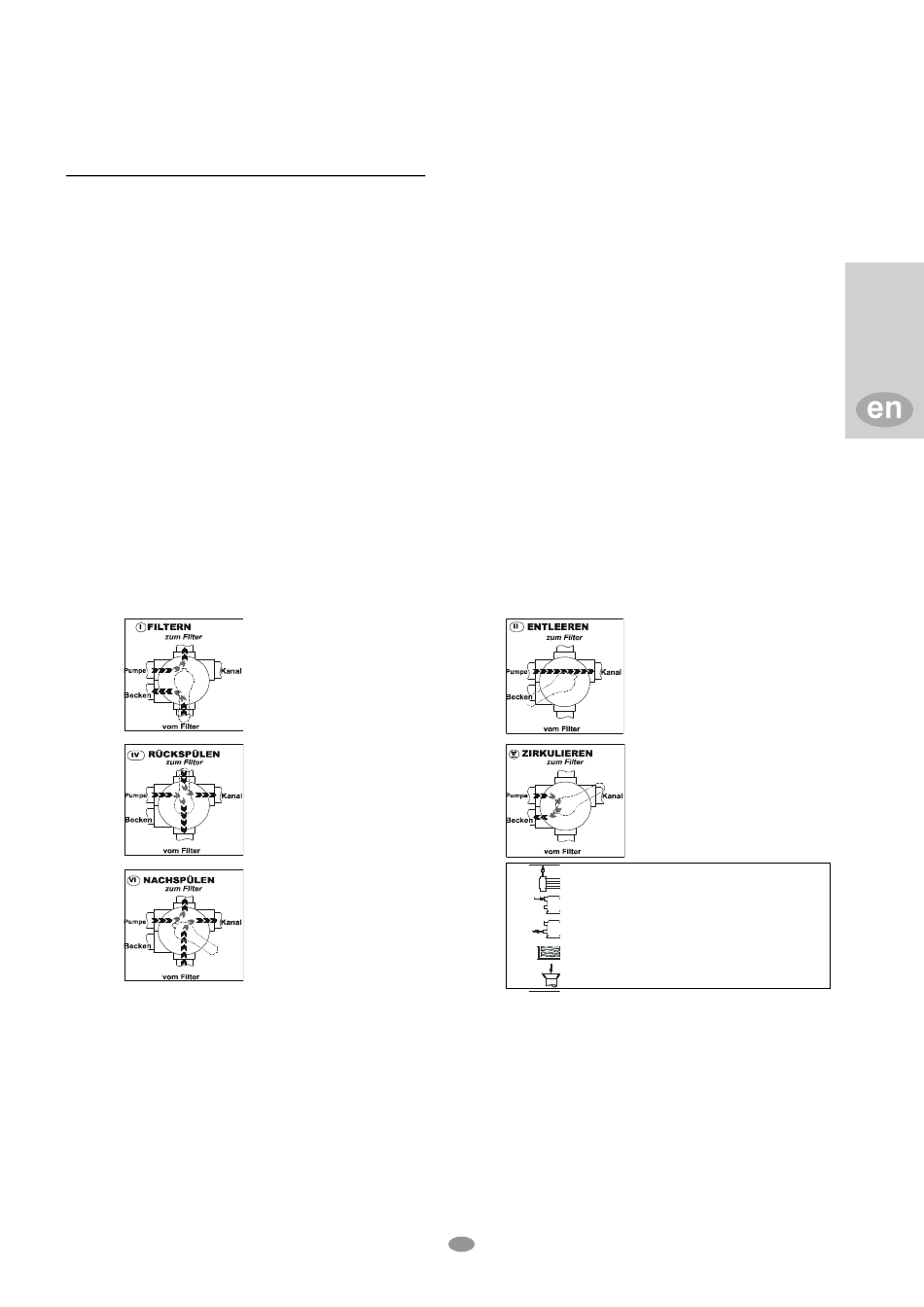

9.1 Function- and installation diagram

6 way valve type:
Connections:
Max. operating pressure:
Filtering the medium (i.e. water)
Filtern der Flüssigkeit
(z.B. Wasser)
Pool → Pump → Valve (towards
Becken Pumpe Ventil
filter) → Filter → Valve (away
(zum Filter) Filter
from Filter) → Pool
Ventil (vom Filter)
Becken
Cleaning filter medium
Filtermedium reinigen (z.B.
Sand) im Gegenstrom
(i.e. sand) in counter flow
(umgekehrte Durchfluss-
(reversed flow direction in filter)
richtung im Filter)
Pool → Pump
Becken Pumpe Ventil
→ Valve (away from filter) → Filter
(vom Filter) Filter
→ Valve (towards filter) → sewer
Ventil (zum Filter) Kanal
=Klarspülen Cleaning filter medium
Filtermedium reinigen(z.B.
(i.e. sand) after backwash cycle
Sand) nach dem Rück-
spülen
Pool → Pump
→ Valve (towards filter) → Filter
Becken Pumpe Ventil
→
Valve (away from filter) → sewer
(zum Filter) Filter
Ventil (vom Filter) Kanal
11/2" und 2"
thread or solvent socket (all connections open)
ABS 11/2", 2"
GFK 11/2", 2"
Entleeren vom Becken
mit der Pumpe
Becken
Ventil
Umpumpen der Flüssigkeit
ohne Filter (Filter ist
überbrückt)
Becken
Pump
Pump
Top
Top
Bottom
Bottom
Return Return
Waste
Waste
3,5 bar
6 bar
9
Draining of the pool
with the pump
Pumpe
Pool → Pump
Kanal
→ Valve → Sewer
Circulating the medium
without Filter (Filter is bypassed)
Pool → Pump
Pumpe Ventil
→ Valve → Pool
Becken
→ away from pump
von Pumpe
→ towards filter
zum Filter
→ away from filter
vom Filter
→ towards pool
zum Becken
zum Kanal → towards sewer
