Intellitherm C31
Weekly programmable thermostat

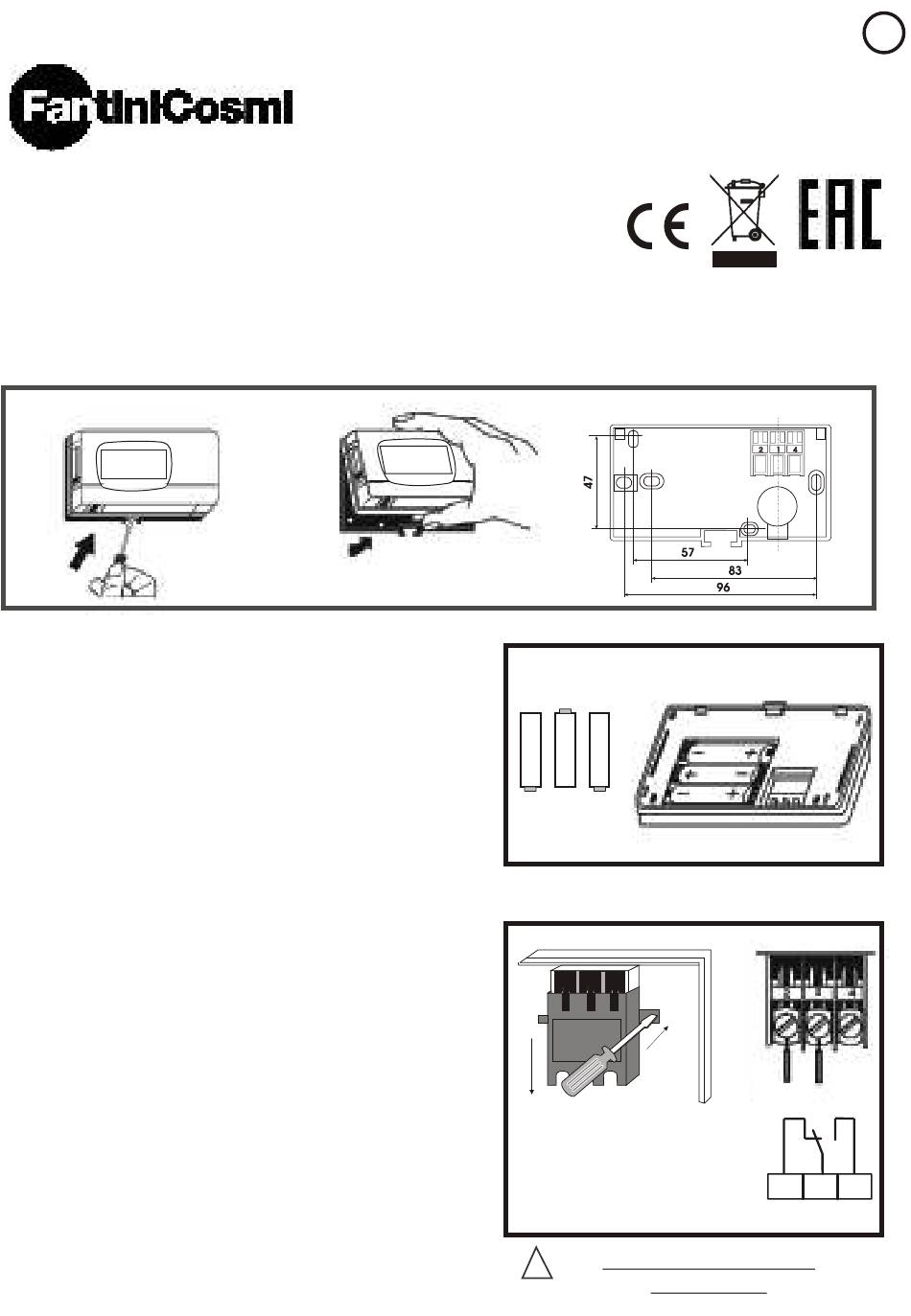

FASTENING
Install the chronothermostat by fastening the base to the wall at 1.5 metres above the floor level, with
or without recessed box and far from kitchen ranges, sources of heat, windows, doors, etc.
IMPORTANT: Make sure the base secured to the wall is level and not deformed.
1-Press the fastener
with a screwdriver
BATTERIES
Fit three high-quality long life alkaline AA 1.5 V stylus
batteries respecting the specified bias.
Batteries could last approximately two years. When
batteries begin to run down, the display will start to
flash
Should batteries be not replaced within 15 days,
Intellitherm C31 will turn off automatically and the
display will only show the word OFF.
CONNECTIONS
Connect terminals 1 - 2 to the heating system with two
wires thus replacing the traditional thermostat at any
time and without adding further connections. When the
ambient temperature increases, the relay will open con-
tact 1 - 2 and will close contact 1-4. Terminal 4 is free
and it may be used for signalling or for air-conditioning
systems by fitting an external switch.
Via dell'Osio, 6 - 20090 Caleppio di Settala (MI) - ITALY
Phone no. +39 02 95682222 Fax no. +39 02 95307006
e-mail: e xport@fantinicosmi.it http//www.fantinicosmi.com
2-Turn the device
body
1,5
-
+
Press with a screwdriver
and remove the protection
case by pulling it
downwards
!
5
Drilling centre distances
-
+
- +
To be installed by qualified
personnel only
UK
2 1 4
