Note:

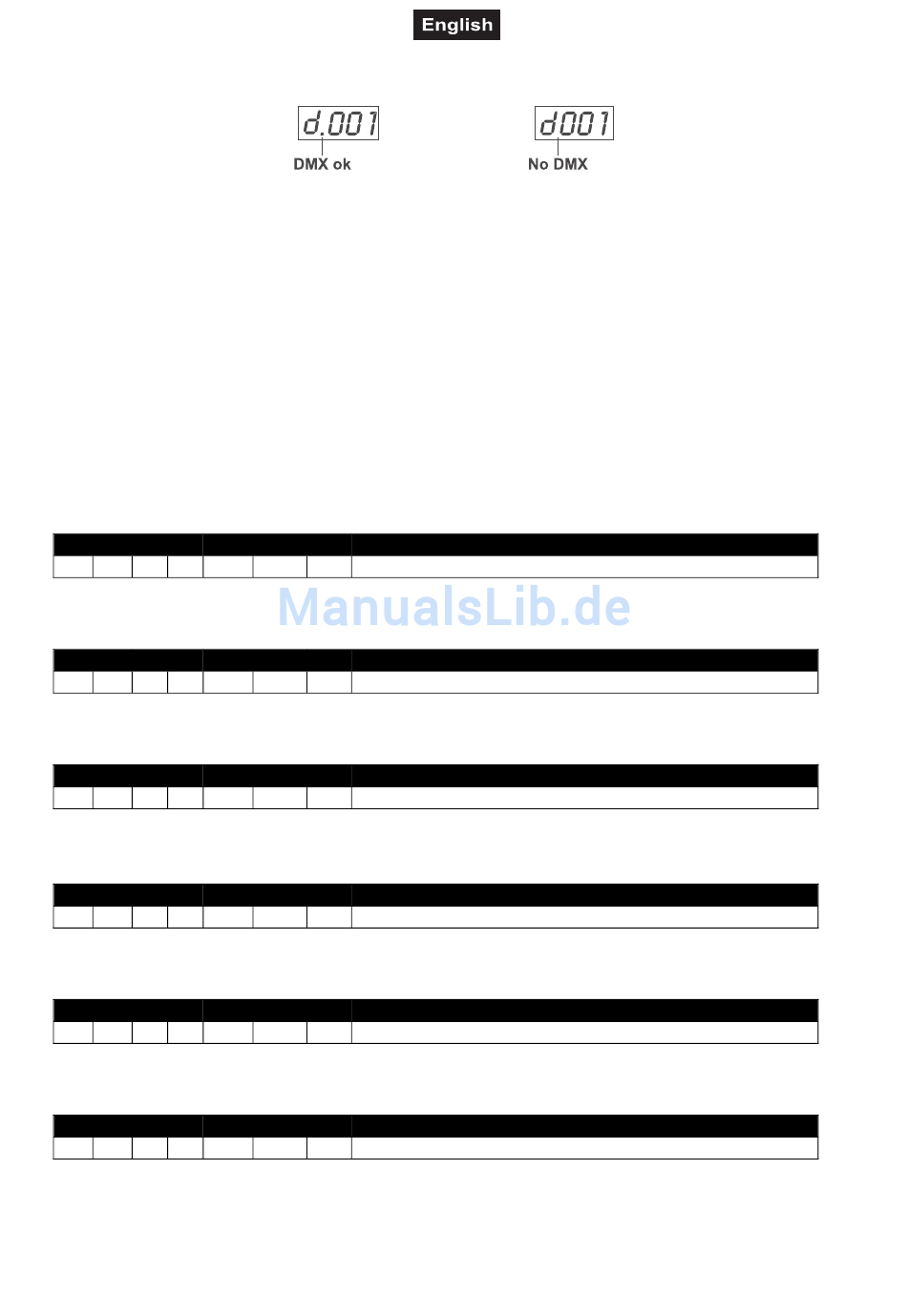

The modes of DMX512 data are shown via the display of the device:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data
is received, the display will show "d.001" with the actually set address. If there is no data received at the
DMX-input, the display will show "d001" with the actually set address.
This situation can occur if:
- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the wireless receiver is not logged in to the wireless transmitter or no wireless DMX signal is received.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.

DMX Protocol

6 channel mode
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Decimal Hexad. Percentage S/F
0 255 00 FF 0% 100%
Control-channel 1 - Red
F Red (0=off, 255=100% red)
Control-channel 2 - Green
F Green (0=off, 255=100% green)
Control-channel 3 - Blue
F Blue (0=off, 255=100% blue)
Control-channel 4 - Amber
F Amber (0=off, 255=100% amber)
Control-channel 5 - White
F White (0=off, 255=100% white)
Control-channel 6 - UV
F UV (0=off, 255=100% UV)
35/40
Feature
Feature
Feature
Feature
Feature
Feature
00088947.DOC, Version 1.1
