Scope of delivery and installation position

GU-SECURY Automatic with A-opener
Bag of connecting cable (from A-opener to distribution box)

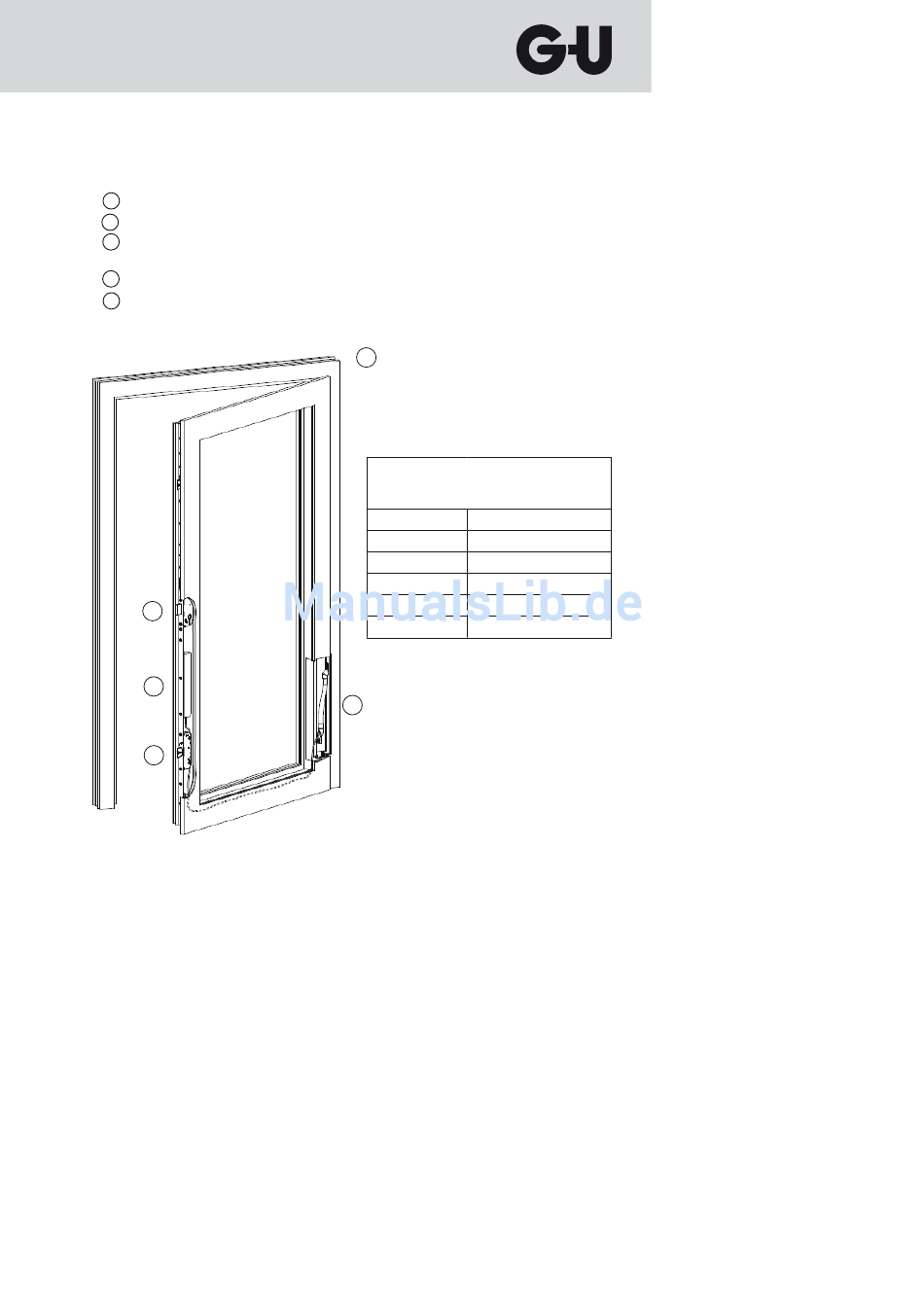

Installation position as shown in drawing below
1
Automatic latchbolts
2
Deadbolt of central lock
3
A-opener with connecting cable (approx. 6 m incl. plug for A-opener and wire end
sleeves on side of distribution box)
4
Cable duct not included in delivery (SECUREconnect)
5
Distribution box and 3-wire cable from distribution box to be provided by customer
(see chapter „3 Operating parameters" on page 16)
2
3
1
