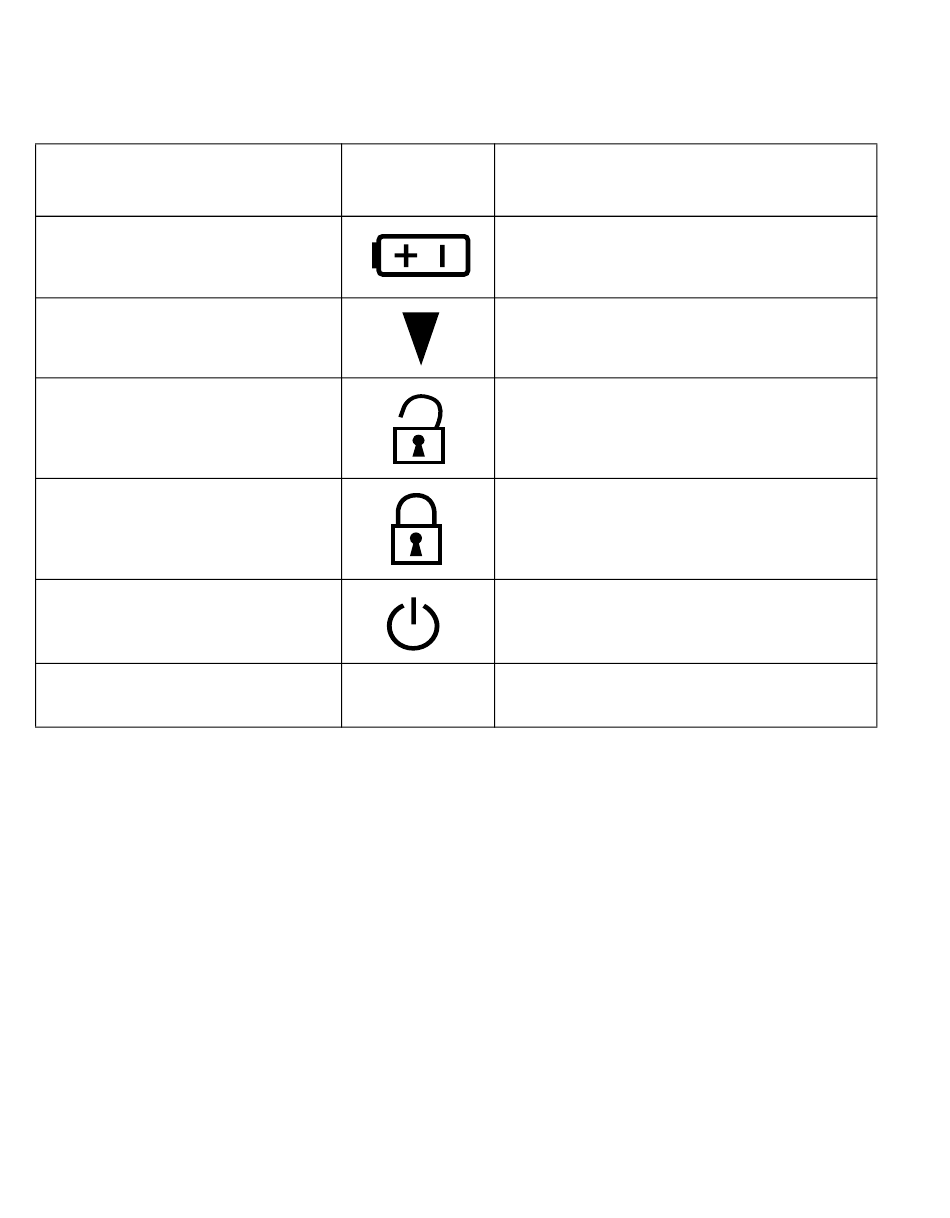

In addition to the connector and interface icons, there are a number of icons that illustrate
component orientation and buttons. These icons are illustrated in Table 1-3.
Icon Description
Battery
Battery Release Button
Battery Release Latch, Open
Battery Release Latch, Closed
Suspend/Resume Button
Reset Button
14 Getting Started
Table 1-3 Additional System Icons
Icon
Illustration
No icon
Purpose
Indicates the location of the removable
battery cover.
Indicates the battery release button.
Indicates the position of the battery latch
that releases the battery.
Indicates the position of the battery latch
that secures the battery.
Indicates the Suspend/Resume button.
Powers down the system in the event of
system difficulty.
