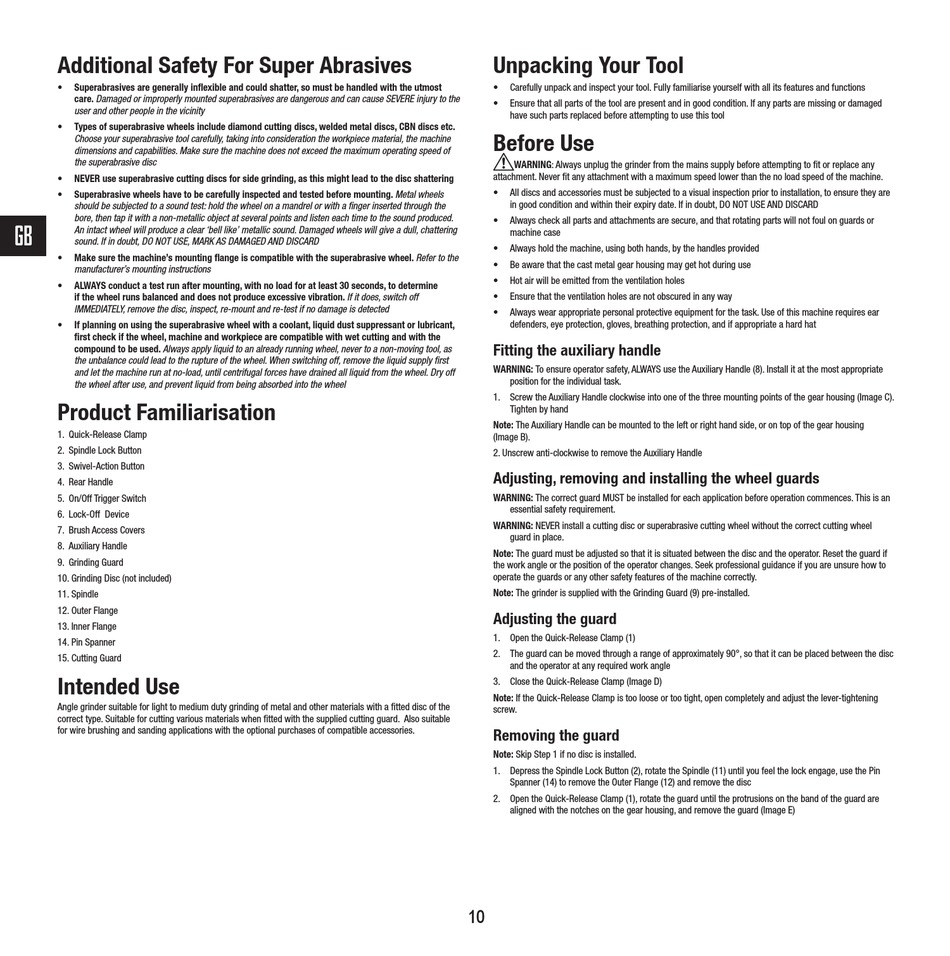

Additional Safety For Super Abrasives
Superabrasives are generally inflexible and could shatter, so must be handled with the utmost
care. Damaged or improperly mounted superabrasives are dangerous and can cause SEVERE injury to the
user and other people in the vicinity
Types of superabrasive wheels include diamond cutting discs, welded metal discs, CBN discs etc.
Choose your superabrasive tool carefully, taking into consideration the workpiece material, the machine
dimensions and capabilities. Make sure the machine does not exceed the maximum operating speed of
the superabrasive disc
NEVER use superabrasive cutting discs for side grinding, as this might lead to the disc shattering
Superabrasive wheels have to be carefully inspected and tested before mounting. Metal wheels
should be subjected to a sound test: hold the wheel on a mandrel or with a finger inserted through the
bore, then tap it with a non-metallic object at several points and listen each time to the sound produced.
GB
An intact wheel will produce a clear 'bell like' metallic sound. Damaged wheels will give a dull, chattering
sound. If in doubt, DO NOT USE, MARK AS DAMAGED AND DISCARD
Make sure the machine's mounting flange is compatible with the superabrasive wheel. Refer to the
manufacturer's mounting instructions
ALWAYS conduct a test run after mounting, with no load for at least 30 seconds, to determine
if the wheel runs balanced and does not produce excessive vibration. If it does, switch off
IMMEDIATELY, remove the disc, inspect, re-mount and re-test if no damage is detected
If planning on using the superabrasive wheel with a coolant, liquid dust suppressant or lubricant,
first check if the wheel, machine and workpiece are compatible with wet cutting and with the
compound to be used. Always apply liquid to an already running wheel, never to a non-moving tool, as
the unbalance could lead to the rupture of the wheel. When switching off, remove the liquid supply first
and let the machine run at no-load, until centrifugal forces have drained all liquid from the wheel. Dry off
the wheel after use, and prevent liquid from being absorbed into the wheel

Product Familiarisation

1. Quick-Release Clamp
2. Spindle Lock Button
3. Swivel-Action Button
4. Rear Handle
5. On/Off Trigger Switch
6. Lock-Off Device
7. Brush Access Covers
8. Auxiliary Handle
9. Grinding Guard
10. Grinding Disc (not included)
11. Spindle
12. Outer Flange
13. Inner Flange
14. Pin Spanner
15. Cutting Guard
Intended Use
Angle grinder suitable for light to medium duty grinding of metal and other materials with a fitted disc of the
correct type. Suitable for cutting various materials when fitted with the supplied cutting guard. Also suitable
for wire brushing and sanding applications with the optional purchases of compatible accessories.
Unpacking Your Tool
Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged
have such parts replaced before attempting to use this tool
Before Use
WARNING: Always unplug the grinder from the mains supply before attempting to fit or replace any
attachment. Never fit any attachment with a maximum speed lower than the no load speed of the machine.
All discs and accessories must be subjected to a visual inspection prior to installation, to ensure they are
in good condition and within their expiry date. If in doubt, DO NOT USE AND DISCARD
Always check all parts and attachments are secure, and that rotating parts will not foul on guards or
machine case
Always hold the machine, using both hands, by the handles provided
Be aware that the cast metal gear housing may get hot during use
Hot air will be emitted from the ventilation holes
Ensure that the ventilation holes are not obscured in any way
Always wear appropriate personal protective equipment for the task. Use of this machine requires ear
defenders, eye protection, gloves, breathing protection, and if appropriate a hard hat
Fitting the auxiliary handle
WARNING: To ensure operator safety, ALWAYS use the Auxiliary Handle (8). Install it at the most appropriate
position for the individual task.
1. Screw the Auxiliary Handle clockwise into one of the three mounting points of the gear housing (Image C).
Tighten by hand
Note: The Auxiliary Handle can be mounted to the left or right hand side, or on top of the gear housing
(Image B).
2. Unscrew anti-clockwise to remove the Auxiliary Handle
Adjusting, removing and installing the wheel guards
WARNING: The correct guard MUST be installed for each application before operation commences. This is an
essential safety requirement.
WARNING: NEVER install a cutting disc or superabrasive cutting wheel without the correct cutting wheel
guard in place.
Note: The guard must be adjusted so that it is situated between the disc and the operator. Reset the guard if
the work angle or the position of the operator changes. Seek professional guidance if you are unsure how to
operate the guards or any other safety features of the machine correctly.
Note: The grinder is supplied with the Grinding Guard (9) pre-installed.
Adjusting the guard
1. Open the Quick-Release Clamp (1)
2. The guard can be moved through a range of approximately 90°, so that it can be placed between the disc
and the operator at any required work angle
3. Close the Quick-Release Clamp (Image D)
Note: If the Quick-Release Clamp is too loose or too tight, open completely and adjust the lever-tightening
screw.
Removing the guard
Note: Skip Step 1 if no disc is installed.
1. Depress the Spindle Lock Button (2), rotate the Spindle (11) until you feel the lock engage, use the Pin
Spanner (14) to remove the Outer Flange (12) and remove the disc
2. Open the Quick-Release Clamp (1), rotate the guard until the protrusions on the band of the guard are
aligned with the notches on the gear housing, and remove the guard (Image E)
