Master configuration
The Profibus-DP master (e.g. PLC) must be config-
ured according to the specifications of the Profibus-
DP master in question.
Data transmission and system demands
As the DP protocol does not transmit data via
objects. Consequently, the G100 uses a superim-
posed telegram format for the DP protocol. This tele-
gram format must be implemented in the Profibus-
DP master by the system integrator.

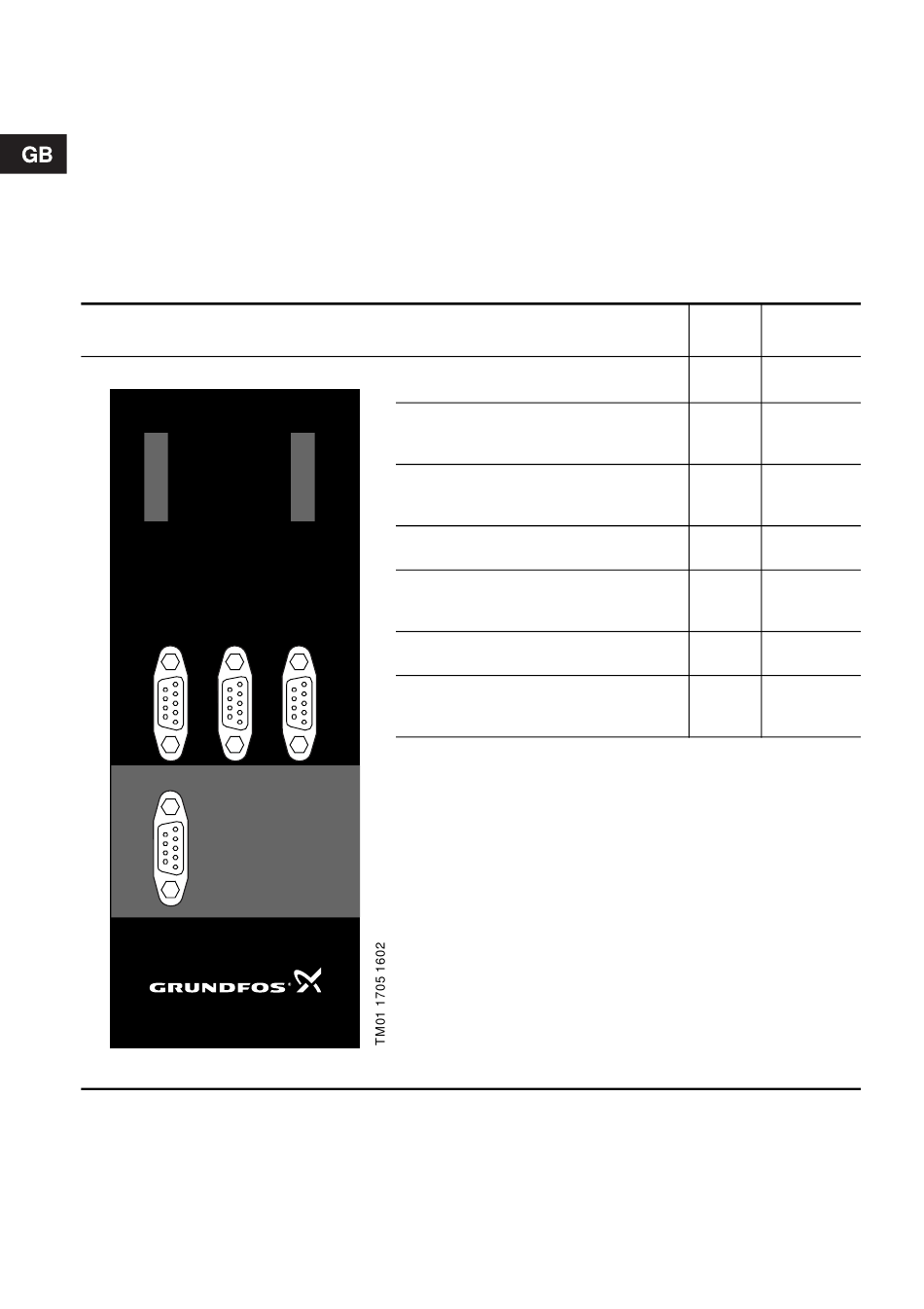

4.2 Profibus-DP front cover

Front cover
Power
Power MNC
Power Geni
Geni TxD
Geni RxD
Fault
G100 Gateway
Genibus DI
Profibus
Main
Network
Connection
8
Light-emitting diodes:
Operating/fault indications
POWER:
The G100 is powered.
POWER MNC:
The network communication chip to the
DES
main network is powered.
POWER GENI:
The GENIbus RS-485 communication
chips are powered.
GENI TxD:
Data is sent via GENIbus RS-485.
GENI RxD:
Data is received from GENIbus
RS-485.
Service
FAULT:
Data memory fault.
DES:
Data Exchange State.
Connection to DP network is OK.
G100 connectors
• GENIbus
• DI
• Service
See section 4.3 G100 common connectors.
• Main Network Connection: See section 4.4 Profibus-DP
connector.
Reference: The telegram format is described in the
"G100 Support Files" CD-ROM supplied with the
G100. The necessary GSD file for the DP master is
also available on the CD-ROM.
Normal
Colour
condition
Perma-
Green
nently on
Perma-
Green
nently on
Perma-
Green
nently on
Yellow Flashing
Yellow Flashing
Red Off
Perma-
Green
nently on
