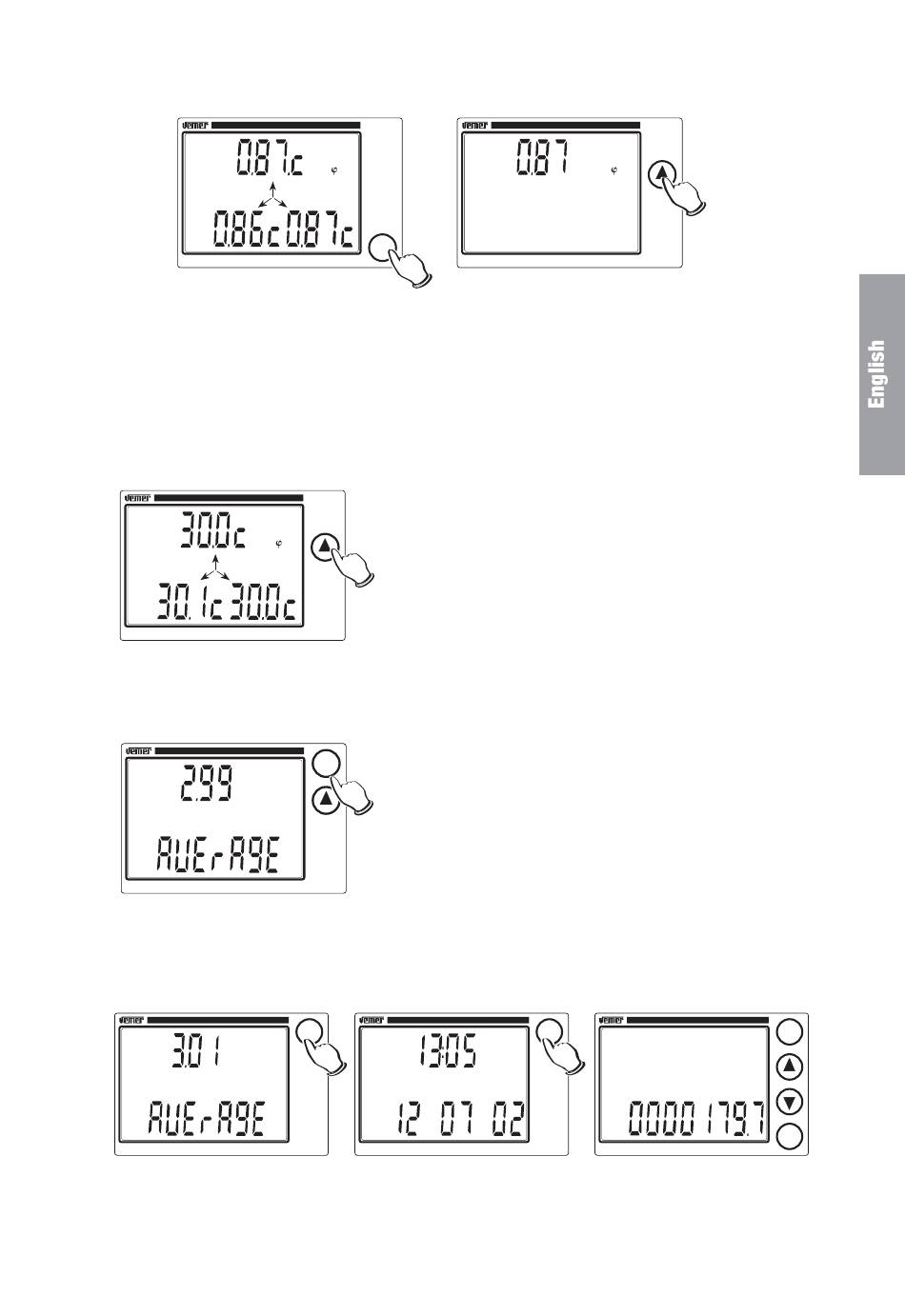

9) Phase power factor page
3
• The phase power factors are displayed (the letter "C" indicates a capacity
phase shift and the letter "L" an inductive phase shift)
• Press "T" to display the system power factor
10) Voltage-current phase shift page
1
3 2
11) Mean active system power rating page
POWER
ACTIVE
11a) Mean active power rating peak value page
k W
POWER
ACTIVE
• The same procedure as the display of the phase voltage peak values
➧
cos
1
2
T
pK
k W
➧
pK
W
ACTIVE
User Manual ADR-out Network Analyser
cos
• The voltage-current phase shifts
are displayed in sixtieth degrees
(the letter "C" indicates a capacity
phase shift and the letter "L"
an inductive phase shift)
• The active system power rating is
displayed over a mean of N minutes
(can be set from 1 to 60)
The default value is 15 min
➧
pK
h
POWER
ACTIVE
- 45 -
pK
h
POWER
