flashing digit or prefix "k" (flashing = deactivated, fixed = active)

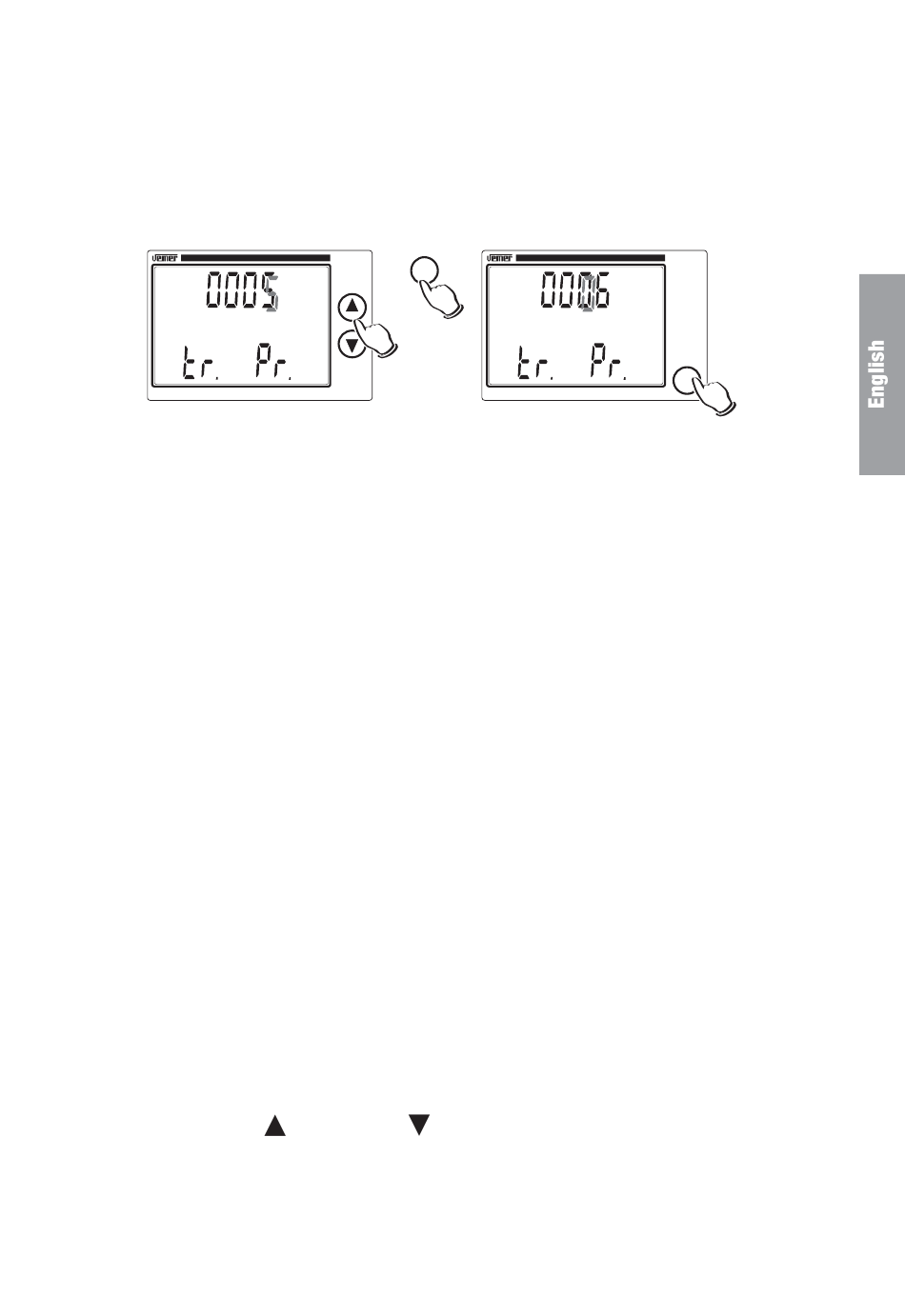

• To go to the next digit, press "pK"
• To confirm the value set and go to the next window, press "T"
TA setting
CURRENT
• Same procedure as TV setting
Note: for the primaries of the TV and TA, any value between 0001 and
9999 may be set. The secondaries are set to 230V and 5A respectively.
For the TV primary, it is also possible to set a value between 10kV and
65kV.
■ When "T" is pressed, all the symbols of the display will come on for approximately
3 seconds, followed by the display of the output relay status page.
Note: if the power is cut off during programming, the instrument will
memorise all the settings up to the moment when this occurs.
Programming in normal operation
■ Access to the programming menu in normal operation is gained by holding the
"pK" key down for approximately 3 seconds.
■ The parameters that can be set by the user are the following, in order:
• Date/time
• Relay output 1 programming (see page 8)
• Relay output 2 programming (see page 8)
• Integration time for the calculation of the integral mean of the power ratings
• Display rear lighting management
• Zeroing of active energy meters
• Zeroing of reactive energy meters
• Zeroing of peaks
• Change of protection password
■ Press the "up" ( ) or "down" ( ) keys to scroll through the setting menus
Press "T" from the end menu to leave the programming
(this takes place automatically if no key is pressed for approximately 60 seconds)
➧
➧
