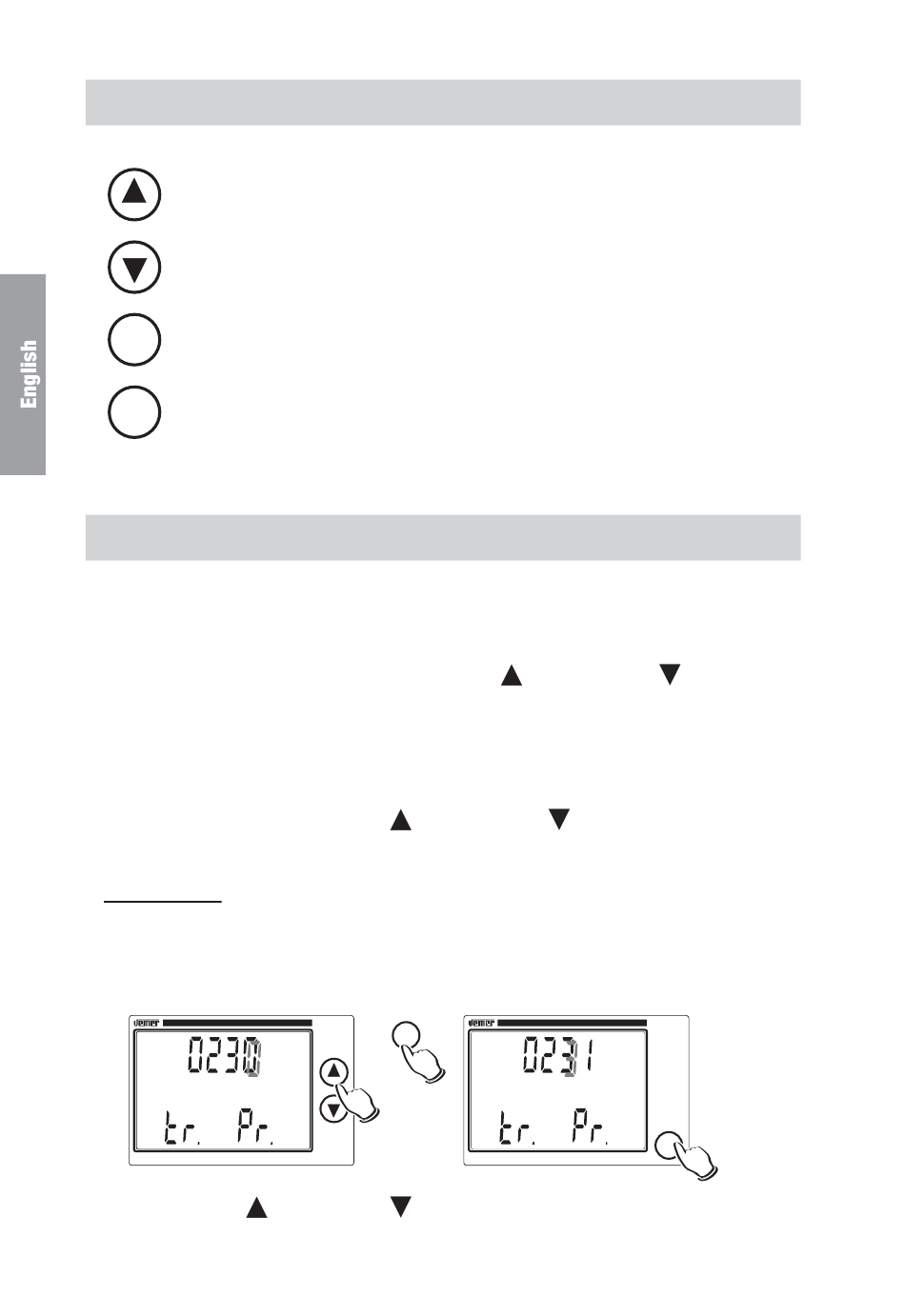

Setting The Parameters - Vemer ADR Serie ADR-R-out Bedienungsanleitung

Scroll to the next page and parameter setting
Scroll to the previous page and parameter setting
T
Display of the system values
pK
Display of the peak values to be measured and selection
of the parameters in the programming stage
First installation programming
■ To gain access to the first installation programming menu, the instrument
has to be powered by holding down the "up" ( ) and "down" ( ) keys
together until the display is lit up
■ The parameters that can be programmed by the user are the following, in order:
• Primary TV (fixed secondary 230 V)
• Primary TA (fixed secondary 5 A)
■ For a new parameter setting, the instrument should be switched off then on
again by holding down the "up" ( ) and "down" ( ) keys together until the
display is lit up
Important
: before switching the instrument off, disconnect the
measurement (current and voltage)
TV setting
VOLTAGE
• Press the "up" ( ) or "down" ( ) keys to select the required value of the
KEYS

SETTING THE PARAMETERS

➧
pK
v
- 32 -
User Manual ADR-out Network Analyser
➧
VOLTAGE
v
T
