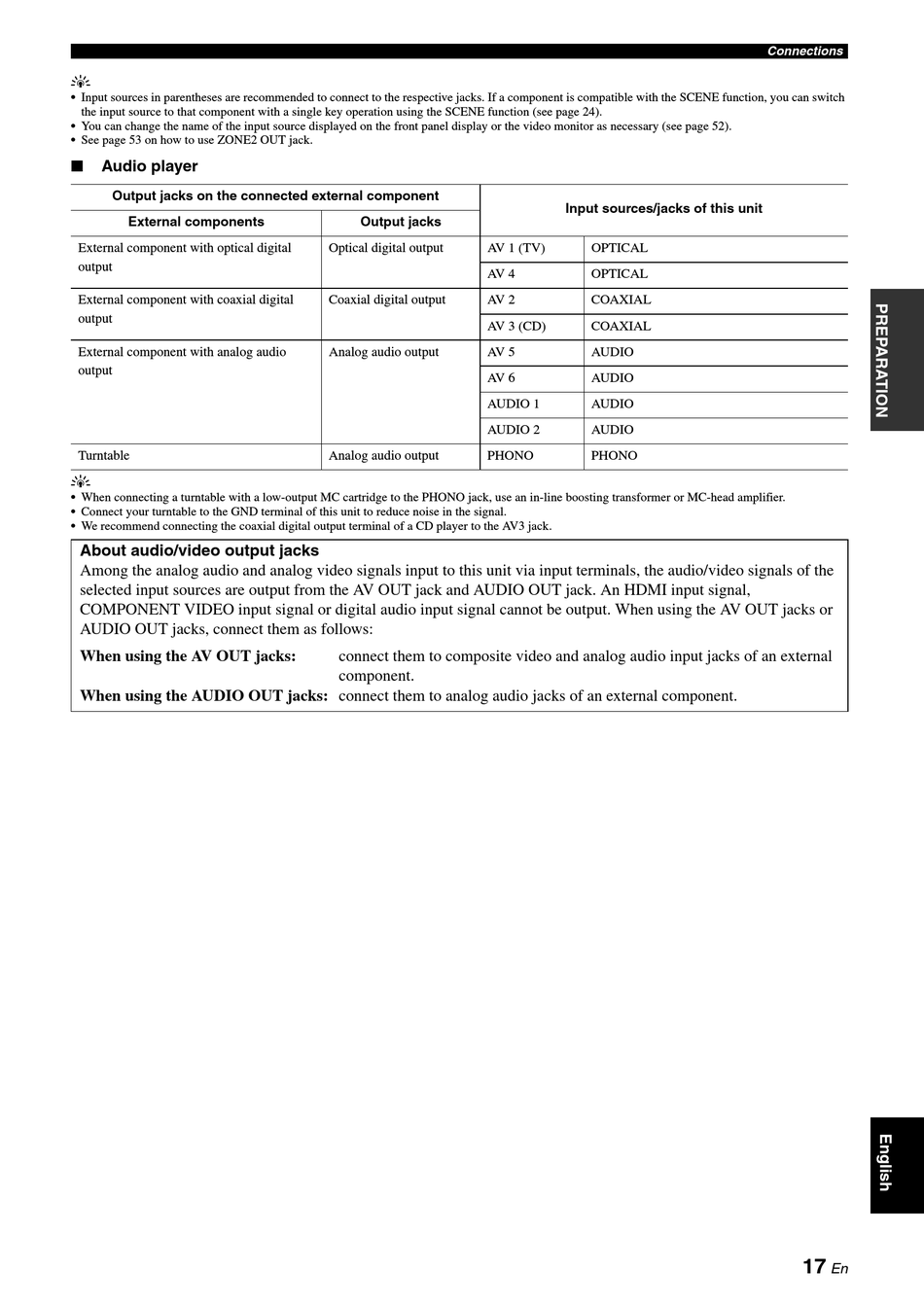

y
• Input sources in parentheses are recommended to connect to the respective jacks. If a component is compatible with the SCENE function, you can switch
the input source to that component with a single key operation using the SCENE function (see page 24).
• You can change the name of the input source displayed on the front panel display or the video monitor as necessary (see page 52).
• See page 53 on how to use ZONE2 OUT jack.
■
Audio player
Output jacks on the connected external component
External components
External component with optical digital
output
External component with coaxial digital
output
External component with analog audio
output
Turntable
y
• When connecting a turntable with a low-output MC cartridge to the PHONO jack, use an in-line boosting transformer or MC-head amplifier.
• Connect your turntable to the GND terminal of this unit to reduce noise in the signal.
• We recommend connecting the coaxial digital output terminal of a CD player to the AV3 jack.
About audio/video output jacks
Among the analog audio and analog video signals input to this unit via input terminals, the audio/video signals of the
selected input sources are output from the AV OUT jack and AUDIO OUT jack. An HDMI input signal,
COMPONENT VIDEO input signal or digital audio input signal cannot be output. When using the AV OUT jacks or
AUDIO OUT jacks, connect them as follows:
When using the AV OUT jacks:
When using the AUDIO OUT jacks: connect them to analog audio jacks of an external component.
Output jacks
Optical digital output AV 1 (TV)
AV 4
Coaxial digital output AV 2
AV 3 (CD)
Analog audio output AV 5
AV 6
AUDIO 1
AUDIO 2
Analog audio output PHONO
connect them to composite video and analog audio input jacks of an external
component.
Input sources/jacks of this unit
OPTICAL
OPTICAL
COAXIAL
COAXIAL
AUDIO
AUDIO
AUDIO
AUDIO
PHONO
Connections
17
En
