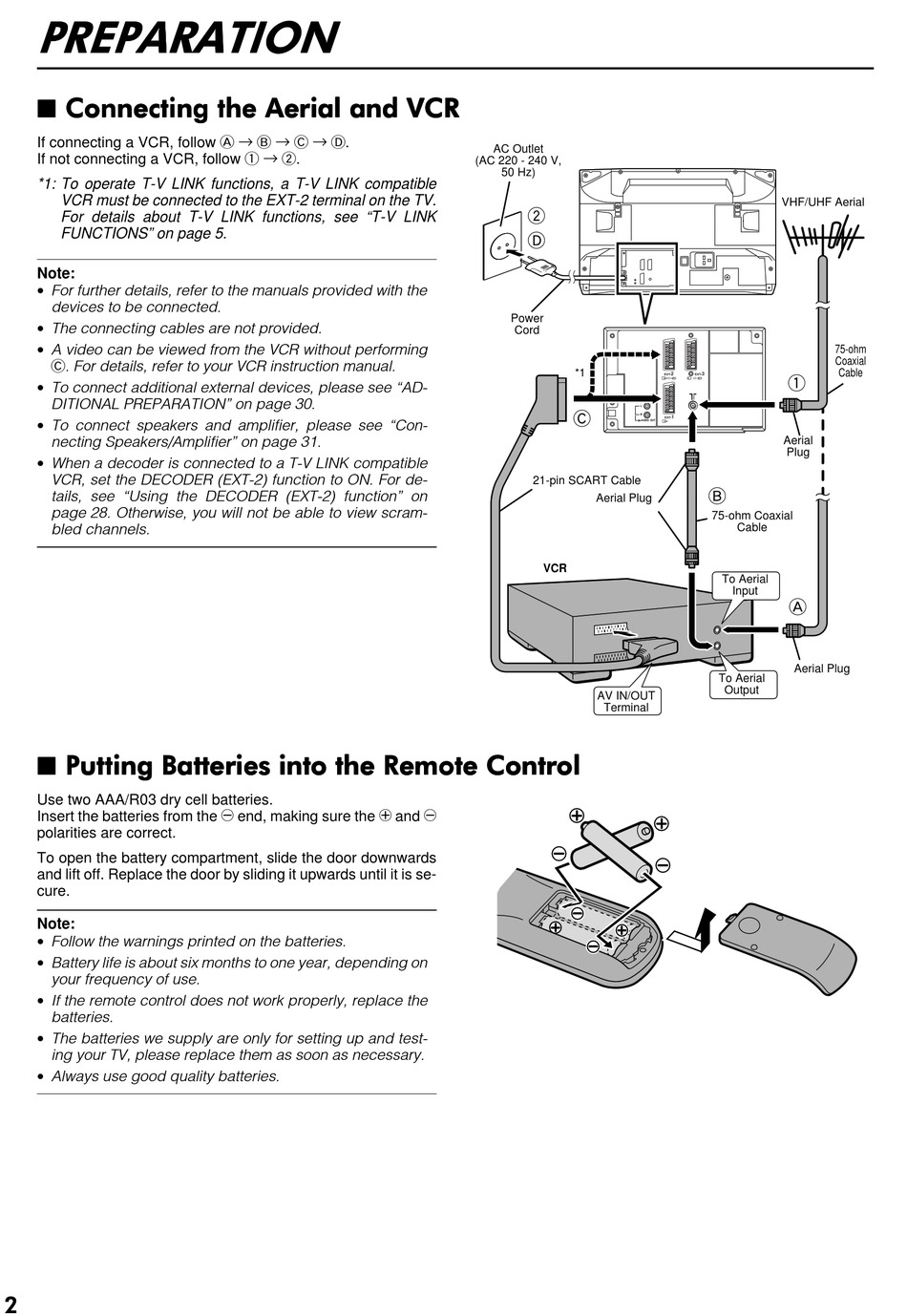

If connecting a VCR, follow A → B → C → D.
If not connecting a VCR, follow 1 → 2.
*1: To operate T-V LINK functions, a T-V LINK compatible
VCR must be connected to the EXT-2 terminal on the TV.
For details about T-V LINK functions, see "T-V LINK
FUNCTIONS" on page 5.
Note:
• For further details, refer to the manuals provided with the
devices to be connected.
• The connecting cables are not provided.
• A video can be viewed from the VCR without performing
C. For details, refer to your VCR instruction manual.
• To connect additional external devices, please see "AD-
DITIONAL PREPARATION" on page 30.
• To connect speakers and amplifier, please see "Con-
necting Speakers/Amplifier" on page 31.
• When a decoder is connected to a T-V LINK compatible
VCR, set the DECODER (EXT-2) function to ON. For de-
tails, see "Using the DECODER (EXT-2) function" on
page 28. Otherwise, you will not be able to view scram-
bled channels.





Use two AAA/R03 dry cell batteries.
Insert the batteries from the
end, making sure the  and

polarities are correct.
To open the battery compartment, slide the door downwards
and lift off. Replace the door by sliding it upwards until it is se-
cure.
Note:
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on
your frequency of use.
• If the remote control does not work properly, replace the
batteries.
• The batteries we supply are only for setting up and test-
ing your TV, please replace them as soon as necessary.
• Always use good quality batteries.







AC Outlet
(AC 220 - 240 V,
50 Hz)
Power
Cord


*1
2 3
EXT- EXT-
S S
L
R
1
EXT-
AUDIO OUT
21-pin SCART Cable
Aerial Plug
VCR
AV IN/OUT
Terminal
VHF/UHF Aerial
75-ohm
Coaxial
Cable
Aerial
Plug
75-ohm Coaxial
Cable
To Aerial
Input
Aerial Plug
To Aerial
Output
