25. Blade
Fixing Nut 26. Blade Fixing
Spring Washer
27. Blade Fixing
Flat Washer
29. Blade
28. Blade
Holder
30. Blade
Fixing Screws

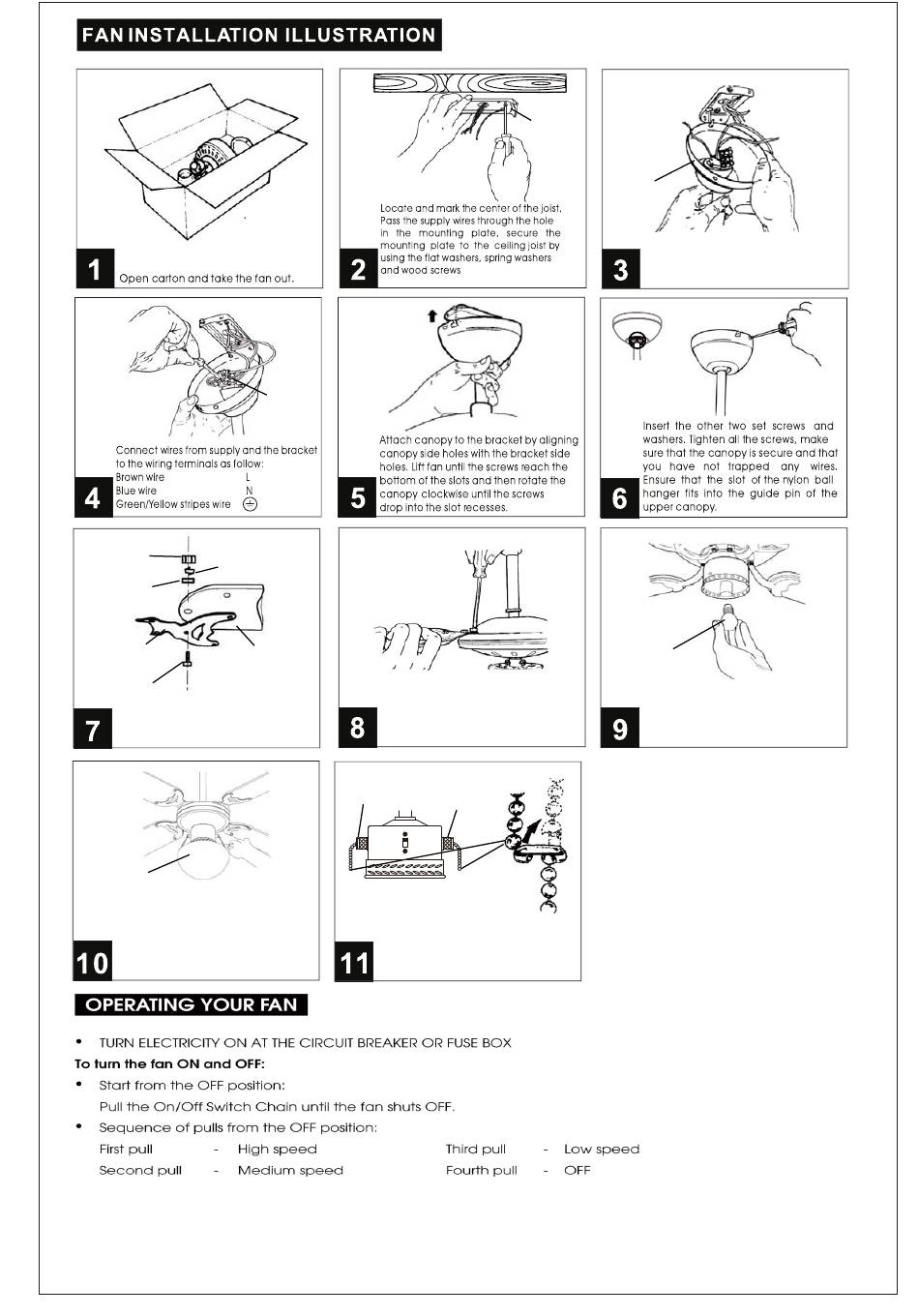

Assemble blade holder onto the blades
by tightening the screws, flat washer,
spring washers and nuts together.
36. Glass Shade
Install the glass shade onto the switch
housing by tightening the three thumb
screws. CAUTION: Do not use pliers to
tighten the thumbscrews. Over
tightening of the thumb screws may
crack the glass shade and cause
dangers.
provided) for concrete).
18.Terminal
Block
Fasten the blade sets on the motor with
the screws and spring washers already
attached to the motor.
13. Lamp switch
32. Fan switch
Attach pull cords on fan switch and
lamp switch,ensure that the pull cord
retaining clips supports the cord.
17. Mounting
plate
20. Canopy
(Using explosion screws(not
Hang the fan onto the bracket
hook by using one of the holes at
the top of the upper canopy.
16. Bulb
(not provided)
Install light bulbs (Max.E27 60W,not
supplied) tothe lamp holder.Switch the
power on to check the operation of the
lamp kit and fan.
