RHEINZINK-CLIPFIX
INSTALLATION WITH CLIPFIX
2.4

Installation Fixed Clip

GB

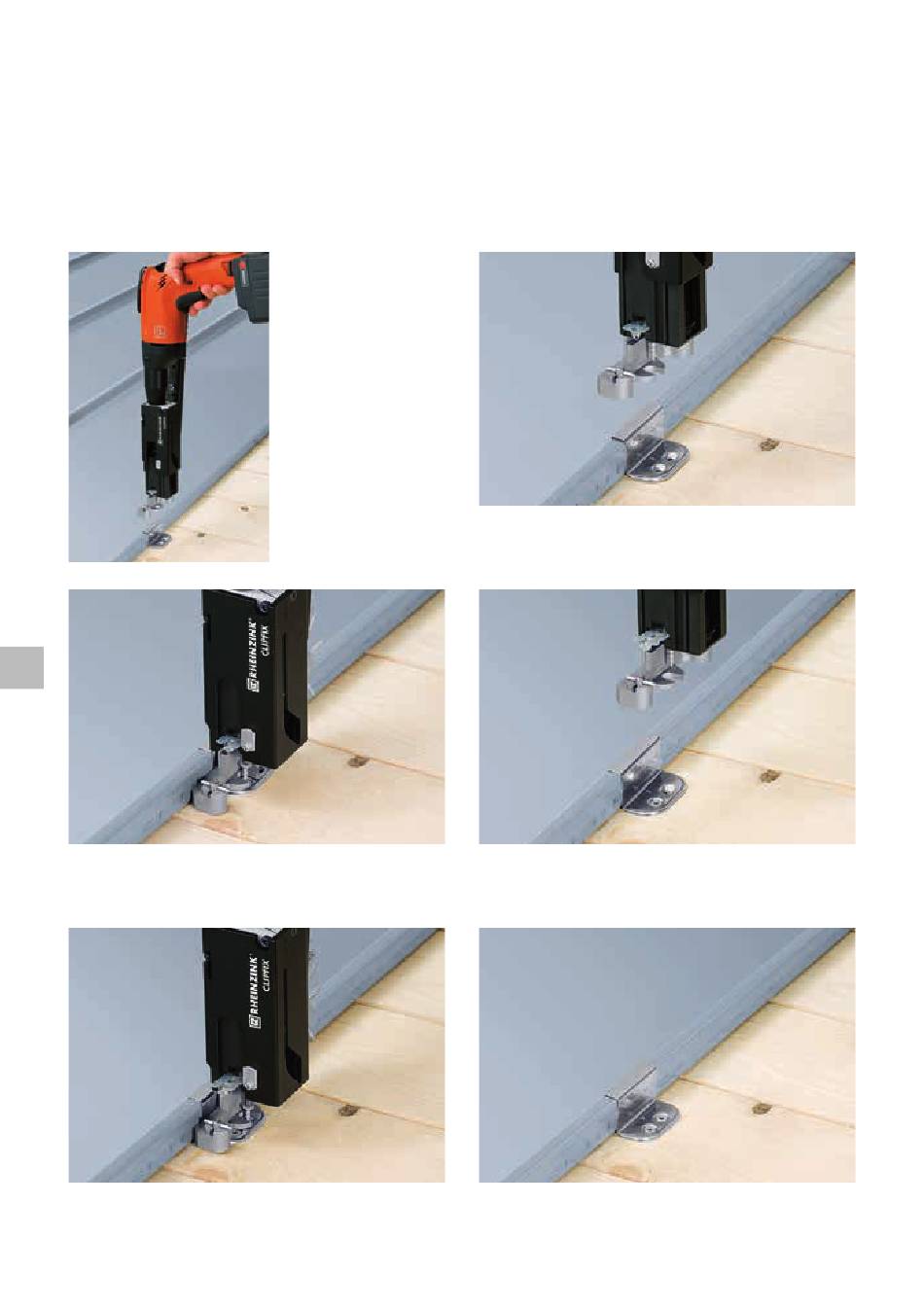

3. Press the clip against the seam while
screw in the left screw with sufficient force
5. Place the tool again on the right-sided
halfround edge of the clip
22|23
1. Put the
CLIPFIX-Tool/
screwdriver verti-
cally on the fixed
clip. Edge of the
CLIPFIX-tool and
edge of the clip
are flush.
2. Place the tool exactly on the left-sided
halfround edge of the clip
4. Remove the tool/screwdriver head
6. Proper mounting with two flush screws
