INSTALLATION WITH CLIPFIX
2.2

Installation Sliding Clip

GB
3. Press the clip against the seam while
screwing with sufficient force on left side
5. Put the left adjustment pin again on the
centre hole
20|21

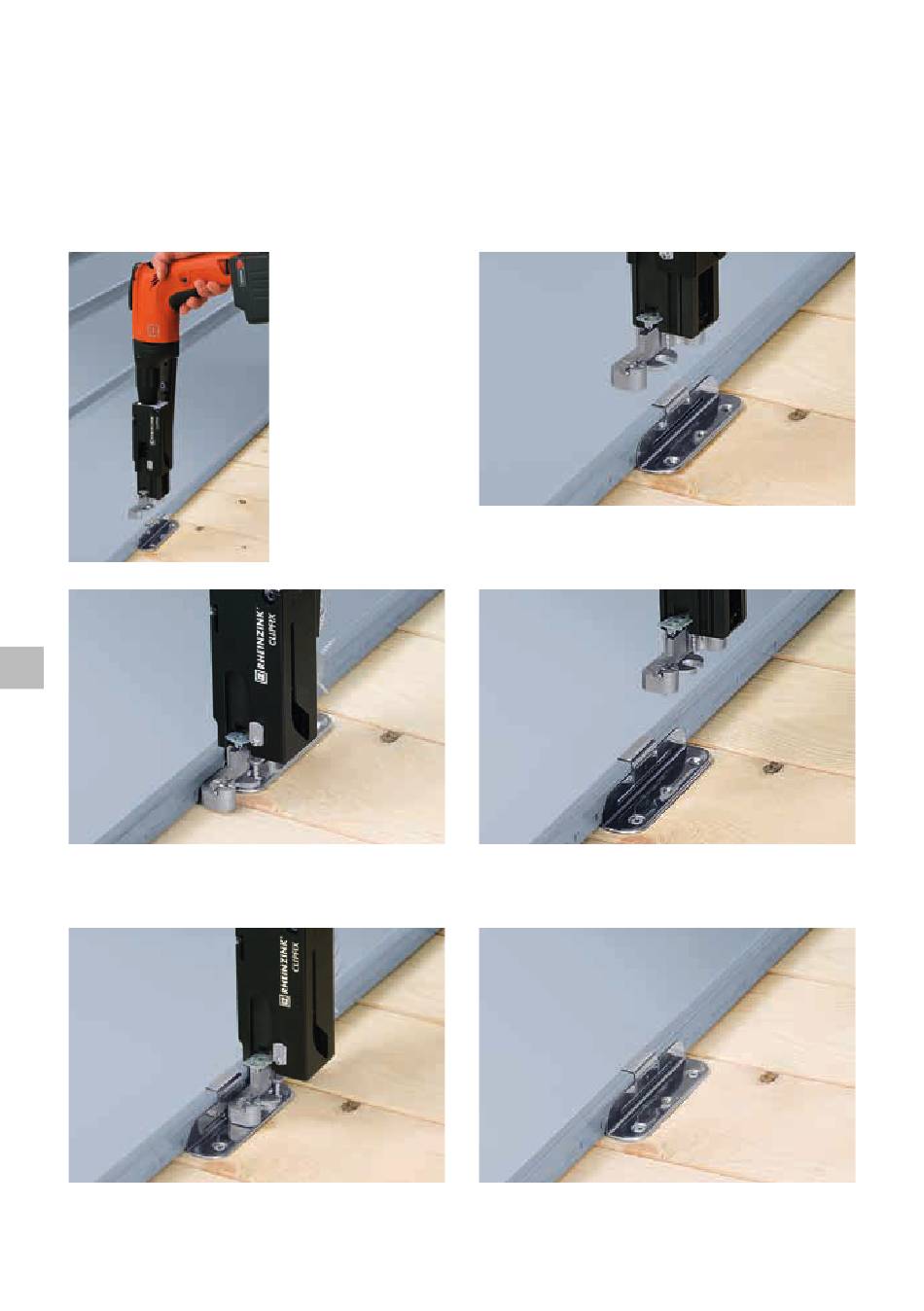

1. Put the
CLIPFIX-Tool/
screwdriver verti-
cally on the slid-
ing clip. Edge of
the CLIPFIX-tool
and edge of the
clip are flush.
2. The right adjustment pin needs to be
placed exactly on the centre hole
4. Remove the tool
6. Proper mounting with two flush screws
