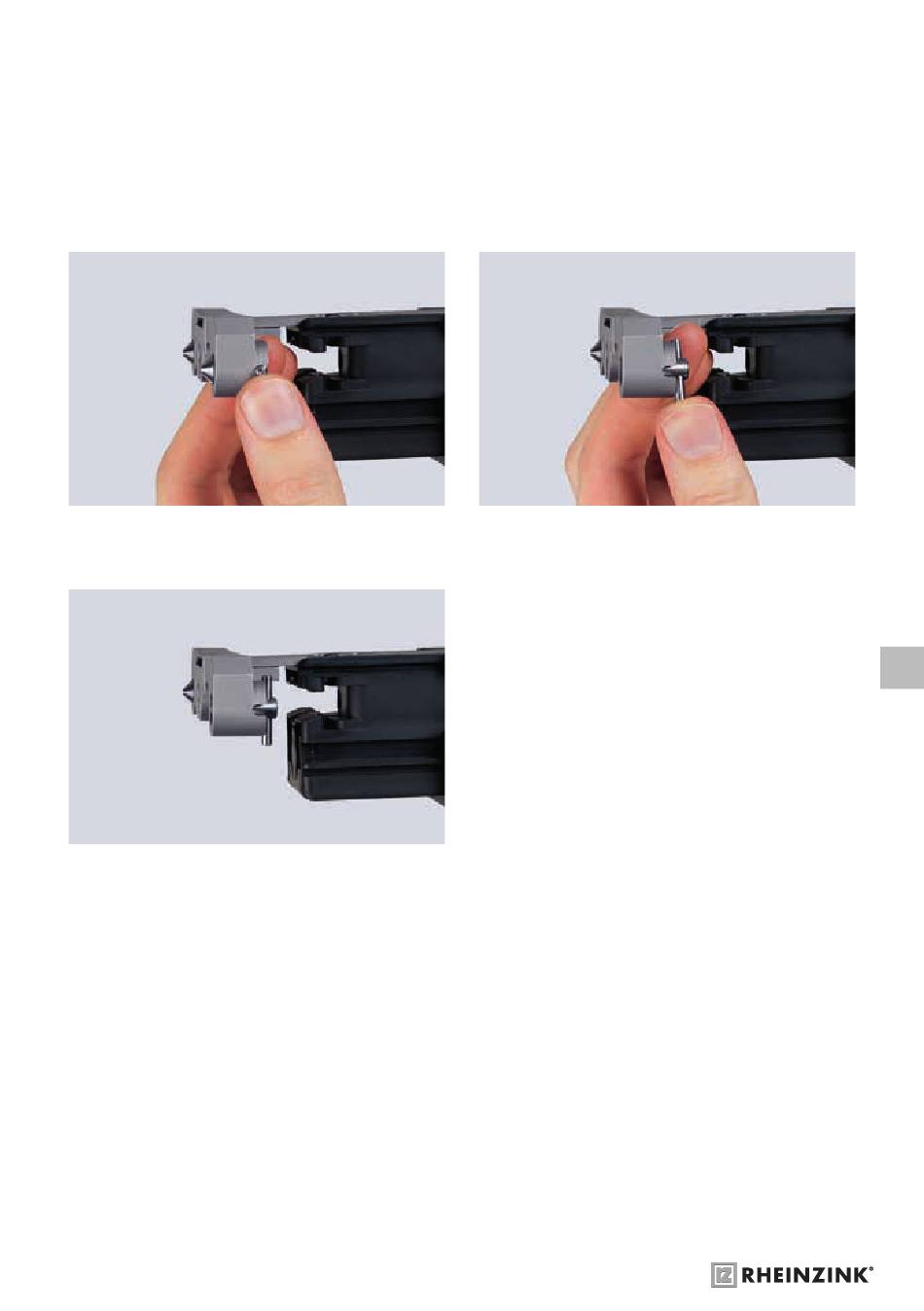

2.3 Adjustment of the CLIPFIX-Tool for the Installation of fixed Clips
1. Pull up split and adjustment pin
3. Let it click into place
The adjustment pins are not needed for the
installation of RHEINZINK-Fixed Clips. The
above- mentioned description shows how to
prepare the tool for a further smooth hand-
ling.
INSTALLATION WITH CLIPFIX
2. Turn split pin by 90°
For the installation of RHEINZINK-Sliding
Clips the adjustment pins have to be repo-
sitioned.
