THE REMOTE CONTROL SYSTEM

Here you get an overview of the remote control system of the Radicator 3.0 and its various functions and settings. Before
the fi rst trip you should be sure all of these functions and settings have read and understood.

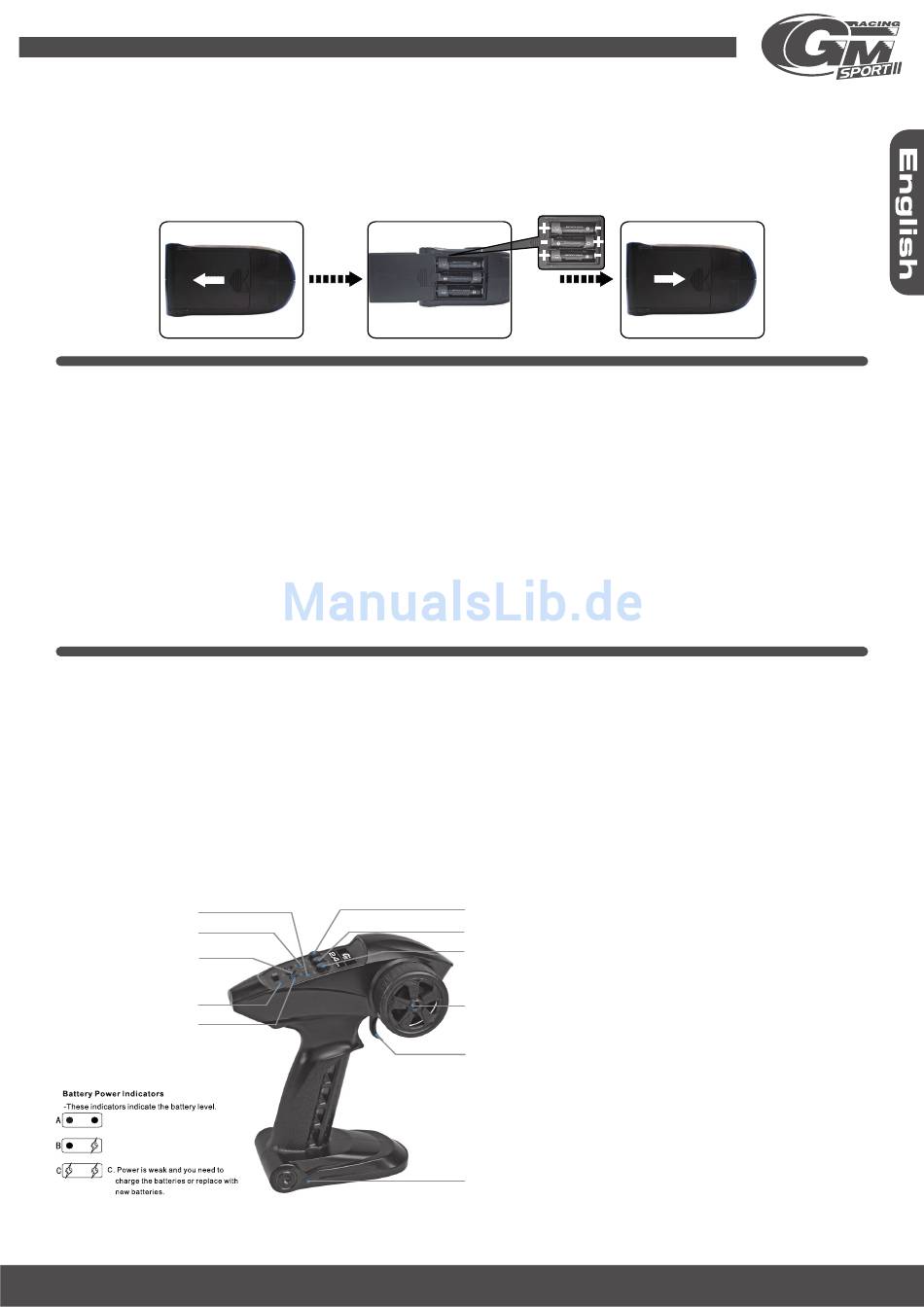

Place 3 AA batteries in the battery compartment of the transmitter. Pay attention to the polarity!
BINDING:
The receiver must be „connected" with a transmitter so that it communicates only with this transmitter. This process
is called binding and is only required once for each new transmitter / receiver combination (and can always be repea-
ted).
The Radicator 3.0 models are shipped already bound, should be a renewed binding necessary, proceed as follows:
• Make sure that no other 2.4GHz network (WLAN) in the immediate vicinity sends.
• The distance between tranmitter - model should not exceed 1 m.
• Switch on the vehicle, the red LED on the receiver starts to fl ash for approx. 5 seconds. Within these 5 sec. do the
following:
• Press and hold the bind button on the transmitter, switch on the transmitter. Now release the bind button, the green
LED begins to fl ash.
• After about 5 seconds all LED's (transmitter, receiver) light up permanently, the transmitter is now bound to the ve-
hicle.
• If the LED's still fl ashes, repeat the process.
REMOTE CONTROL (TRANSMITTER)
1. ON / OFF switch: Turns the power on/off
2. Steering wheel: Controls direction (left/right) of the model
3. Steering trim: Adjusts the "hands off" direction of the model
4. EPA steering: to set the maximum steering angle
5. Throttle Trigger: Controls speed (forward/brake/reverse) of the model
6. Throttle Trim: Adjusts the motor speed to stop at neutral
7. Control light: indicates adequate battery power
The remote control system of the Radicator 3.0 is optimally adjusted by the factory. Nevertheless you should read the
following chapter, maybe slight adjustments on the remote control should be necessary.
Servoreverse throttle
Servoreverse steering
Bind-Button
ON/OFF-Switch
Power Indicator
A. Full Power (red and green)
B. Stop running (green flashing)
flashing
GM-Racing Radicator 3.0 Buggy - Truggy - Monster Truck
+
-
+
-
+ -
The adjuster for throttle trim, the servo reverse
Steering trim
switches for the steering and throttle need not
EPA steering
be adjusted. But should have been adjusted
Throttle trim
somewhat by accident, here are the correct
settings:
• Throttle: neutral (horizontal mark on adjus-
ting knob)
Steering wheel
• Servo Reverse Steering: Switch in left po-
sition
Throttle trigger • Servo Reverse Gas: Switch in left position
Battery case
12
